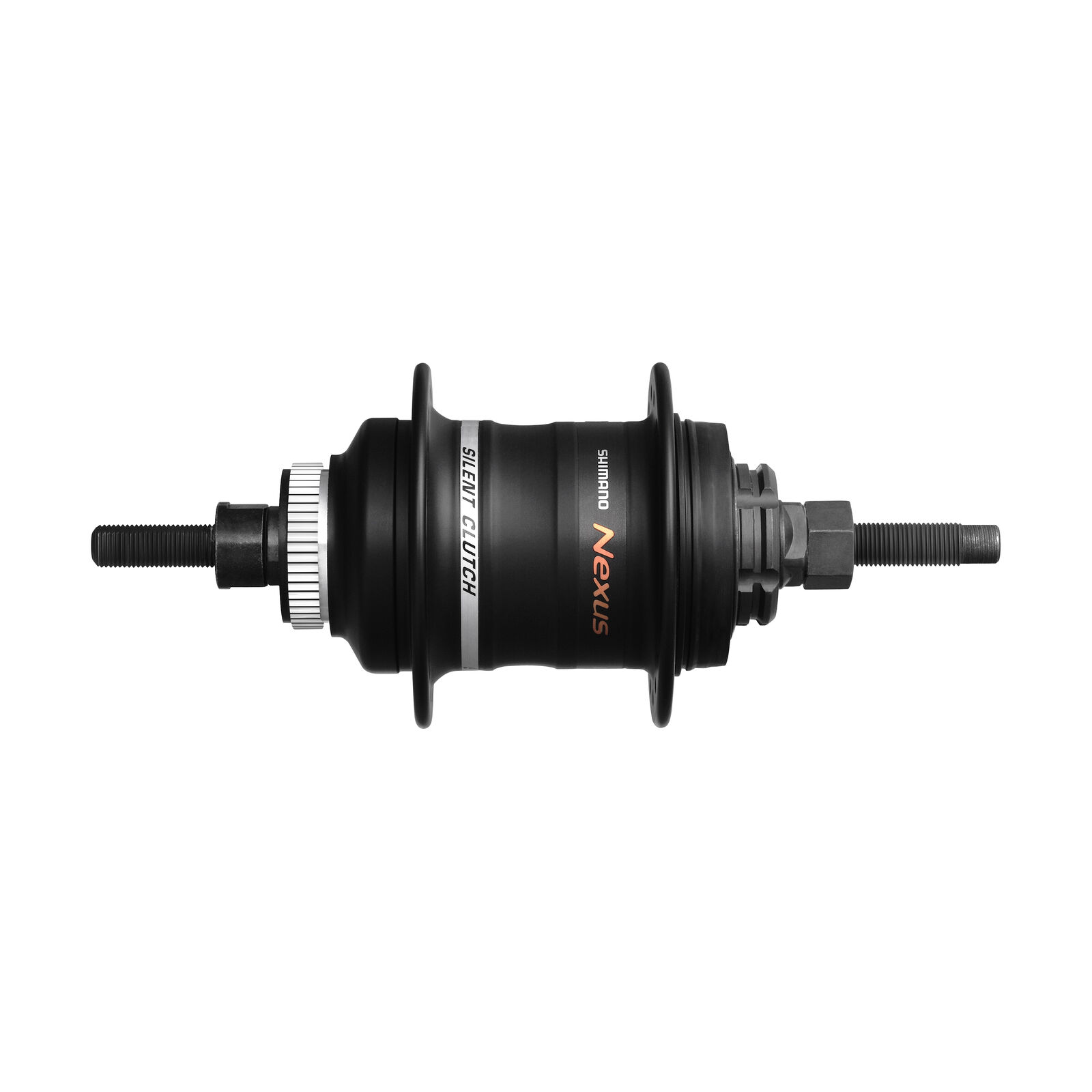

Shimano Nexus SG-3D55 3-Speed Internally Geared Disc Brake Hub (Centre Lock)
SKU code: SHM-ASG3D55ALX
Sold Out
Smooth, low-maintenance shifting sealed inside the hub shell, the Shimano Nexus SG-3D55 brings reliable 3-speed internal gearing to commuter and urban bikes set up for disc brakes. With a fully enclosed mechanism and a Centre Lock rotor interface, it keeps the rear of your bike clean, simple and ready for everyday riding in all weather.
Highlights
- 3-speed internally geared hub with a 186% gear range for easy starts and comfortable cruising
- Sealed internal gearing shifts even at a standstill, ideal for stop-start city riding
- Centre Lock disc rotor mount for fast, secure rotor installation
- Enclosed mechanism resists dirt, water and grime for low maintenance
- 135 mm rear spacing with a solid axle suits a wide range of commuter and urban frames
Effortless internal gearing
Three evenly spaced gears give you a 186% range, from a low ratio for pulling away at the lights to a taller gear for holding speed. Because the gears live inside the hub, you can change gear while stopped, so you are always in the right ratio when the light turns green.
Built for disc brakes
The Centre Lock interface lets you fit a Centre Lock rotor with a splined mount and lock ring, making rotor installation and removal quick and secure. The disc rotor is not included.
Clean and low maintenance
Sealing the drivetrain inside the hub shell protects it from the elements and means there is no exposed cassette or derailleur to adjust, clean or replace, an ideal match for daily commuting.
Compatibility & fit
Designed for rear wheels with 135 mm over-locknut spacing and a solid (bolt-on) axle measuring 192.6 mm. The hub ships with a 19T sprocket, push rod, hub nuts, dust cap and non-turn washer. A compatible Nexus 3-speed shifter and the corresponding shifting unit are required to operate the hub and are sold separately. The Centre Lock disc rotor is also sold separately.
This Shimano Nexus SG-3D55 hub is covered by Shimano's manufacturer warranty against defects in materials and workmanship. The warranty does not cover normal wear and tear, improper installation or servicing, or damage caused by use outside the product's intended commuter and urban application (the hub is not designed for off-road use).
For warranty support, return the item to Tune Cycles and we'll manage the claim for you.
This warranty is in addition to your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
- 3-speed internally geared rear hub (Nexus Inter-3 family)
- 186% total gear range (1st 0.733, 2nd 1.00 direct drive, 3rd 1.36)
- Shifts while stationary, suited to stop-start commuting
- Centre Lock disc brake rotor interface
- Sealed internal mechanism for low maintenance and weather resistance
- 135 mm rear over-locknut spacing
- Solid (bolt-on) axle, 192.6 mm length
- Supplied with 19T sprocket, push rod, hub nuts, dust cap and non-turn washer
- Black finish
| Brand | Shimano |
|---|---|
| Series | Nexus (Inter-3) |
| Model | SG-3D55 |
| Type | Rear internally geared hub |
| Speeds | 3-speed |
| Gear range | 186% |
| Gear ratios | 1st 0.733 / 2nd 1.00 (direct drive) / 3rd 1.36 |
| Brake interface | Disc, Centre Lock |
| Over-locknut spacing (OLD) | 135 mm |
| Axle type | Solid (bolt-on) |
| Axle length | 192.6 mm |
| Sprocket (included) | 19T |
| Included parts | 19T sprocket, push rod, hub nuts, dust cap, non-turn washer |
| Colour | Black |
| SKU | SHM-ASG3D55ALX |
