Shimano LINKGLIDE 9-Speed eBike Overhaul Kit (CUES U4000)
Every CUES U4000 LINKGLIDE wear part in one bundle
SKU code: SHM-LG9-OVERHAUL
In Stock
Every wear part on a Shimano CUES U4000 LINKGLIDE 9-speed LINKGLIDE e-bike drivetrain, in one box. When the cassette, chain, rotors, pads are due at the same time, this kit replaces the lot in one go rather than piecing the order together part by part.
Highlights
- A complete drivetrain refresh: CUES CS-LG400-9 LINKGLIDE cassette, 9-speed
- Braking sorted at the same time: Shimano RT-CL700 Ice-Tech Centre Lock disc rotor, 180 mm (internal-serration lockring) (two) and two pairs of finned resin pads
- Genuine Shimano parts throughout, matched to the CUES U4000 LINKGLIDE series
- Sold as one fixed bundle at a single kit price

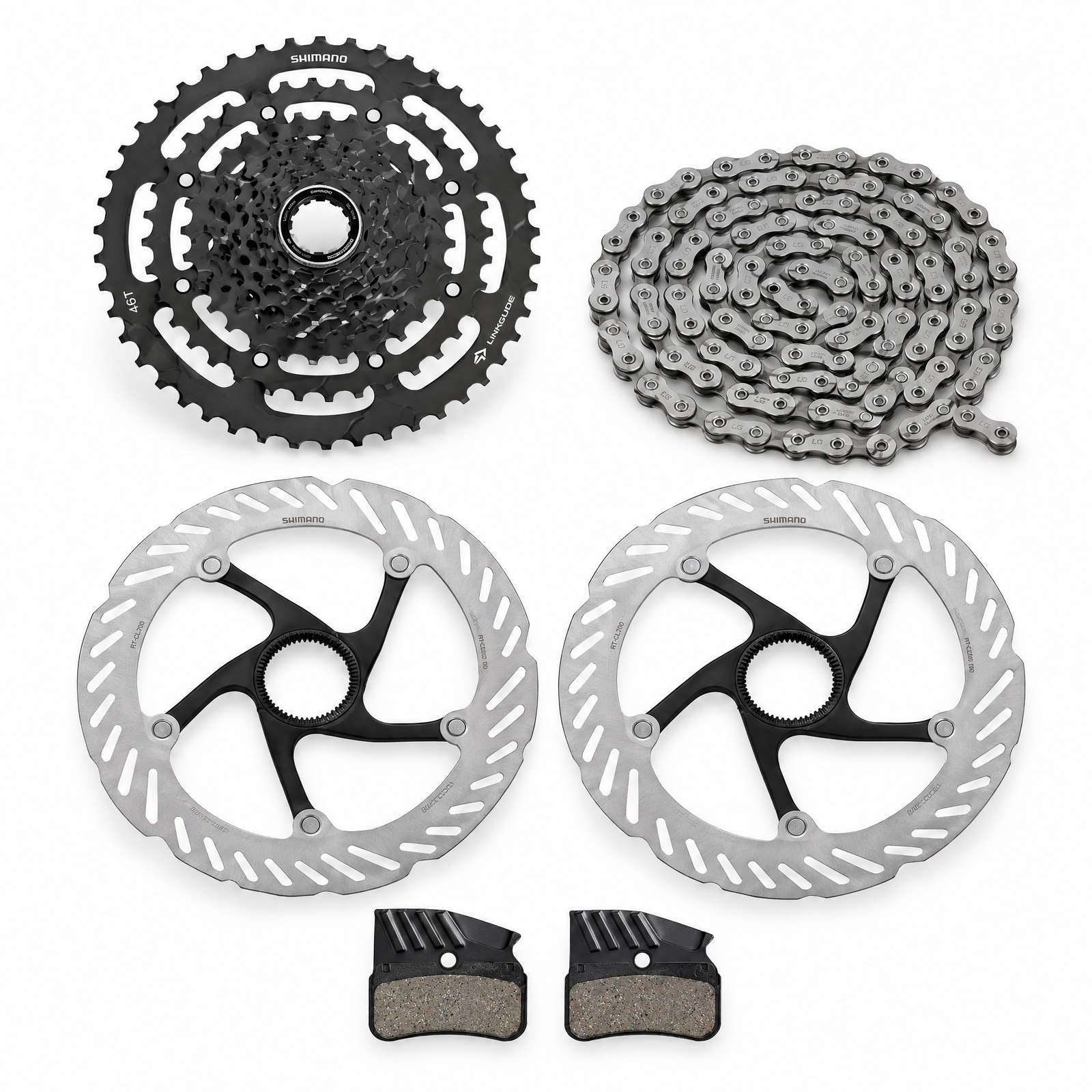

Kit includes
- 1 × Shimano CUES CS-LG400-9 LINKGLIDE cassette, 9-speed, 11-46T
- 1 × Shimano CN-LG500 LINKGLIDE chain, 126 links, with Quick Link
- 2 × Shimano RT-CL700 Ice-Tech Centre Lock disc rotor, 180 mm (internal-serration lockring)
- 2 × Shimano N03A-RF resin disc brake pads with cooling fin (two pairs, 4-piston, front and rear)
Why replace them together
A worn chain wears the cassette with it, so a new chain on old cogs skips and a new cassette on an old chain wears out early. Replacing them together is how Shimano intends the drivetrain to be serviced, and it keeps the shifting as sharp as the day the groupset was fitted. The rotors and pads follow the same logic: a fresh pad on a worn rotor beds in badly, and worn rotors are the usual cause of noise and fade on long descents.
Compatibility and fit
This kit is specified for a Shimano LINKGLIDE 9-speed e-bike drivetrain: CUES U4000 (RD-U4000 / RD-U4020) with 4-piston BR-U6020 / BR-U8020 brakes on Centre Lock hubs. The CS-LG400-9 fits a standard Shimano HG freehub body. LINKGLIDE cassettes need a LINKGLIDE chain, which is why the CN-LG500 is in the kit rather than an HG chain. The chainring is not included because on most e-bikes it is part of the motor's crank; the rotor pair suits a 180 mm front / 180 mm rear setup, both with internal-serration lockrings. The two pairs of N03A-RF pads fit 4-piston calipers; 2-piston CUES calipers take G-type or K-type pads instead. The kit contents are fixed, so if your bike runs different sizes or a different combination, get in touch before ordering and we will quote the right parts.
Every part in this kit is a genuine Shimano component and is covered by Shimano's manufacturer warranty against defects in materials and workmanship (two years from the date of purchase; spare parts such as pads and chainrings: Shimano's spare-parts warranty). Normal wear and tear, and damage from crashes, misuse or incorrect installation, are not covered. For any warranty claim, return the item to Tune Cycles and our team will manage the process with Shimano on your behalf.
- Complete wear-part refresh for a Shimano CUES U4000 LINKGLIDE 9-speed LINKGLIDE e-bike drivetrain
- CUES CS-LG400-9 LINKGLIDE cassette, 9-speed, 11-46T
- CN-LG500 LINKGLIDE chain, 126 links, with Quick Link
- RT-CL700 Ice-Tech Centre Lock disc rotor, 180 mm (internal-serration lockring) (x2)
- N03A-RF resin disc brake pads with cooling fin (two pairs, 4-piston, front and rear)
- Genuine Shimano parts, matched to the CUES U4000 LINKGLIDE series
- Fixed bundle, one kit price
| Brand | Shimano |
|---|---|
| Series | CUES U4000 LINKGLIDE (9-speed LINKGLIDE) |
| Kit type | Fixed bundle, 6 items |
| Cassette | 1 × Shimano CUES CS-LG400-9 LINKGLIDE cassette, 9-speed, 11-46T |
| Chain | 1 × Shimano CN-LG500 LINKGLIDE chain, 126 links, with Quick Link |
| Rotors | 2 × Shimano RT-CL700 Ice-Tech Centre Lock disc rotor, 180 mm (internal-serration lockring) |
| Brake pads | 2 × Shimano N03A-RF resin disc brake pads with cooling fin (two pairs, 4-piston, front and rear) |
| SKU | SHM-LG9-OVERHAUL |
| Brand | Shimano |
