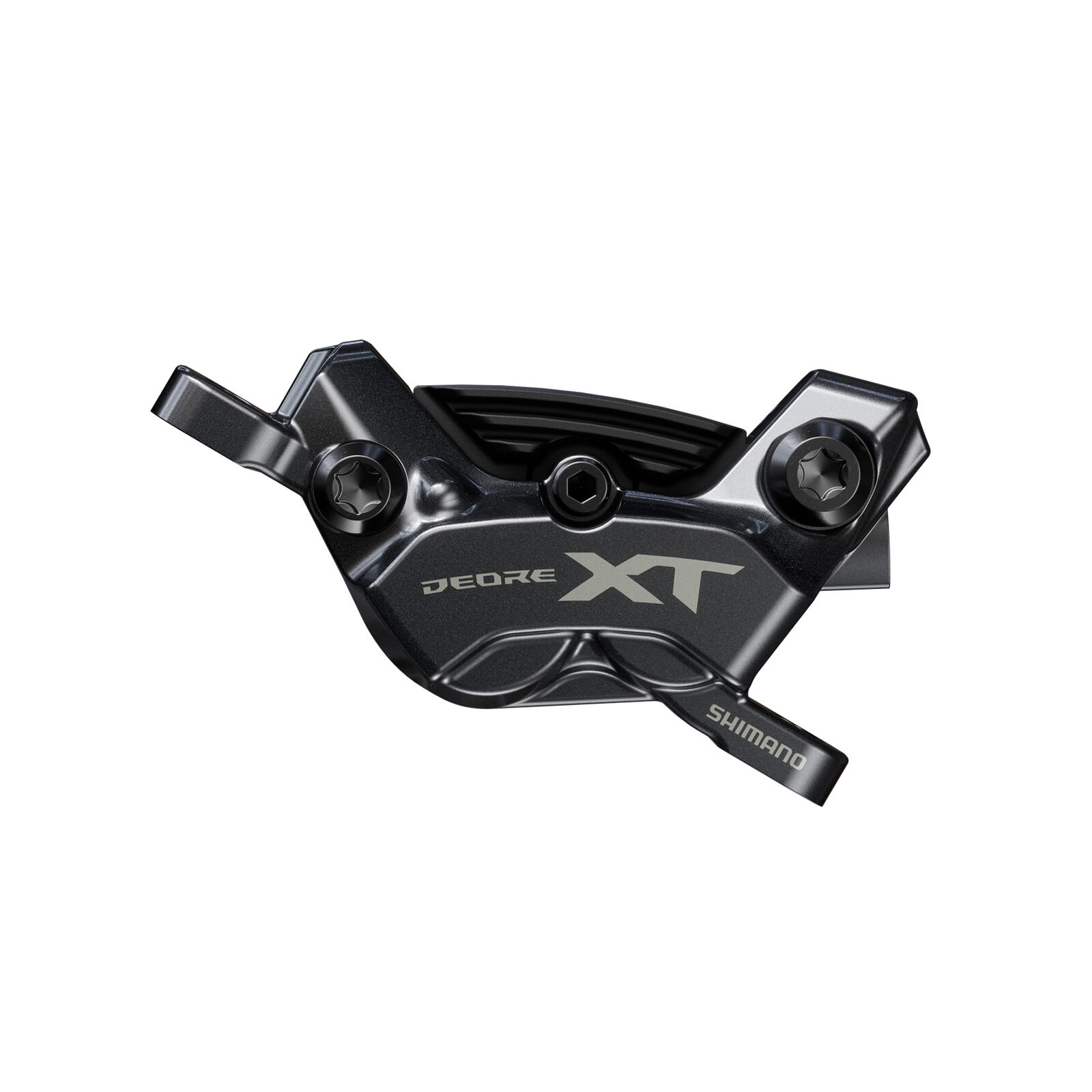

Shimano Deore XT BR-M8220 4-Piston Disc Brake Caliper, Resin Pad
SKU code: SHM-IBRM8220MPRF
The BR-M8220 is the four-piston caliper in Deore XT's M8200 family and the strongest in the range, built for riders who want more power and control on steep, rough mountain bike trails. This version comes with Shimano finned resin pads.
Highlights
- Four-piston power: a power curve Shimano developed for enduro racing and all-day trail riding
- Consistent bite point: updated seals and Shimano's low viscosity oil keep lever feel steady across temperatures and conditions
- Quieter on rough ground: revised pads and an oval mount reduce rattle
- Heat control: the finned pad carries an aluminium cooling fin
- Tunable feel: takes resin or metal, finned or non-finned Shimano pads
Why resin pads with fins
Resin pads give a quiet, progressive bite that is easy to modulate, and the fin draws heat away from the pad on long descents. If you want more outright power and fade resistance, Shimano's metal P04C-MF pad fits the same caliper.
Compatibility and fit
Post mount caliper for front or rear. Shimano pairs it with the Deore XT BL-M8200 lever and an SM-BH90-SBM hose with a banjo fitting. It is a Shimano low viscosity oil system: use it with a low viscosity oil lever such as the BL-M8200, and never bleed it with standard Shimano mineral oil. It takes 160, 180, 200, 203 and 220 mm rotors (not 140 mm), including 2.2 mm-thick RT-CL750 and RT-6B750 rotors, with the right mount adapter for your frame or fork. Shimano recommends RT-CL800, SM-RT86, RT-CL750 or RT-6B750 rotors, which suit both resin and metal pads. This listing is the caliper only.
Covered by Shimano's warranty against defects in materials and workmanship. Brake pads are a wear item: pad wear, contamination and damage from the wrong oil or incorrect bleeding are not covered. This cover is in addition to your rights under the Australian Consumer Law.
For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim with the distributor for you.
- Deore XT BR-M8220 hydraulic disc brake caliper
- Four resin pistons, two-piece aluminium caliper
- Post mount, front or rear
- Supplied with resin pads with cooling fins
- Shimano low viscosity oil system
- Banjo hose connection (SM-BH90-SBM)
- Takes 160 to 220 mm rotors, including 2.2 mm rotors
- ICE TECHNOLOGIES pad compatible
| Brand | Shimano |
|---|---|
| Series | Deore XT |
| Part number | BR-M8220 |
| Type | Hydraulic disc brake caliper |
| Position | Front or rear |
| Mount | Post mount |
| Pistons | 4 (resin) |
| Pads supplied | Resin with cooling fin |
| Alternative pads | P04C-MF metal (finned); N03A-RF, N04C-MF; D03S-RX, D02S-MX |
| Brake fluid | Shimano low viscosity oil |
| Recommended lever | BL-M8200 |
| Hose / connection | SM-BH90-SBM, banjo |
| Compatible rotor sizes | 160, 180, 200, 203, 220 mm |
| Rotor thickness | 1.75 mm standard or 2.2 mm |
| Recommended rotors | RT-CL800, SM-RT86, RT-CL750, RT-6B750 |
| Caliper body | Aluminium, painted |
| Caliper fixing bolts | Steel, 5 mm hex, snap-ring retained |
| Pad retention | Pad axle |
| SKU | SHM-IBRM8220MPRF |
| Barcode # | 4550170309701 |
| Brand | Shimano |
| Shipping Weight | 0.2500kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.060m |
| Shipping Length | 0.220m |
