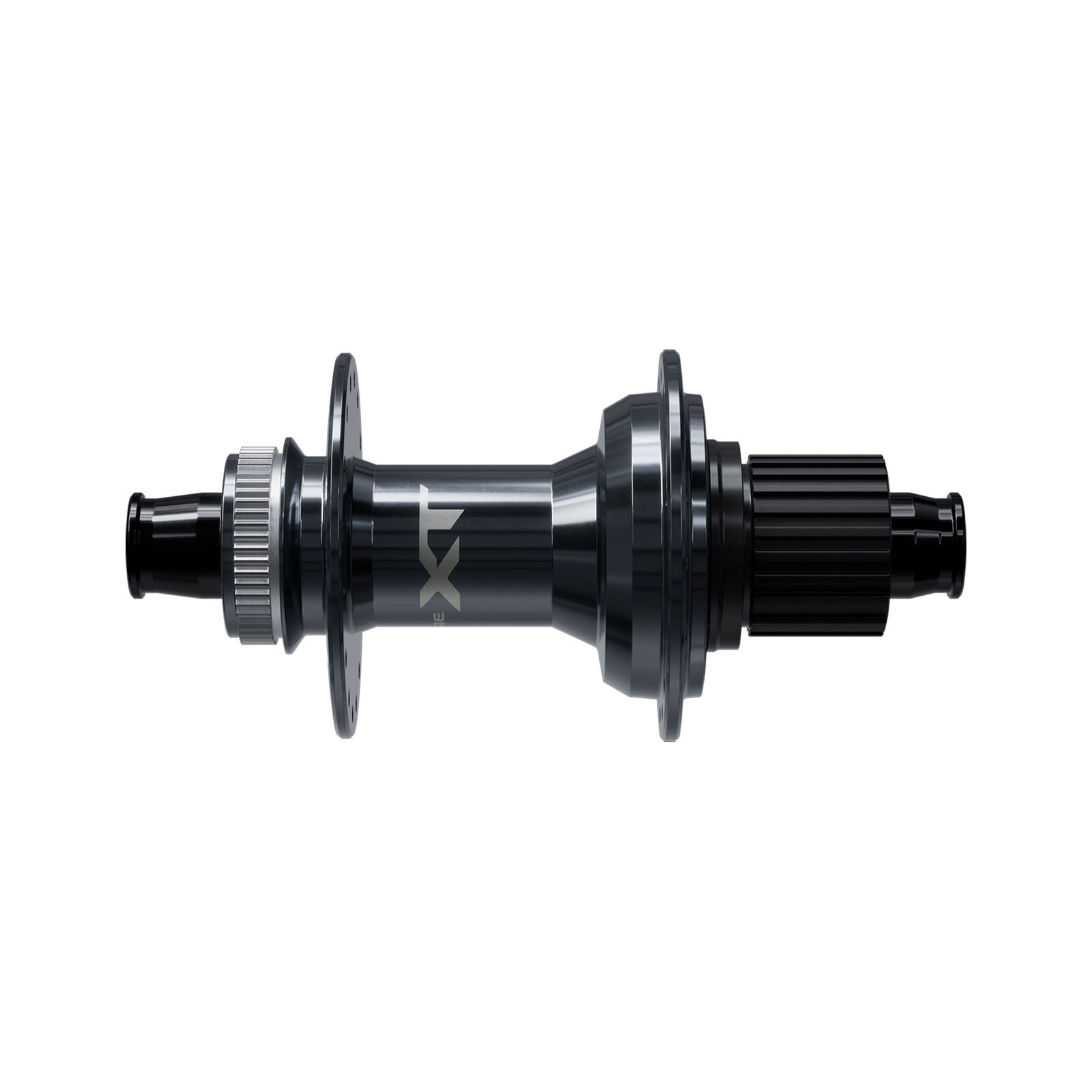

Quick to engage and easy to look after, the FH-M8210-B is Deore XT's rear hub for 12-speed mountain bike wheel builds. It pairs Shimano's Direct Engagement freehub with steel cartridge bearings in a 148 mm Boost, 32-hole shell.

Highlights

• Fast pickup: Direct Engagement with a maximum 3.5-degree engagement angle, so drive connects almost as soon as you push on the pedals
• Micro Spline freehub: takes Shimano 12-speed Micro Spline cassettes, including 10-tooth small cogs
• Sealed against the trail: labyrinth and contact seals on both the hub and freehub body keep water and grit out
• Easy to service: steel cartridge bearings with preload adjustment keep it rolling smoothly
• Center Lock rotor mount: spline fit and lock ring for quick, precise rotor fitting

Built for Boost frames

The 148 x 12 mm E-THRU spacing matches current Boost MTB frames, and 32-hole drilling suits a conventional, durable wheel build. Shimano designed the seals and bearings to reduce drag while coasting.

For wheel builders

Flange distance, offset, P.C.D. and flange diameters from Shimano's spec handbook are listed in the specifications table, so spoke lengths can be worked out before you order.

Compatibility and fit

Fits frames with 148 x 12 mm Boost rear spacing and a 12 mm thru axle; it does not suit 142 mm or 157 mm frames. The freehub takes 12-speed Micro Spline cassettes only, not HG-spline cassettes. Rotors mount via Center Lock: Shimano lists the hub as compatible with internal, external and dual-serration lock rings, and no lock ring is supplied with the hub.
