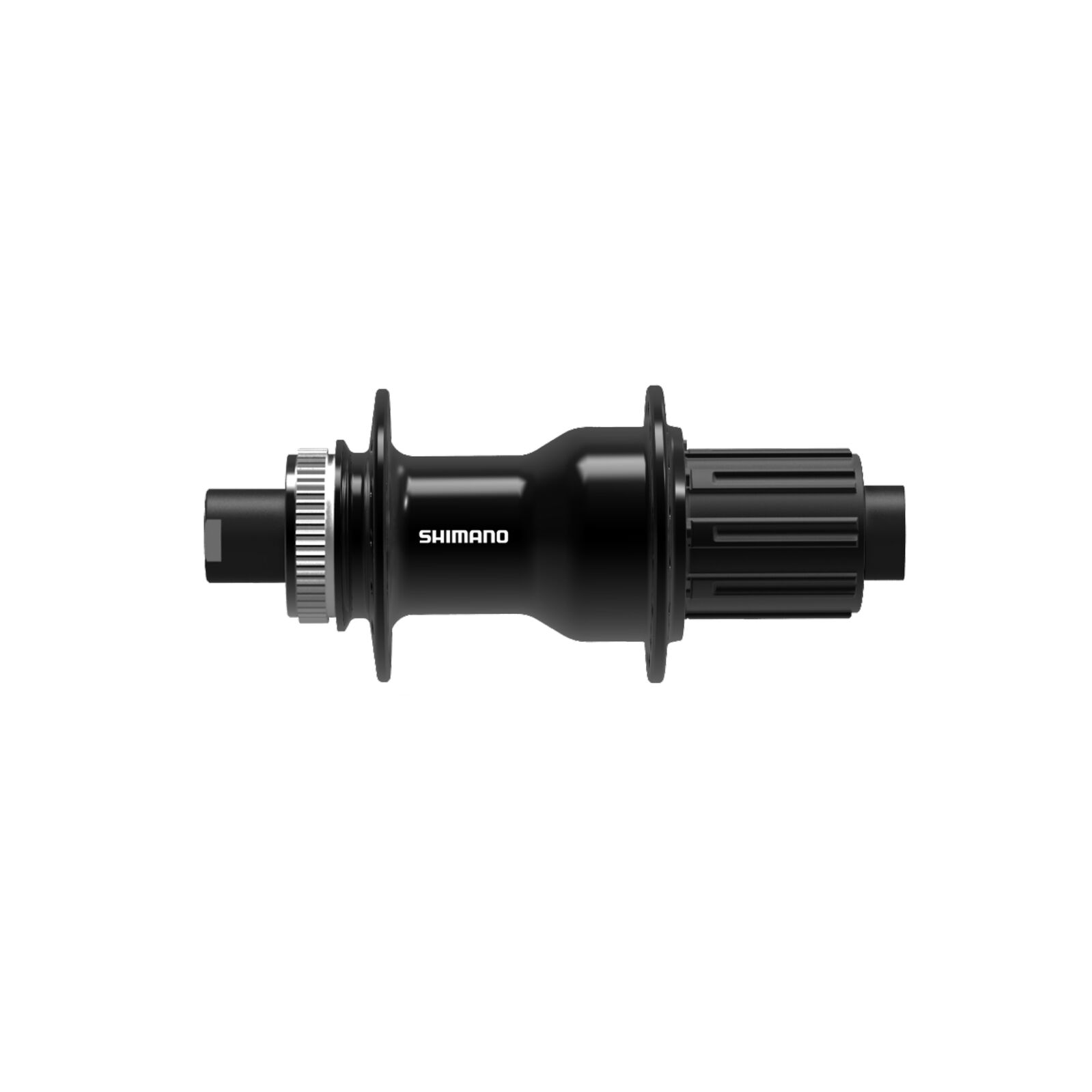

Shimano FH-TC500-HM-B Rear Freehub - Boost 148x12 mm, Center Lock, 32H
SKU code: SHM-EFHTC500HMB
Sold Out
Build a dependable trail or commuter wheel around a freehub that just keeps turning. The Shimano FH-TC500-HM-B is a Boost 148x12 mm rear freehub with a Center Lock rotor interface and a wide 8/9/10-speed plus 11-speed MTB compatibility window, so it slots into a huge range of modern hardtails and trail bikes.
Highlights
- Boost 148x12 mm E-THRU spacing for current MTB frames
- HG Spline M freehub body covers 8, 9, 10 and 11-speed MTB cassettes
- Center Lock rotor mount for fast, secure disc fitting
- 32-hole drilling for a strong, serviceable wheel build
- Labyrinth and contact sealing to keep dirt and water out
Reliable engagement, low fuss
A pawl-and-ratchet freehub body delivers consistent pickup ride after ride, while the cup-and-cone bearing system can be adjusted and serviced rather than thrown away, helping the hub last for seasons of riding.
Sealed against the elements
Combined labyrinth and contact seals shield the bearings from mud, dust and spray, so engagement stays crisp through wet trails and grimy commutes.
Easy disc setup
The Center Lock interface lets you fit a compatible rotor with a single lock ring, making rotor swaps and brake servicing quicker than a six-bolt setup.
Compatibility & fit
- Frame spacing: Boost 148x12 mm E-THRU rear axle only
- Cassette: HG Spline M body fits Shimano HG 8/9/10-speed and 11-speed MTB cassettes
- Rotor: Center Lock rotors only (six-bolt rotors are not compatible)
- Spokes: 32-hole, compatible with #13 and #14 gauge spokes
This is the 148 mm Boost version (-HM-B). If your frame uses 142x12 mm spacing, choose the standard FH-TC500-HM instead.
Shimano components are covered by Shimano's manufacturer warranty against defects in materials and workmanship for the applicable warranty period from the date of purchase. The warranty does not cover normal wear, damage from crashes, improper installation, neglect or unauthorised modification.
For warranty support, return the item to Tune Cycles and we'll manage the claim for you.
This warranty is in addition to your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage.
- Boost 148x12 mm E-THRU rear axle spacing
- HG Spline M freehub body for 8/9/10-speed and 11-speed MTB cassettes
- Center Lock disc rotor mount with lock ring interface
- Pawl-and-ratchet freehub body for reliable engagement
- Serviceable cup-and-cone bearing system
- Labyrinth and contact sealing against dirt and water
- 32-hole drilling, compatible with #13 and #14 spokes
- Black finish
| Model | FH-TC500-HM-B |
|---|---|
| Series | Shimano CUES |
| Type | Rear freehub (disc brake) |
| O.L.D. (axle spacing) | 148 mm (Boost) |
| Axle | 12 mm E-THRU thru-axle |
| Freehub body | HG Spline M |
| Speed compatibility | 8 / 9 / 10-speed and 11-speed MTB |
| Disc mount | Center Lock |
| Spoke holes | 32H |
| Spoke compatibility | #13 and #14 gauge |
| Sealing | Labyrinth and contact seals |
| Colour | Black |
| SKU | SHM-EFHTC500HMB |
| Barcode # | 4550170641061 |
| Brand | Shimano |
