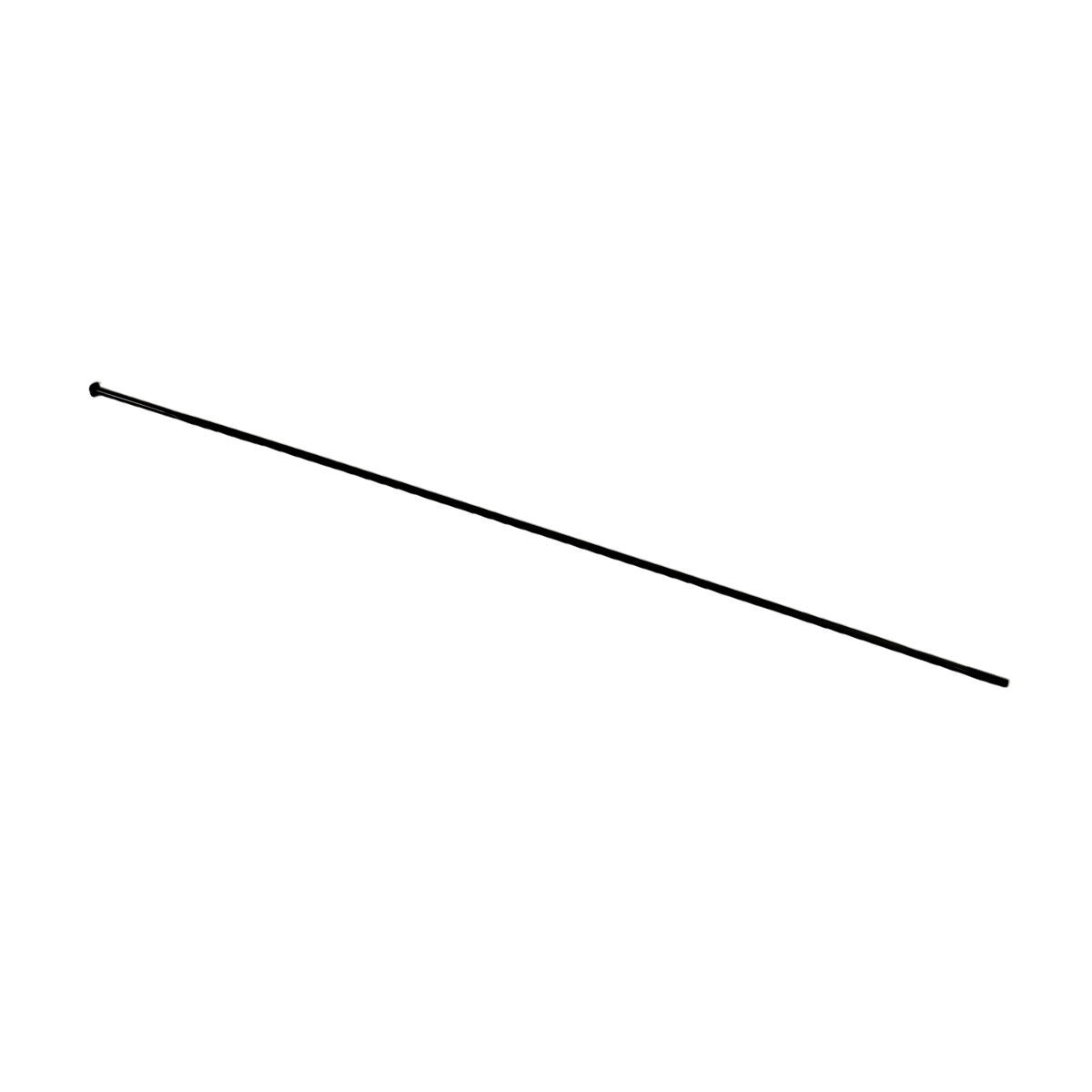

Keep a MY25 Scope R-Series wheel to factory spec after a spoke failure. This genuine replacement is the Sapim CX-Ray spoke Scope builds the Race Series with, supplied in the exact length for your wheel.

Highlights

  • Genuine Scope R-Series spare part
  • Sapim CX-Ray, as specified on Scope's R-Series wheels
  • MY25 R-Series only
  • Specific length for each model family, position and side

Pick the right spoke

Spoke length changes between the R4, R6 and R8 families, front and rear, and drive and non-drive side. Choose the option that matches your wheel and the spoke you're replacing; the length is shown in each option.

Compatibility & fit

Fits MY25 Scope R-Series wheels as listed in the options table. Not for MY21 R-Series, Artech or S-Series wheels: Scope lists MY21 and MY25 spokes separately. Scope's exploded view explains how to identify your Race Series generation by its spoke nipples. Spoke replacement and truing is a separate Tune Cycles workshop service and is not included.

Options

OptionWheelPositionSideLength
272mm R4/R4.A/R4.G FRONT DSR4/R4.A/R4.GFrontDrive side272mm
270mm R4/R4.A/R4.G FRONT NDSR4/R4.A/R4.GFrontNon-drive side270mm
267mm R4/R4.A/R4.G REAR DSR4/R4.A/R4.GRearDrive side267mm
273mm R4/R4.A/R4.G REAR NDSR4/R4.A/R4.GRearNon-drive side273mm
254mm R6/R6.A/R6.G FRONT DSR6/R6.A/R6.GFrontDrive side254mm
252mm R6/R6.A/R6.G FRONT NDSR6/R6.A/R6.GFrontNon-drive side252mm
249mm R6/R6.A/R6.G REAR DSR6/R6.A/R6.GRearDrive side249mm
255mm R6/R6.A/R6.G REAR NDSR6/R6.A/R6.GRearNon-drive side255mm
234mm R8/R8.A/R8.G FRONT DSR8/R8.A/R8.GFrontDrive side234mm
232mm R8/R8.A/R8.G FRONT NDSR8/R8.A/R8.GFrontNon-drive side232mm
228mm R8/R8.A/R8.G REAR DSR8/R8.A/R8.GRearDrive side228mm
234mm R8/R8.A/R8.G REAR NDSR8/R8.A/R8.GRearNon-drive side234mm
Covered against manufacturing and material defects under Scope's warranty terms. Damage from crashes, impact or incorrect assembly isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with the brand's Australian distributor.
  • Genuine Scope spare part
  • Sapim CX-Ray spoke
  • For MY25 R-Series wheels
  • Lengths matched to model, position and side
BrandScope
SpokeSapim CX-Ray
Model yearMY25
FitsR4/R4.A/R4.G, R6/R6.A/R6.G, R8/R8.A/R8.G
Lengths228–273mm by model, position and side (see options)
SKU ECH-P-SC2025001
Brand Scope
Shipping Weight 0.0500kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
