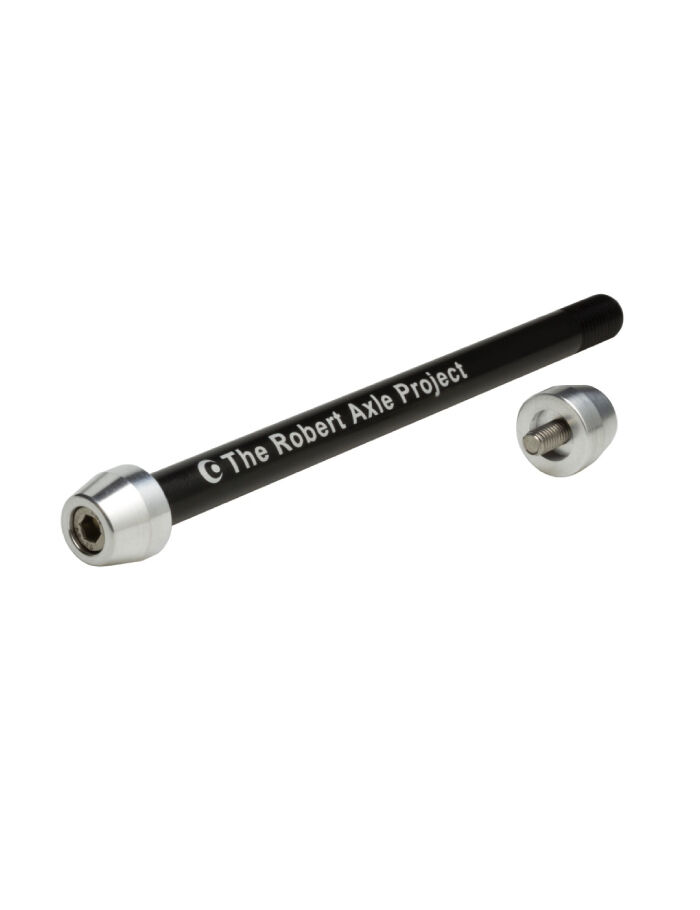

Swaps your bike's thru-axle for a Robert Axle Project trainer axle, so a thru-axle bike can mount on a wheel-on resistance trainer. This one is a fixed 180mm true length, M12x1.25 thread - a less common pitch, so check it against your bike's stock axle before ordering.

Highlights

  • 180mm true length, no spacers needed
  • M12x1.25 thread
  • 7075 aluminium shaft, hard black anodised
  • Usable on or off the trainer - remove the drive-side end to ride outside

Compatibility & fit

Fits 12mm thru-axle bikes with a 148mm-spaced rear hub and an M12x1.25 thread - an uncommon pitch, so confirm your bike's exact thread before ordering. Axle ends extend roughly 15mm past the frame each side - measure your trainer at its widest setting too. Confirm with Robert Axle Project's online Axle Finder, or bring the bike to the Tune workshop and we'll check the existing axle and fit the replacement.

Robert Axle Project's lifetime warranty covers defects in material and workmanship to the original purchaser, for the lifetime of ownership - it excludes misuse, improper installation, accidents and normal wear and tear. For warranty support, return the product to Tune Cycles and we'll manage the claim with Robert Axle Project's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 180mm true length
  • M12x1.25 thread
  • For 148mm-spaced rear hubs
  • 7075 aluminium shaft, hard black anodised
  • 5mm hex wrench to install
BrandRobert Axle Project
Axle diameter12mm
ThreadM12x1.25
Length180mm true
Hub spacing148mm
Material7075 aluminium, hard black anodised
Weightapprox 142g
SKU DTW-RAG-TRA225
Barcode # 602150474085
Brand Robert Axle Project
