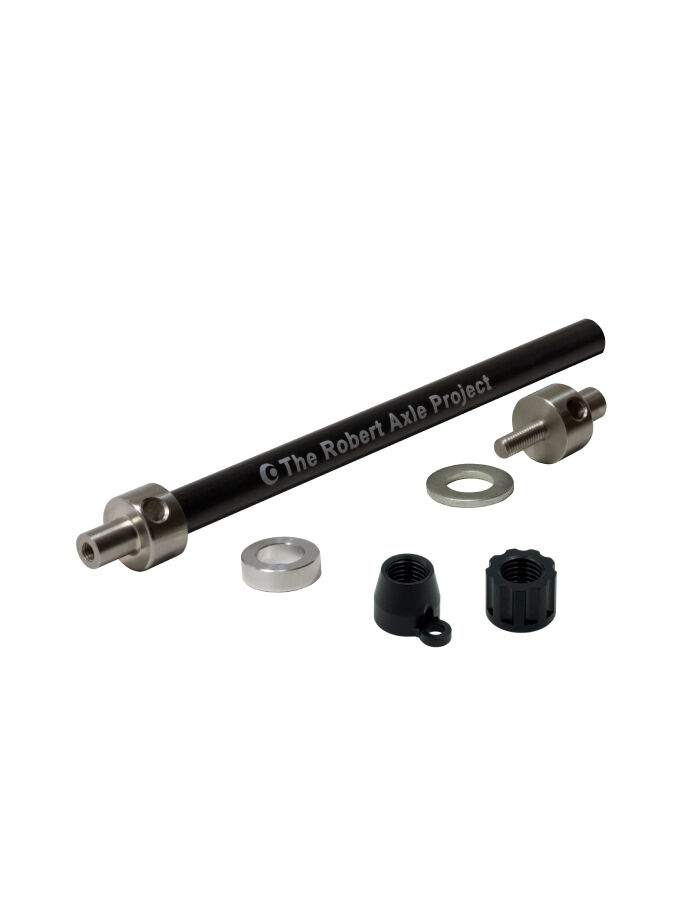

A 12mm thru-axle built for the FOCUS R.A.T. thru-axle system, so a FOCUS R.A.T. bike can tow a BOB Trailer instead of using the BOB Trailer's original quick-release mount.

Highlights

  • M12x1.5 thread pitch
  • Built for FOCUS R.A.T. bikes with 12x142 or Boost 12x148 hub spacing
  • 7075 aluminium shaft, hard black anodised; stainless steel axle ends
  • Installs and removes with a standard 5mm hex key, no special tools

Fit

FOCUS R.A.T. bikes use their own thru-axle system; thread pitch and hub width both have to match your bike exactly. Check your bike against Robert Axle Project's online Axle Finder before ordering.

Compatibility & fit

Fits FOCUS bikes with the R.A.T. thru-axle system, in 12x142 or Boost 12x148 hub spacing, M12x1.5 dropout thread. The Tune workshop can measure your existing axle and fit the new one.

Robert Axle Project backs this product with its Lifetime Warranty: free from defects in materials and workmanship, to the original purchaser, for as long as you own it. Normal wear and tear, misuse, neglect, improper installation or maintenance, alteration and accident damage aren't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Robert Axle Project's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • M12x1.5 thread, for FOCUS R.A.T. 12x142 or Boost 12x148 hubs
  • 7075 aluminium, hard black anodised, stainless steel ends
  • 5mm hex key install, no special tools
BrandRobert Axle Project
TypeBOB Trailer thru-axle, FOCUS R.A.T. system
Thread pitchM12x1.5
Hub fit12x142 or Boost 12x148
Diameter12mm
Material7075 aluminium shaft, stainless steel ends
Tool5mm hex key
SKU DTW-RAG-BOB114.F
Barcode # 602150472883
Brand Robert Axle Project
