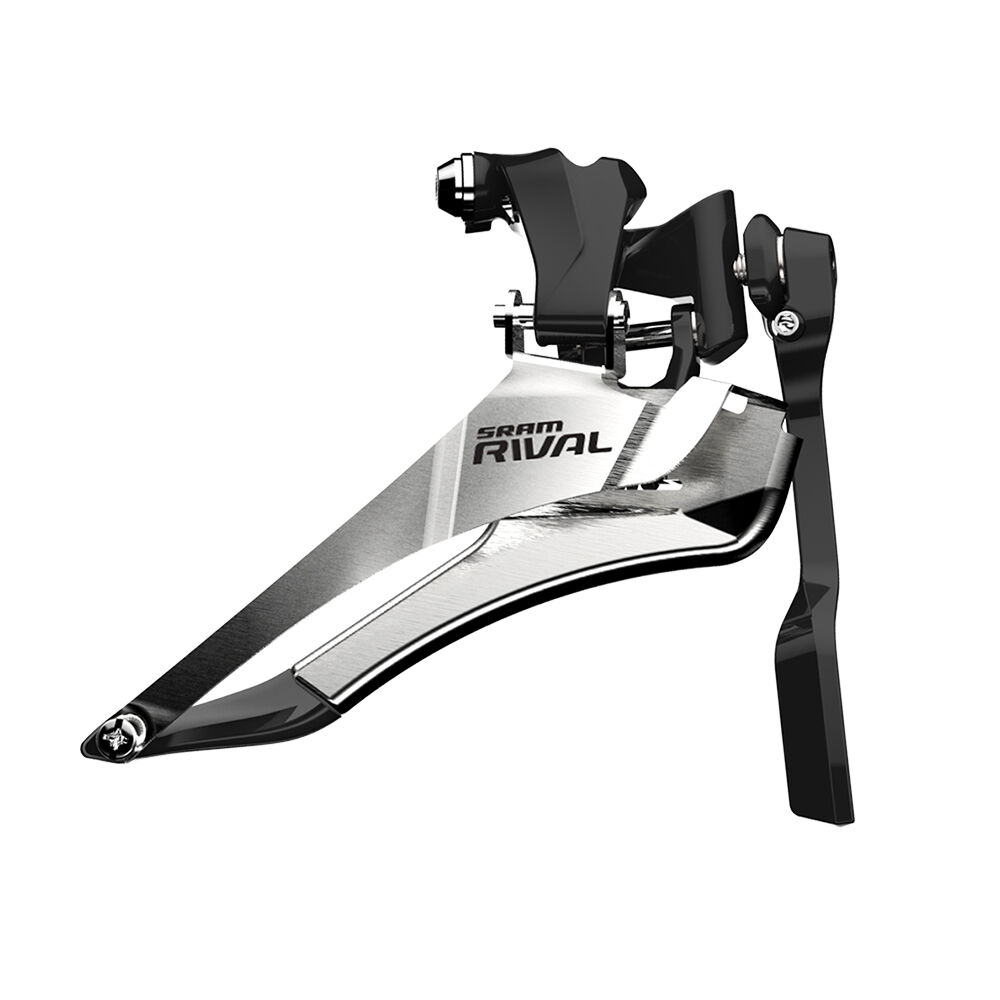

The SRAM Rival 22 Yaw front derailleur brings auto-trim shifting to the Rival tier — the Yaw cage rotates as the rear derailleur traverses the cassette, eliminating the need for front trim adjustments. Paired with Rival 22 DoubleTap levers, front shifting becomes a single deliberate action with no follow-up trim needed.

Highlights

  • Rival 22 2x11 Yaw front derailleur
  • Yaw cage rotation eliminates front trim adjustments
  • Compatible with Rival 22 DoubleTap brake-shift levers
  • Braze-on mount
  • Road and performance gravel compatible

Fit and compatibility

Rival 22 2x11 Yaw front derailleur, braze-on mount. Compatible with SRAM Rival 22 DoubleTap levers and Rival 22 cranksets. Confirm chainring tooth range and frame mount type before ordering.

Installation. Service. Compatibility. Find all the documentation needed to set up, use, and maintain your components in the SRAM Service hub.

Visit product service page
Features
  • SRAM Road 11-speed Yaw™ compatible
  • Braze-on and clamp styles available
  • Yaw™ cage rotates in line with chain, improving the shifting speed and precision while eliminating the need for shifter trim.
  • Integrated chain spotter protects your frame, and installs and adjusts independently of the derailleur itself.
  • Precision alignment markings on the cage.

Specifications

Cable routing Bottom pull, n/a
Compat - Chainring (FD) Road, Road-Yaw
Speed (FD) 2x11, 2x11 YAW
Mounting type (FD) Braze-on, Clamp-High
Color (FD) Black
Chainstay Angle 61-66 degrees, n/a
Clamp size (FD) 31.8mm, 34.9mm, n/a
Weight Based On w/chainspotter
SKU SRM-FD-RIV-B1
Model # FD-RIV-B1
Barcode # FD-RIV-B1
Brand SRAM
