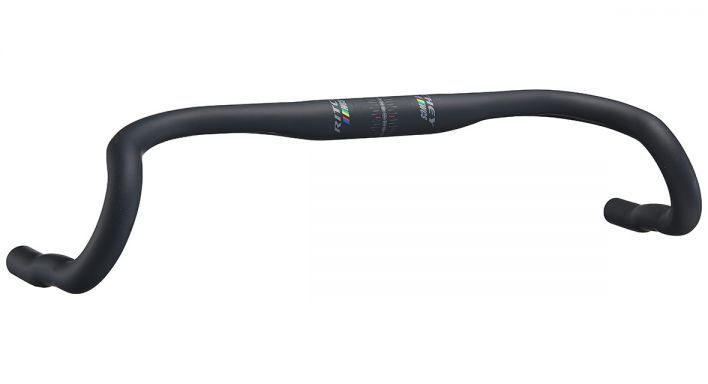

Ritchey WCS VentureMax Alloy Handlebar – 38cm
SKU code: DTW-RIG-HBWVM38BT
$201.95
The new-generation WCS VentureMax keeps the short reach, shallow drop and purposeful flare that made the original a favourite for gravel and mixed-surface adventures, with an ergo-aero top section and drilling for a Shimano Di2 junction box.
Highlights
- Triple-butted 7050 alloy construction, Blatte finish
- Ergo-aero 38×22.5mm top section for a flatter, more comfortable hand position
- 24° drop flare with Ritchey's Bio-bend in the drops
- Drilled for a Shimano EW-RS910 Di2 junction box
- Standard widths 38–46cm, plus 50cm and 52cm XL widths for a wider bikepacking fit
- Clip-on compatible on every width except 38cm
Geometry
102mm drop, 75mm reach, 6° flare-out and 4.6° backsweep. Ritchey's own spec sheet notes width is measured at the initial bend rather than at the hoods.
Compatibility & fit
31.8mm clamp and 31.8mm accessory mount diameter. Ritchey's own spec sheet states this bar is not compatible with the Ritchey C260 stem — Dirt Works' listing says the opposite; this copy follows Ritchey's page.
Options
| Width | Notes |
|---|---|
| 38cm | Not clip-on compatible |
| 40cm | Clip-on compatible |
| 42cm | Clip-on compatible, reference weight 270g |
| 44cm | Clip-on compatible |
| 46cm | Clip-on compatible |
| 50cm | WCS VentureMax XL |
| 52cm | WCS VentureMax XL, 325g |
Ritchey covers this product for two years from the date of purchase against defects in materials and workmanship (the Ritchey International warranty, which covers Australia). Normal wear and tear isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Ritchey's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
- 24° drop flare, Bio-bend drops, ergo-aero tops
- Triple-butted 7050 alloy, Blatte finish
- 31.8mm clamp, Di2 EW-RS910 junction box drilling
- 50/52cm XL widths for bikepacking
- Not compatible with the Ritchey C260 stem
| Material | Triple-butted 7050 alloy |
|---|---|
| Clamp diameter | 31.8mm |
| Accessory mount diameter | 31.8mm |
| Drop | 102mm |
| Reach | 75mm |
| Drop flare | 24° |
| Flare out | 6° |
| Backsweep | 4.6° |
| Weight | 270g (42cm); 325g (52cm XL) |
| Colour | Blatte |
| Width options | 38cm, 40cm, 42cm, 44cm, 46cm, 50cm, 52cm |
| SKU | DTW-RIG-HBWVMA-PAR |
| Brand | Ritchey |
