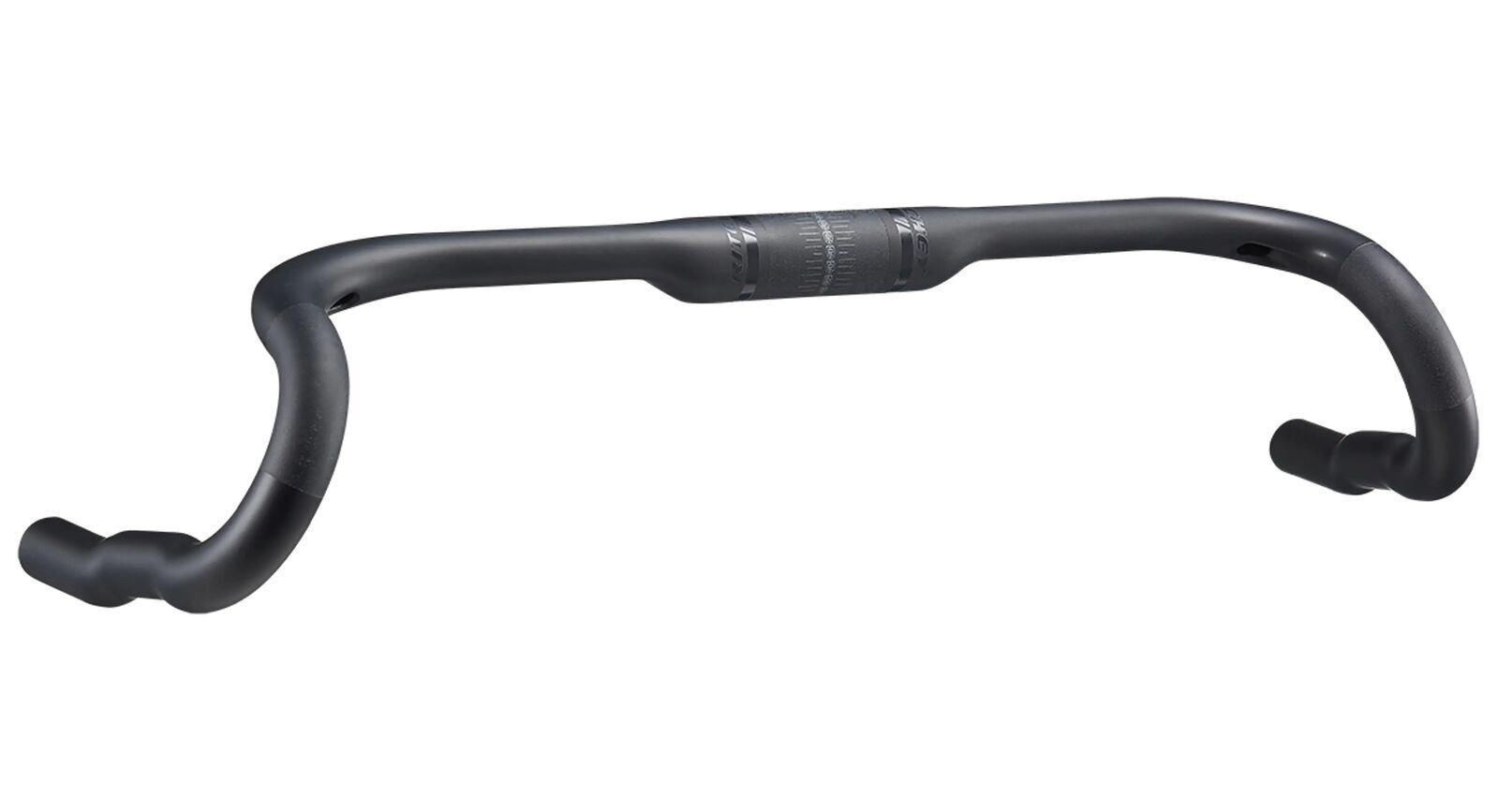

The SuperLogic VentureMax is Ritchey's first carbon gravel bar, pairing a short reach and shallow drop with a wide 24° flare, and it's the first Ritchey gravel bar put through the brand's dedicated impact-and-fatigue gravel test cycle.

Highlights

  • Full carbon fibre, matte UD carbon finish
  • Ergo-aero 38×22.5mm top section for a comfortable, flattened hand position
  • 24° drop flare with an updated, more gentle Bio-bend in the drops
  • Full or partial internal cable routing, compatible with the Shimano EW-RS910 Di2 junction box
  • Available in 42cm, 44cm, 46cm and 48cm widths

Geometry

102mm drop, 76mm reach, 6° flare-out and 4° backsweep. Ritchey's own spec sheet notes width is measured at the initial bend rather than at the hoods.

Compatibility & fit

31.8mm clamp and 31.8mm accessory mount diameter. Stem clamp torque is 5Nm (max); lever and shifter clamp torque is 5Nm (recommended). Not compatible with the Ritchey C260 stem.

Options

WidthNotes
42cmReference weight 235g
44cmSame geometry
46cmSame geometry
48cmSame geometry
Ritchey covers this product for two years from the date of purchase against defects in materials and workmanship (the Ritchey International warranty, which covers Australia). Normal wear and tear isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Ritchey's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 31.8mm clamp, full or partial internal Di2 routing
  • 24° drop flare, updated Bio-bend drops
  • Ergo-aero 38×22.5mm tops
  • Matte UD carbon fibre, 235g (42cm)
  • Not compatible with the Ritchey C260 stem
MaterialCarbon fibre
Clamp diameter31.8mm
Accessory mount diameter31.8mm
Drop102mm
Reach76mm
Drop flare24°
Flare out6°
Backsweep4°
Weight235g (42cm)
Stem clamp torque5Nm (max)
ColourMatte UD carbon
Width options42cm, 44cm, 46cm, 48cm
SKU DTW-RIG-HBSLV-PAR
Brand Ritchey
