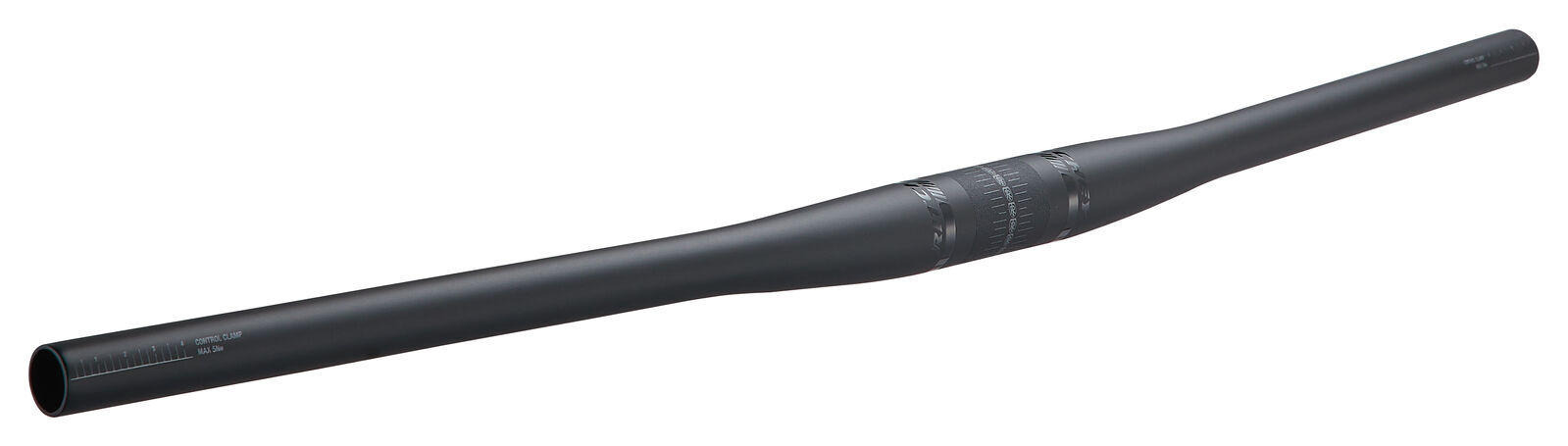

The zero-rise member of Ritchey's SuperLogic carbon mountain bar family, built for cross-country riders who want the lowest front end and the lightest weight the range offers.

Highlights

  • Lightweight UD carbon fibre construction, matte finish
  • 760mm wide with cutting marks for trimming to a preferred width
  • Zero rise, 7° backsweep, 5° upsweep
  • 31.8mm clamp diameter
  • Approx 155g – the lightest bar in the SuperLogic mountain range

Why zero rise

Ritchey sells this bar as its own flat-bar product, separate from the 20mm/40mm SuperLogic Rizer bars – the zero-rise shape uses a slightly shallower 7° backsweep (the risers use 8°) to keep the front end low for racing.

Compatibility & fit

Fits any 31.8mm stem clamp. Torque the stem and any bar-end clamp to 5Nm maximum – carbon bars are sensitive to over-tightening, so the Tune workshop can fit this bar to the correct torque as part of a cockpit upgrade.

Ritchey covers this product for two years from the date of purchase against defects in materials and workmanship (the Ritchey International warranty, which covers Australia). Normal wear and tear isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Ritchey's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • Matte UD carbon fibre, 760mm with cutting marks
  • Zero rise, 7° backsweep, 5° upsweep
  • 31.8mm clamp diameter
  • Approx 155g
BrandRitchey
RangeSuperLogic Flat
MaterialUD carbon fibre, matte finish
Width760mm (cutting marks)
RiseZero
Backsweep7°
Upsweep5°
Clamp diameter31.8mm
Weightapprox 0.155kg
Max torque5Nm (stem, bar-end, lever/shifter)
SKU DTW-RIG-HBSLF750C
Barcode # 796941309660
Brand Ritchey
