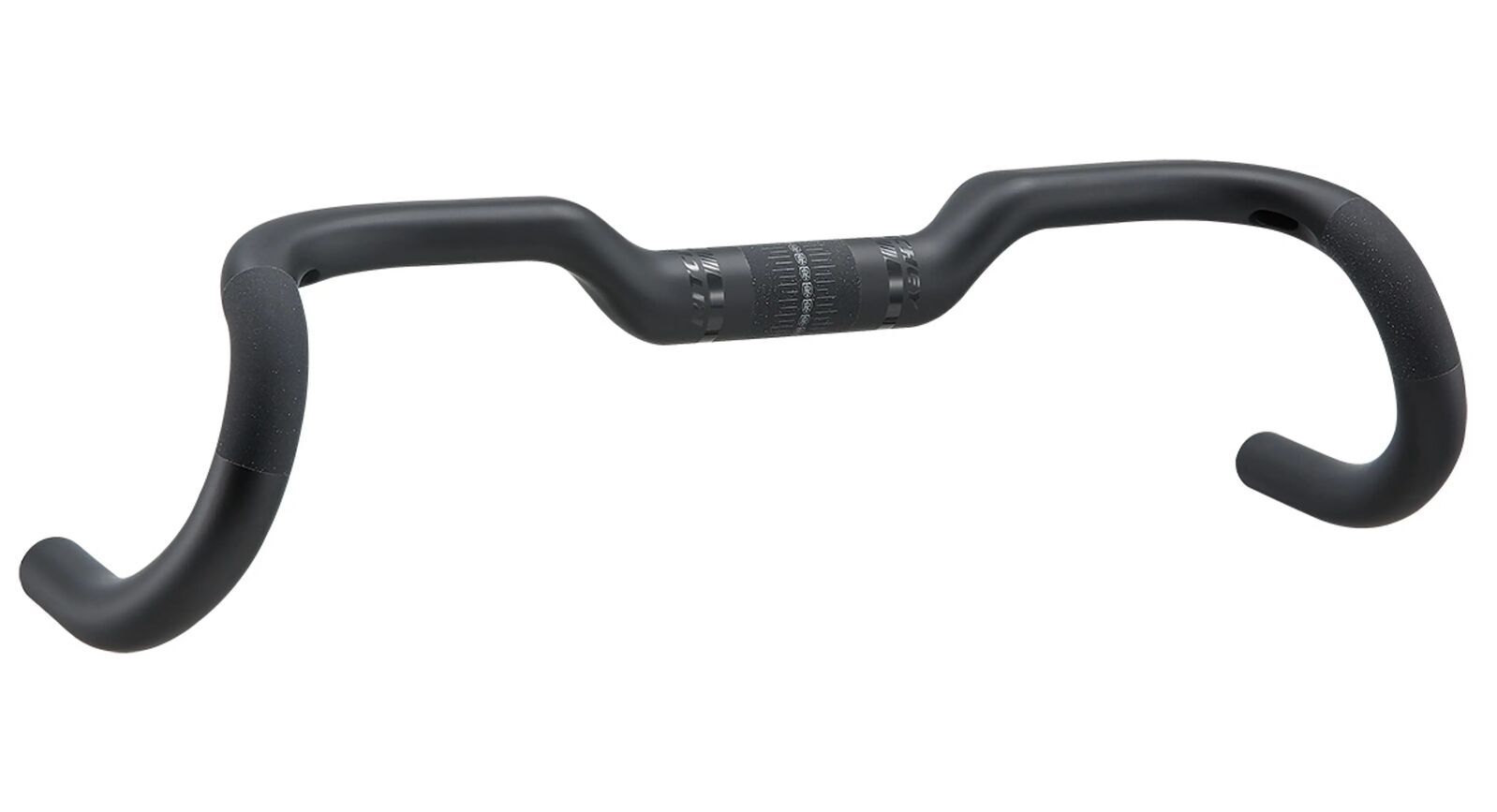

Ritchey SuperLogic ErgoMax Carbon Handlebar – 38cm
SKU code: DTW-RIG-HBSLE38C
$499.95
Ritchey's carbon SuperLogic ErgoMax carries a compact bend and ergonomic top section onto mixed-surface rides, built for long days on and off the road without punishing your hands.
Highlights
- Full carbon fibre construction with a matte UD carbon finish
- Compact bend with an ergonomic top section for reduced fatigue
- 20mm rise at the clamp and a 17.5° drop flare for a stable, upright drop position
- 90mm flat centre section for clip-on extensions or bar bags
- Full or partial internal cable routing, compatible with the Shimano EW-RS910 Di2 junction box
- Available in 38cm, 40cm, 42cm and 44cm widths
Geometry
113mm drop, 70mm reach, 5° backsweep and a 2° flare-out complement the 17.5° drop flare, for a stable position on mixed terrain without reaching aggressively forward.
Compatibility & fit
31.8mm clamp and 31.8mm accessory mount diameter. Stem clamp torque is 5Nm (max); lever and shifter clamp torque is 5Nm (recommended). Not compatible with the Ritchey C260 stem. Wider cable housing may interfere with internal routing.
Options
| Width | Notes |
|---|---|
| 38cm | Same geometry as other widths |
| 40cm | Same geometry |
| 42cm | Same geometry; reference weight 235g |
| 44cm | Same geometry |
Ritchey covers this product for two years from the date of purchase against defects in materials and workmanship (the Ritchey International warranty, which covers Australia). Normal wear and tear isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Ritchey's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
- 31.8mm clamp with full or partial internal Di2 routing
- Compact bend, ergonomic top section, 5° backsweep
- Matte UD carbon fibre, 235g (42cm)
- 90mm flat centre section for clip-ons or bags
- Not compatible with the Ritchey C260 stem
| Material | Carbon fibre |
|---|---|
| Clamp diameter | 31.8mm |
| Accessory mount diameter | 31.8mm |
| Drop | 113mm |
| Reach | 70mm |
| Drop flare | 17.5° |
| Flare out | 2° |
| Backsweep | 5° |
| Rise | 20mm |
| Weight | 235g (42cm) |
| Stem clamp torque | 5Nm (max) |
| Lever/shifter torque | 5Nm (recommended) |
| Colour | Matte UD carbon |
| Width options | 38cm, 40cm, 42cm, 44cm |
| SKU | DTW-RIG-HBSLE-PAR |
| Brand | Ritchey |
