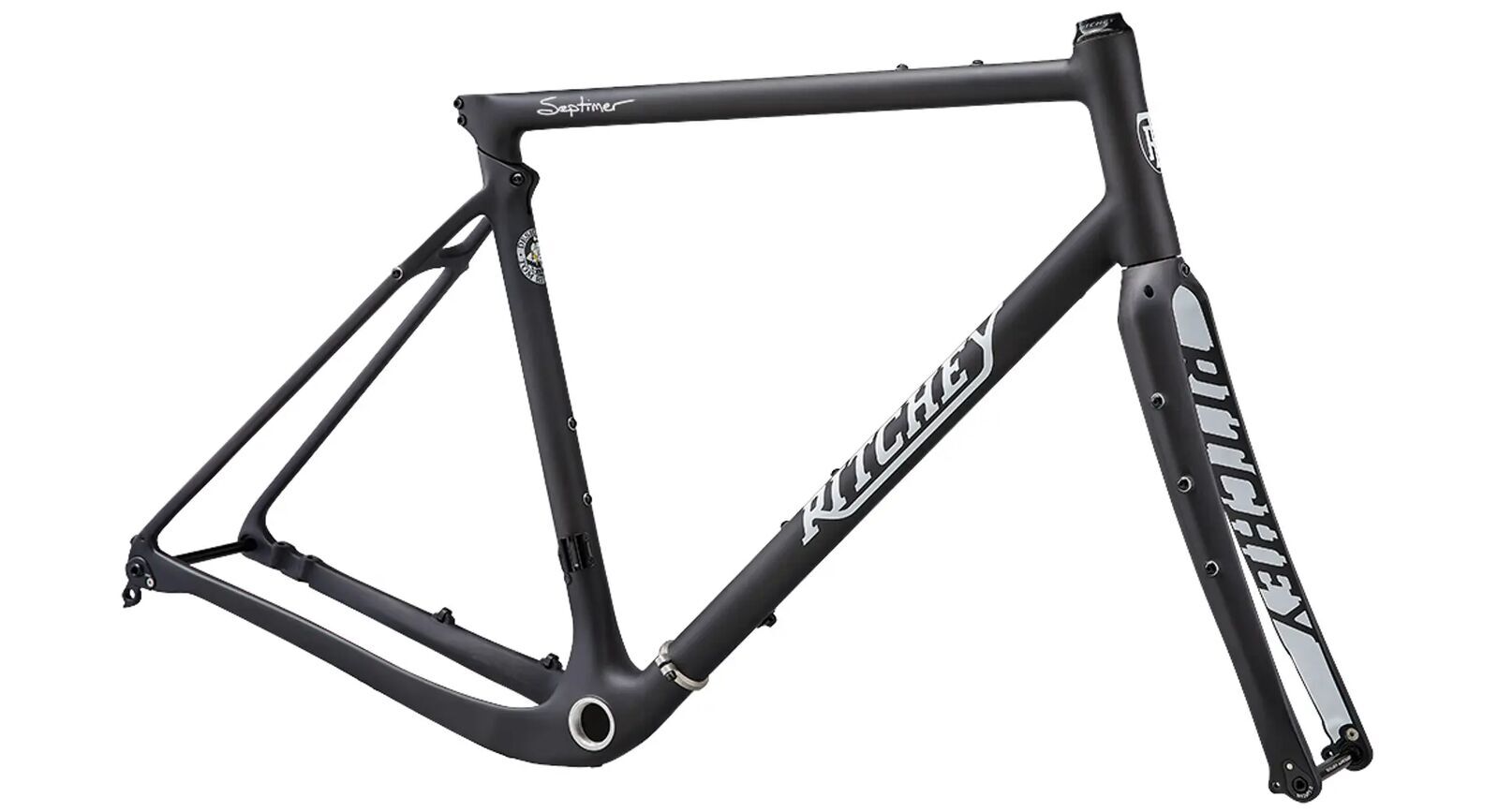

A carbon all-road frameset built around Ritchey's patented Break-Away coupler system, so the whole bike disassembles to pack into its own travel case – built for riders who want one bike for both local roads and travelling.

Highlights

  • Carbon fibre frame and fork with stainless steel Break-Away joints
  • 700 × 48c tyre clearance
  • Flat mount disc brakes, 140mm standard (160mm max with separate adaptors)
  • 142×12mm rear / 100×12mm front thru-axle (alloy axles included)
  • 1× or 2× chainring compatible (not Direct Mount T-Type)
  • WCS headset included (upper IS42/28.6, lower IS42/30)
  • Packs into the included travel case

Compatibility & fit

27.2mm seat tube with integrated seat collar (5Nm max torque), 68mm English-threaded bottom bracket, external cable routing with stealth semi-wireless Di2 wire routing (Shimano Di2 EW-SD300, 12-speed only). Single ring 36–46T (49.7mm chainline) or double 46/30T to 50/34T (47mm chainline) – not compatible with SRAM Direct Mount T-Type derailleurs/cassettes. Flat mount front and rear, hydraulic or mechanical brake compatible; mechanical cable splitters can't be used. Replaceable derailleur hanger. Frame, fork, WCS headset, travel case and both thru-axles are included; groupset, wheels, cockpit and seatpost are sold separately. The Tune workshop can build this up as a complete bike.

Size

Large frame – 1,360g frame / 440g fork (uncut, excluding thru-axle).

Ritchey covers this product for two years from the date of purchase against defects in materials and workmanship (the Ritchey International warranty, which covers Australia). Normal wear and tear isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Ritchey's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • Carbon frame + fork, Break-Away coupler, packs into included travel case
  • 700×48c tyre clearance
  • Flat mount disc, 140mm standard (160mm max with adaptors)
  • 142×12 rear / 100×12 front thru-axle, included
  • 1× or 2× compatible, WCS headset included
BrandRitchey
Frame materialCarbon fibre, stainless steel Break-Away joints
SizeLarge
Seatpost27.2mm, integrated collar (5Nm max)
Bottom bracket68mm English threaded
Rear axle142×12mm thru-axle (included)
Front axle100×12mm thru-axle (included)
Brake mountFlat mount, 140mm standard (160mm max with adaptors)
Tyre clearance700×48c
Chainring1×36–46T or 2×46/30T–50/34T (not T-Type Direct Mount)
Headset includedWCS, upper IS42/28.6, lower IS42/30
ColourBlack & White
IncludedFrame, fork, WCS headset, travel case, front + rear thru-axles
SKU DTW-RIG-FRBAGVSPTLC
Brand Ritchey
