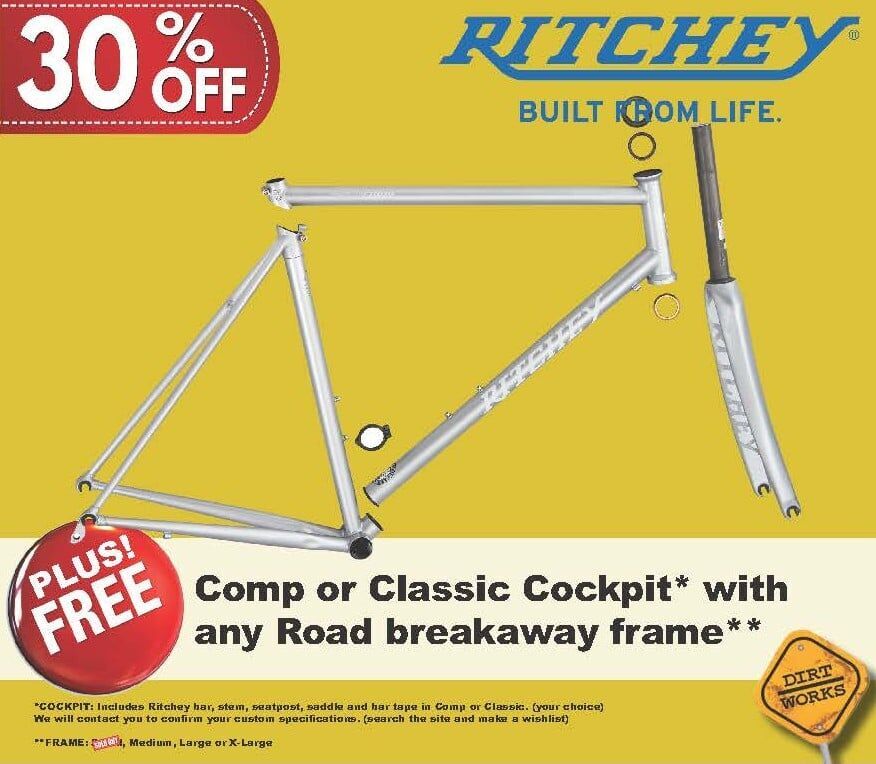

A steel road frameset built to travel: the Road Logic Break-Away splits in two at a down tube coupler and seatpost hinge, then packs into its own included travel case to dodge airline oversize-bike fees – reassembling again once you land.

Highlights

  • Heat-treated, triple-butted Ritchey Logic steel tubing, TIG-welded
  • Patented Ritchey Break-Away® split frame design, travel case included
  • Ritchey WCS Carbon Road Fork and WCS headset included
  • 700x30c tyre clearance (38mm frame, 40mm fork spacing)
  • Size XL, Tule Fog colourway

Break-Away travel system

The frame separates at a down tube coupler (5Nm max torque – don't lubricate the clamp or clamping area) and a seatpost-mounted hinge, with the rear brake cable connector and derailleur cable connectors included. It packs into the included travel case (8.5in/21.6cm W x 26.5in/67.3cm H x 31in/78.8cm L with wheels fitted). A torque key for the coupler isn't included.

Frame details

Ritchey's forged-and-machined integrated head tube uses standard drop-in bearings and saves weight over a standard head tube design. The WCS headset (IS42/28.6 upper, 16mm stack height | IS42/30 lower) is included, along with a 68mm English-threaded bottom bracket, a 27.2mm seatpost with integrated collar (6Nm max torque) and a 28.6mm seat tube clamp (2.5Nm max for derailleur clamps and chain guides).

Compatibility & fit

Fits 700x30c tyres (38mm frame spacing, 40mm fork spacing, depending on tyre/rim), single or double chainrings from 30/46T to 39/53T, and standard quick-release wheels front and rear. Available in S, M, L and XL; this listing is size XL. The Tune workshop can check fit and build a Break-Away frameset into a complete bike.

Ritchey covers this product for two years from the date of purchase against defects in materials and workmanship (the Ritchey International warranty, which covers Australia). Normal wear and tear isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Ritchey's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • Heat-treated, triple-butted Ritchey Logic steel tubing
  • Patented Break-Away® split design, travel case included
  • Ritchey WCS Carbon Road Fork and WCS headset included
  • 700x30c tyre clearance
  • 68mm English-threaded BB, 27.2mm seatpost
BrandRitchey
Frame materialHeat-treated, triple-butted Ritchey Logic steel, TIG-welded
HeadsetWCS, IS42/28.6 upper | IS42/30 lower (included)
Bottom bracket68mm English threaded
Seatpost27.2mm, integrated collar
Seat tube clamp28.6mm
Tyre clearance700x30c
ForkRitchey WCS Carbon Road Fork, 1-1/8in steerer (included)
Frame weightapprox 1.95kg (size L, Ritchey's figure)
SizeXL
ColourTule Fog
SKU DTW-RIG-FRBARDRLCXLGY
Barcode # 796941974837
Brand Ritchey
