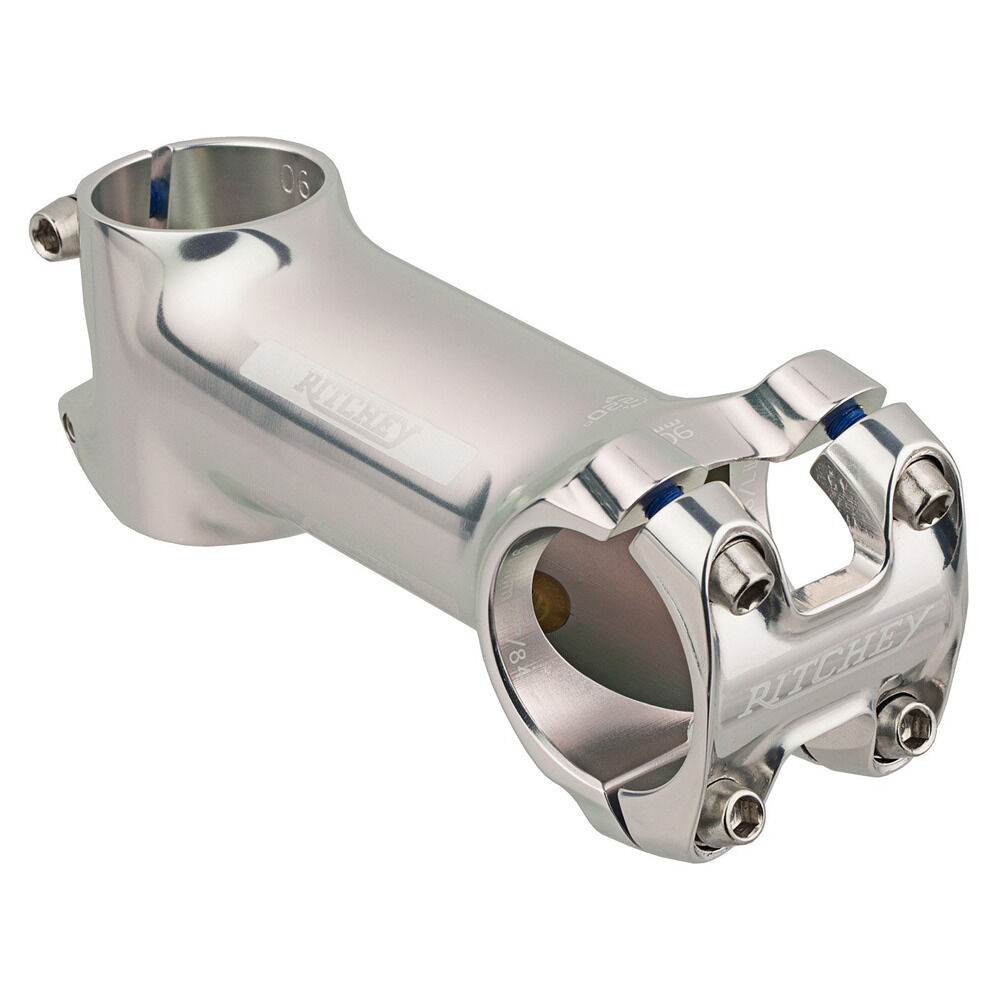

Ritchey Classic C220 Stem – 70mm, 6/84 Deg
SKU code: DTW-RIG-ST220CLS7084S
$148.95
The original award-winning C220 clamp design in a high-polish silver finish: a secure, low-stress hold on lightweight bars without the weight of a wider clamp.
Highlights
- 220-degree wrap-around clamp bonds bolt forces to the bar for a secure hold without extra bar stress
- Forged 2014 aluminium body, stainless steel bolts throughout
- 84/6 degree rise suits most road, gravel and flat-bar setups
- High-polish silver finish, matching top cap included
- 1-1/8in steerer, 31.8mm bar clamp
Clamp design
The C220 clamp wraps a full 220 degrees over the bar and aligns bolt forces with the clamp, so the stem body 'embraces' the bar rather than pinching it — gentler on lightweight bars than a narrower clamp at the same torque.
Compatibility & fit
31.8mm bar clamp, 1-1/8in (28.6mm) steerer. The Tune workshop can torque this to spec during a fit.
Options
| Length | Notes |
|---|---|
| 60mm | This size is Ritchey's Classic Toyon stem, a close sibling of the C220 — same 84/6 degree rise, 31.8mm clamp and 1-1/8in steerer, but 2014 alloy at 115g; Ritchey's own C220 Classic range starts at 70mm |
| 70mm | 84/6 degree rise |
| 80mm | 84/6 degree rise |
| 90mm | 84/6 degree rise, 130g reference weight |
| 100mm | 84/6 degree rise |
| 110mm | 84/6 degree rise |
| 120mm | 84/6 degree rise |
| 130mm | 84/6 degree rise |
Ritchey covers this product for two years from the date of purchase against defects in materials and workmanship (the Ritchey International warranty, which covers Australia). Normal wear and tear isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Ritchey's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
- 220-degree wrap-around clamp
- 2014 aluminium, stainless steel bolts
- 84/6 degree rise
- High-polish silver, matching top cap included
- 1-1/8in steerer, 31.8mm clamp
| Material | 2014 alloy (aluminium) |
|---|---|
| Bolts | Stainless steel |
| Angle | 84/6 degree rise |
| Bar clamp diameter | 31.8mm |
| Bar clamp width | 44mm |
| Steerer diameter | 1-1/8in (28.6mm) |
| Steerer height | 42mm |
| Weight | 130g (100mm) |
| Colour | High-polish silver |
| Length (option) | 60mm (Classic Toyon), 70-130mm (C220 Classic) |
| SKU | DTW-RIG-ST220CLS-PAR |
| Brand | Ritchey |
| Shipping Weight | 0.3500kg |
