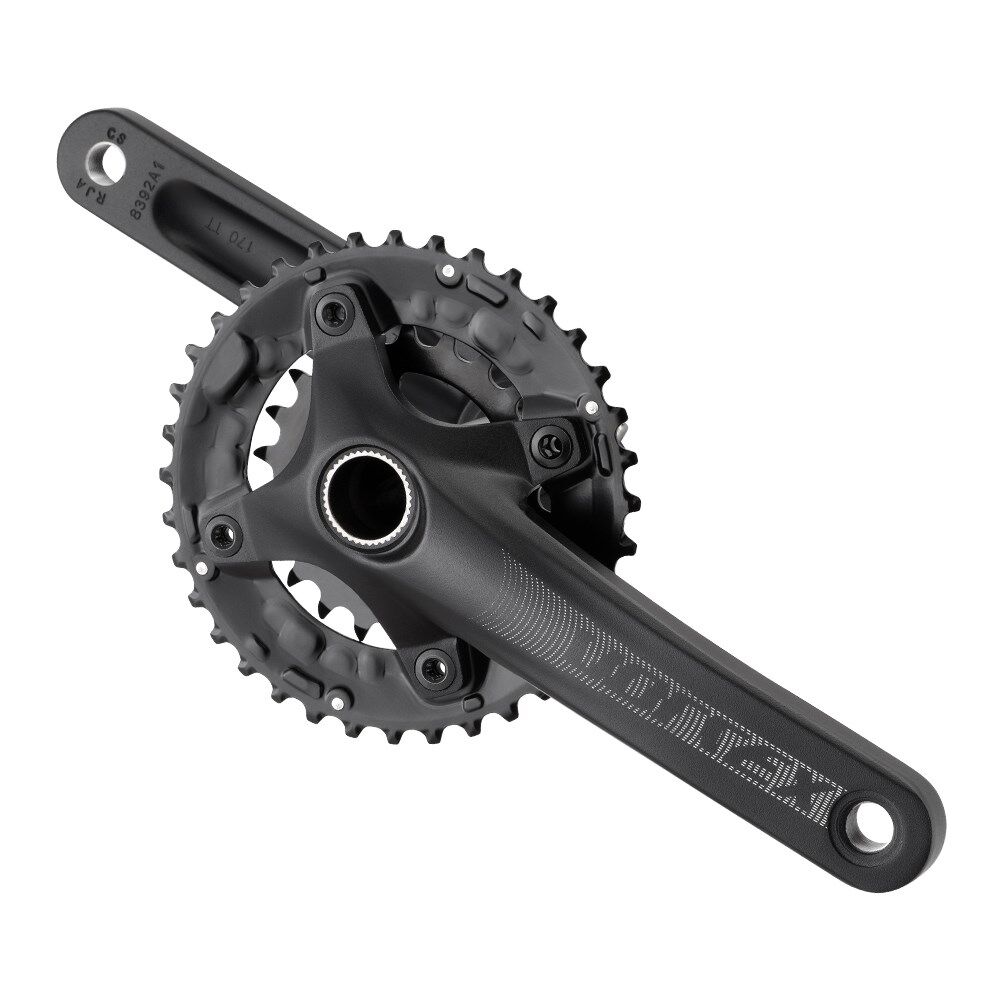

The Prowheel Vortex 501 is a 2× 10-speed MTB crankset with a 38-24 pairing, forged 6061-T6 arms, a CNC-detailed alloy outer ring and a threaded BSA 73 mm bottom bracket in the box — in non-Boost or Boost chainline.

Highlights

  • Forged AL-6061-T6 arms, black sand anodised
  • 38T alloy outer (CNC detail), 24T steel inner; 104 / 64 BCD; 10-speed
  • PW-BB73+ threaded BSA 73 mm bottom bracket included
  • 175 mm; Q-factor 176 mm

Options

  • Non-Boost (49mm)
  • Boost 148 (52mm)

Fit and compatibility

BSA 73 mm threaded shell (BB included). Pick the chainline for your frame: 49 mm for 142 mm rear spacing, 52 mm for Boost 148.

Pick your option from the dropdown; price and stock update to the exact variant.

Prowheel products supplied by Tune Cycles are covered against defects in materials and workmanship under the manufacturer's warranty, handled in Australia through the distributor. Normal wear and tear, crash or impact damage, incorrect installation, modification and misuse aren't covered.

For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim with the distributor for you. This cover is in addition to your rights under the Australian Consumer Law.

  • Forged AL-6061-T6 arms, black sand anodised
  • 38T alloy outer (CNC detail), 24T steel inner; 104 / 64 BCD; 10-speed
  • PW-BB73+ threaded BSA 73 mm bottom bracket included
  • 175 mm; Q-factor 176 mm
  • Options: Non-Boost (49mm), Boost 148 (52mm)
BrandProwheel
ModelVortex 501
TypeMTB double
Crank length175 mm
Chainrings38-24T
BCD104 / 64 mm
Speeds10-speed
Bottom bracketPW-BB73+ threaded BSA 73 mm bottom bracket included (TT)
Chainline49 mm non-Boost / 52 mm Boost
Q-factor176 mm
Arm materialForged AL-6061-T6, black sand anodised
Chainring materialAlloy 38T outer (CNC detail), steel 24T inner, 104 / 64 BCD

Options

OptionBoost
Non-Boost (49mm)Non-Boost
Boost 148 (52mm)Boost (148 mm)
SKU KWT-PRW-VORTEX
Brand Prowheel
