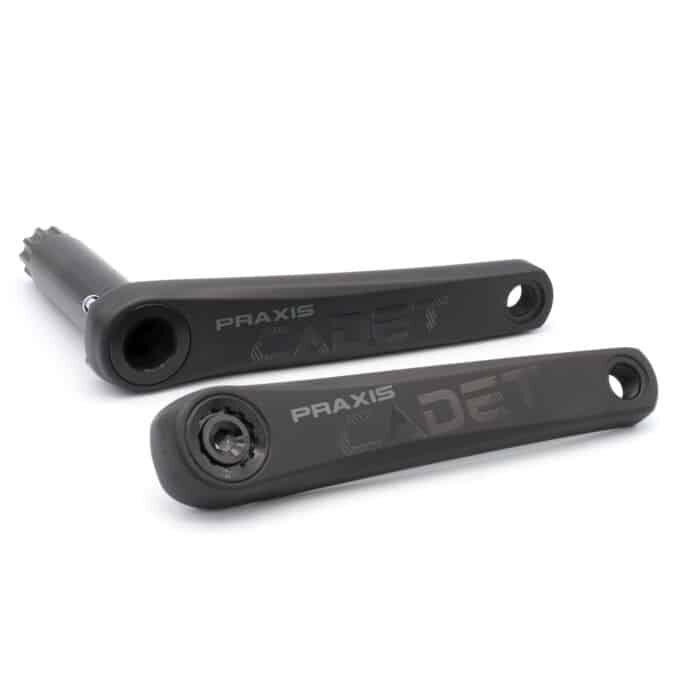

Praxis Cadet G2 MTB Crankset – 165mm, Arm Set Only
SKU code: DSG-PXC165-0000
In Stock
The second-generation Cadet is Praxis's forged alloy mountain bike crank for riders who want a solid, good-value crank for cross-country and trail riding. The Cadet HD uses reinforced forged arms for enduro and for riders who are hard on their gear.
Highlights
- Forged aluminium arms, updated Gen2 shape and spacing
- Cadet 558 g, Cadet HD 640 g (170 mm arm sets)
- Forged M30 alloy spindle (30 mm drive / 28 mm non-drive)
- 3-bolt direct-mount ring interface that takes any brand's 3-bolt DM ring
- 172 mm Q-factor
Cadet or Cadet HD?
The Cadet is Praxis's cross-country and trail crank and suits most riders. The Cadet HD has reinforced forged arms for enduro, and Praxis suggests it for larger riders and anyone who is really hard on their equipment or rides aggressive trails.
Chainline and rings
Praxis's Gen2 mountain bike cranks line the 3-bolt direct-mount interface up with the industry's standard ring offsets, so any brand's 3-bolt direct-mount ring gives the chainline you expect: a 0 mm offset ring gives a 55 mm chainline, a 3 mm offset ring gives 52 mm ("Boost") and a 6 mm offset ring gives 49 mm ("non-Boost"). A sticker on the back of the drive arm shows the options. Check which chainline your frame calls for before you choose.
The ring options come with a Praxis MTN DM1X ring: narrow-wide teeth, forged and machined 7000-series alloy, hard black anodised, and rated for 10/11/12-speed KMC, Shimano and SRAM chains. Praxis requires a clutch rear derailleur and recommends an upper chain guide for rough terrain.
Options
| Option | What you get | Chainline |
|---|---|---|
| 165mm, 170mm, 175mm | Cadet arms (XC / trail) | — |
| 160mm HD, 165mm HD, 170mm HD | Cadet HD arms (enduro) | — |
| Arm Set Only | Arms and spindle, no ring; every crank length above | — |
| 32T, 34T, 36T 0mm Offset | Direct-mount 1x ring, 0 mm offset; 165mm, 165mm HD, 170mm, 170mm HD | 55 mm |
| 32T, 34T, 36T 3mm Offset | Direct-mount 1x ring, 3 mm offset; 165mm, 165mm HD, 170mm, 170mm HD | 52 mm (Boost) |
Compatibility & fit
Bottom bracket: needs a Praxis M30 bottom bracket (30 mm drive / 28 mm non-drive bearing), sold separately: BSA, BB90/92, T47 external bearing, or BB30/PF30.
Drivetrain: 1x Shimano or SRAM with a clutch rear derailleur; chain compatibility follows the ring you fit.
Power: Praxis lists Power2Max (NG and NG Eco) and SRM 3-bolt power meters, SRM power pedals and Garmin Rally power pedals for this crank.
The Tune Cycles workshop can fit the bottom bracket and crankset for you as a separate workshop service. Threaded shells need the right BB tool and press-fit shells need a proper bearing press, so it pays to have the shell checked and the bottom bracket fitted correctly first. The main crank bolt is torqued to 48–52 Nm with a torque wrench.
Praxis warrants its components to be free from defects in materials and workmanship for 2 years from the original purchase date, for the original owner with proof of purchase. The warranty does not cover normal wear and tear (such as chainring tooth wear, worn anodising or coatings, bearing wear and general corrosion), or damage from a crash, impact, abuse, modification, or installation that does not follow Praxis's instructions and tools.
This is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Praxis's Australian distributor.
- Solid forged aluminium arms, Gen2 shape
- Cadet for XC/trail, reinforced Cadet HD for enduro
- Forged M30 30/28 mm alloy spindle
- 3-bolt direct-mount ring interface, standard offsets
- 8 mm alloy self-extracting main bolt
| Intended use | Cadet: XC / trail. Cadet HD: enduro |
|---|---|
| Material | Forged aluminium arms (HD: reinforced forging) |
| Spindle | Forged M30 alloy, 30 mm drive / 28 mm non-drive bearing |
| Bottom bracket | Praxis M30, sold separately |
| Ring interface | 3-bolt direct mount |
| Chainline | 55 mm (0 mm offset ring), 52 mm (3 mm offset), 49 mm (6 mm offset) |
| Q-factor | 172 mm |
| Weight | Cadet 558 g, Cadet HD 640 g (170 mm arm sets, no ring, Praxis figures) |
| Main bolt | 8 mm alloy, self-extracting; 48–52 Nm |
| Ring bolts | T25, 9 Nm |
| Options | Crank length: 165mm, 170mm, 175mm, 160mm HD, 165mm HD, 170mm HD. Chainring: Arm Set Only, 32T 0mm Offset, 34T 0mm Offset, 36T 0mm Offset, 32T 3mm Offset, 34T 3mm Offset, 36T 3mm Offset |
| SKU | DSG-PXG2-C165FAM |
| Brand | Praxis |
