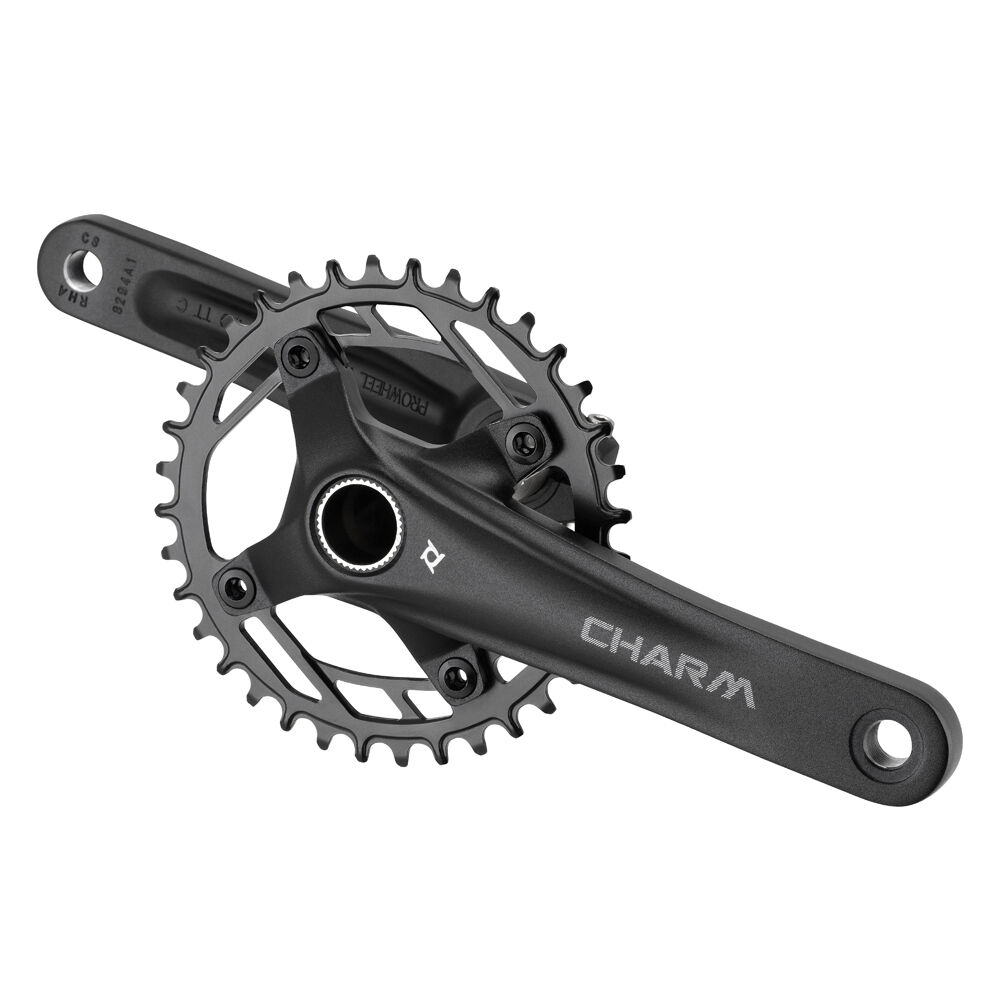

A Boost 1x mountain bike crankset with a 32T steel narrow-wide ring on a 104 BCD spider, forged aluminium arms and a BSA 73mm threaded bottom bracket in the box.

Highlights

  • 32T steel narrow-wide chainring on 104 BCD
  • Boost version, 53mm chainline
  • Forged AL-6061-T6 arms, black sand anodised
  • Rated by Prowheel for 9, 10 and 11-speed
  • BSA 73mm threaded bottom bracket included
  • 165mm, 170mm or 175mm

Room to change gearing

The 104 BCD spider lets you change ring size later, and Prowheel offers the FD04S ring from 32T to 40T.

What you get

The crankset with its 32T chainring, plus a BSA 73mm threaded bottom bracket.

Compatibility & fit

For Boost-spaced frames (Prowheel CHARM-FD04S-TT-B, 53mm chainline). The included bottom bracket suits frames with a BSA (English-threaded) 73mm shell. Prowheel also offers this crank with a BB92 press-fit set, which is not included. Prowheel rates this crank for 9, 10 and 11-speed drivetrains. Fitting is a separate workshop service and isn't included. Our Marrickville workshop can fit the crankset and bottom bracket and check your chainline.

Sizes & options

LengthChainringVersion
165mm32TBoost
170mm32TBoost
175mm32TBoost
Covered against manufacturing defects under Prowheel's warranty. Normal wear, crash damage and incorrect fitting are not manufacturing defects. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, Prowheel's Australian distributor.
  • 32T steel narrow-wide ring, 104 BCD
  • Boost, 53mm chainline
  • Forged AL-6061-T6 arms
  • 9, 10 and 11-speed
  • BSA 73mm threaded BB included
Crank length165mm, 170mm or 175mm
Chainring32T, steel, narrow-wide, black
BCD104mm
Chainline53mm (Boost)
Speed9 / 10 / 11-speed
Crank materialForged AL-6061-T6 aluminium
Crank finishBlack sand anodised
Q-factor / I-factor175 / 145mm
Bottom bracketBSA 73mm threaded, included
SKU KWT-P-PRW-FD04S
Brand PROWHEEL
Shipping Weight 0.9000kg
Shipping Width 0.120m
Shipping Height 0.040m
Shipping Length 0.150m
