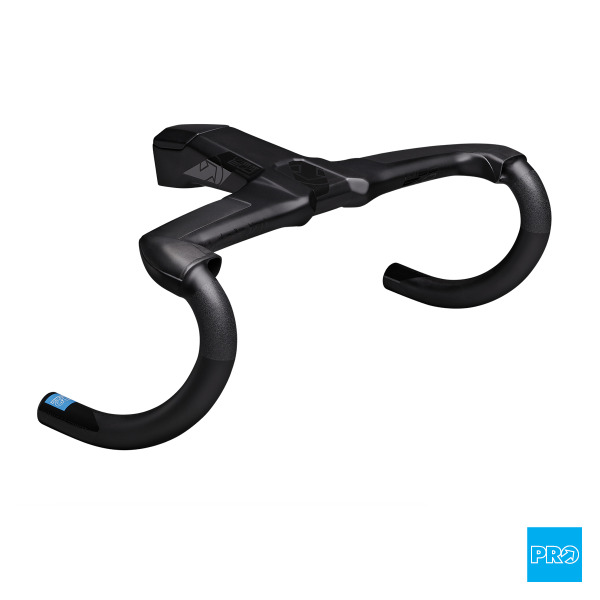

The PRO Vibe Evo Carbon is a one-piece integrated handlebar and stem unit built for road riders who want a clean, aerodynamic cockpit without compromise. Constructed from T700 carbon monocoque, it eliminates the bar-to-stem interface entirely — delivering a stiffer, lighter front end and a dramatically cleaner look than any separate bar-and-stem combination.

Highlights

• One-piece monocoque carbon: T700 carbon construction removes the bar-stem interface for maximum stiffness and minimal weight (from 395g).
• Full internal routing: Cables and hoses route entirely through the bar body — compatible with fully internal or semi-internal frame routing.
• Shimano Di2 optimised: Dedicated channel for Di2 bar-end junction box; clean exit ports for hydraulic brake hose routing.
• Ergonomic geometry: 80mm reach, 132mm drop, and a 5° outward flare at the drops for natural wrist alignment.
• Five hand positions: Tops, pursuit, corner grip, hoods, and drops — comfortable across climbs, sprints, and long road miles.
• Replaceable grip pads: Anti-slip silicone pads on the bar tops are replaceable and eliminate the need for bar tape on the flats.
• Stem angle adjustment: Included 1 1/8" shims allow ±2° of stem angle adjustment for fine-tuned fit.
• Integrated accessory mounts: Two direct-mount bolt positions for computers and accessories — no separate mount needed.

Aerodynamic & Ergonomic Design

The Vibe Evo's monocoque construction creates a seamless transition from stem to bar with no clamp bolts, no external cable housing, and no visual interruption. The compact bend — 80mm reach and 132mm drop — suits a wide range of road positions, while the gentle 5° flare at the drops opens up wrist angle for sustained comfort in the riding position. Anti-slip silicone grip pads on the top section are pre-installed and replaceable, keeping the cockpit clean and consistent over time.

Internal Routing & Di2 Integration

Cable and hose channels run through the full length of the bar body, supporting fully internal and semi-internal frame routing systems. The Vibe Evo is optimised for Shimano Di2 electronic drivetrains, with a dedicated housing channel for a bar-end junction box and clean port exits for hydraulic brake lines. The integrated design keeps the front end uncluttered regardless of drivetrain or brake specification.

Compatibility & Fit

This variant is 38cm wide (centre-to-centre) with a 105mm stem length. The Vibe Evo clamps directly to 1 1/4" steerer tubes; included 1 1/8" shims enable use on standard steerers with ±2° angle adjustment. Optimised for Shimano Di2 electronic systems (Dura-Ace 9200, Ultegra R8100) and hydraulic disc brakes. Best suited to frames with full or semi-internal cable routing. Spacer shim set included. Available in 38, 40, and 42cm widths with 105, 115, or 125mm stem lengths.
