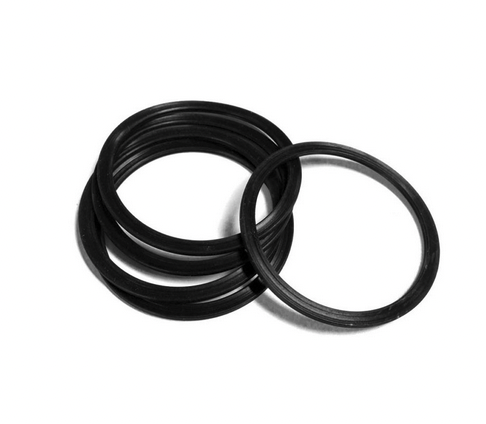

The O-ring on the non-drive cup of a Praxis collet (conversion) bottom bracket takes up small differences in frame shell width. If yours has worn out, this is the replacement part.

Where it goes

It fits on the non-drive side cup only. The drive cup uses a separate two-piece collet (a plastic spacer and a rubber expanding elastomer), which Praxis sells as its own part.

Fitting

Fitting is a separate workshop service and isn't included in the price. Refitting a press-in bottom bracket needs the right bearing press and BB tools; the Tune workshop can inspect the cups and bearings, fit the new O-ring and reinstall the bottom bracket.

Compatibility & fit

  • Praxis expanding-collet (conversion) bottom brackets for BB30/PF30 frames; Praxis's parts page also lists its BBRight collet BBs.
  • Non-drive side cup only.
  • Not for Praxis threaded bottom brackets or other brands' bottom brackets.

Praxis warrants its components to be free from defects in materials and workmanship for 2 years from the original purchase date, for the original owner. Praxis lists the rubber O-ring for frame width variance as a normal wear-and-tear item, so wear from use isn't covered, nor is damage from incorrect installation or the wrong tools.

This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Praxis's Australian distributor.

  • Genuine Praxis replacement O-ring
  • Non-drive width-tolerance O-ring
  • For Praxis collet/conversion BBs
  • Compensates for frame shell width variation
  • Sold singly
ProductNon-drive width-tolerance O-ring
Quantity1
PositionNon-drive side cup
FitsPraxis collet/conversion BBs (BB30/PF30; Praxis also lists BBRight)
SKU DSG-PXOring
Brand Praxis
