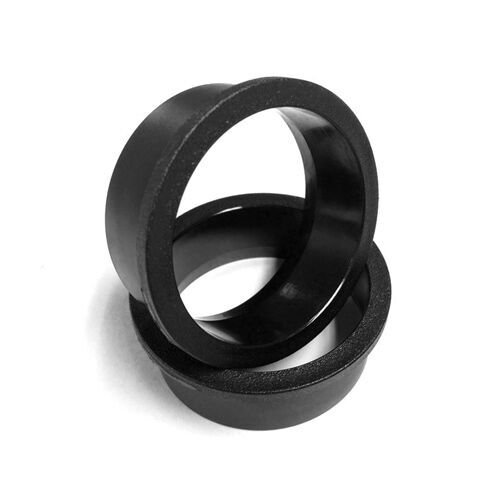

Praxis's BB30/PF30 conversion bottom brackets use a Delrin sleeve in PF30 frames. This is the replacement, handy if the original has gone missing or you are moving the BB to a different frame.

Which sleeve?

Pick the sleeve that matches your Praxis conversion BB and frame. The sleeve goes on for PF30 frames (46mm bore) and is left off for BB30 frames (42mm bore). Press-fit and collet bottom brackets need a press and the right cup tools; the Tune Cycles workshop can fit your BB as a separate workshop service.

Options

Frame StandardChoose it if
PF30 68mm RoadYou have a Praxis 68mm road conversion BB going into a PF30 frame
PF30 73mm MTBYou have a Praxis 73mm MTB conversion BB going into a PF30 frame
Specialized OSBB RoadYou have a Praxis 68mm road conversion BB going into a 2014-or-earlier Specialized road frame

Compatibility & fit

Only for Praxis conversion bottom brackets with the expanding collet: the BB30/PF30 versions of Praxis's M30, M30 THRU, M24/GXP and Shimano-fit BBs. It is not a sleeve for other brands' bottom brackets.

Praxis warrants its components to be free from defects in materials or workmanship for two years from the original purchase date, to the original owner with proof of purchase. Normal wear and tear, damage from incorrect installation or the wrong tools, crash, impact, abuse and any modification are not covered. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Praxis's Australian distributor.
  • Genuine Praxis replacement sleeve
  • Delrin construction
  • For Praxis expanding-collet conversion BBs
  • PF30 68mm road, PF30 73mm MTB and Specialized OSBB road versions
BrandPraxis
MaterialDelrin
FitsPraxis expanding-collet conversion (BB30/PF30) bottom brackets
OptionsFrame Standard: PF30 68mm Road; PF30 73mm MTB; Specialized OSBB Road
Praxis codesTP-3068 (68mm); TP-3073 (73mm); TP-3002 (Specialized OSBB road)
SKU DSG-PXBBSLEEVES
Brand Praxis
