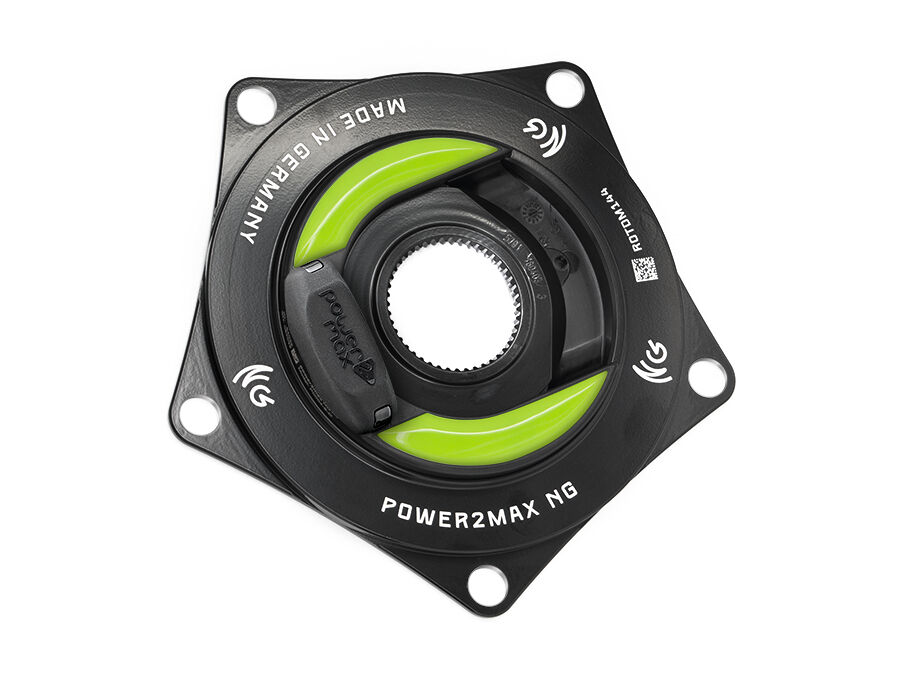

power2max NGeco Track Power Meter Spider Rotor ALDHU 144 BCD
SKU code: FES-LM-NET-ROTDM-001.0144
Sold Out
Built for the velodrome: the NGeco Track turns your existing Rotor ALDHU or VEGAST crankset into a power meter that takes standard 144 BCD track chainrings.
Highlights
- Spider power meter for track bikes, 144 BCD
- Fits Rotor ALDHU and VEGAST cranksets, 30mm or 24mm axle
- ±2% accuracy, power and cadence
- ANT+ and Bluetooth
- Replaceable CR2450 coin cell, up to 300 hours
- 174g
Made for track
The NGeco Track was developed for track bikes and takes 144 BCD track chainrings, so you keep your preferred ring while gaining power and cadence data.
Simple, reliable data
The NGeco measures total power and cadence at the spider, so there are no pedal or crank-arm sensors to swap between bikes. Active temperature compensation and automatic zero-point adjustment mean no manual calibration, and the CR2450 coin cell is user-replaceable and lasts up to 300 hours.
Compatibility & fit
Requires a Rotor ALDHU or VEGAST crankset (not included) with a 30mm or 24mm axle. Not compatible with the Rotor Track Axle. Can only be used with a Q-factor of 147mm. Takes 144 BCD chainrings (not included). Our workshop can fit the power meter to your crankset and pair it with your head unit as a separate service, not included in the price.
Button battery warning: this product contains a button/coin cell battery. A lithium battery can cause severe or fatal injuries in 2 hours or less if it is swallowed or placed inside any part of the body. Keep batteries out of reach of children. If you think a battery may have been swallowed or placed inside any part of the body, seek immediate medical attention.
power2max covers NGeco power meters with a 2-year manufacturer's warranty. For warranty support, return the product to Tune Cycles and we'll manage the claim with power2max's Australian distributor.
- Spider power meter for track bikes, 144 BCD
- Fits Rotor ALDHU and VEGAST cranksets, 30mm or 24mm axle
- ±2% accuracy, power and cadence
- ANT+ and Bluetooth
- Replaceable CR2450 coin cell, up to 300 hours
- 174g
| Discipline | Track |
|---|---|
| Crankset | Rotor ALDHU or VEGAST (30mm or 24mm axle) |
| BCD | 144mm |
| Q-factor | 147mm only |
| Weight | 174g |
| Measurement | Total power from both legs (spider-based) |
| Accuracy | ±2% |
| Metrics | Power, cadence |
| Power range | 10–2999 W |
| Torque range | 0–250 Nm |
| Cadence range | 20–250 rpm |
| Battery | CR2450 coin cell (replaceable) |
| Battery life | Up to 300 hours |
| Connectivity | ANT+, Bluetooth Low Energy |
| Temperature compensation | Active |
| Calibration | Automatic zero-point adjustment |
| Water resistant | Yes |
| Fitment | Loctite 243 or similar threadlocker recommended |
| In the box | Power meter, silicone cover, quick-start guide |
| SKU | FES-LM-NET-ROTDM-001.0144 |
| Brand | Power2Max |
