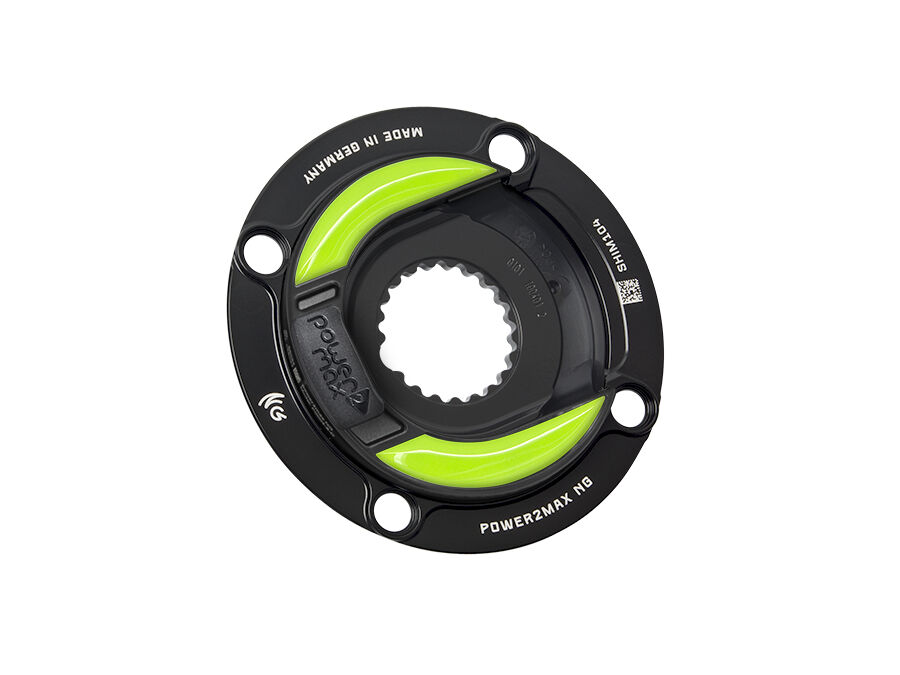

power2max NG MTB Power Meter Spider Shimano Direct Mount 104 BCD
SKU code: FES-LM-NGM-SHIM0-001.0104
Sold Out
The NG MTB brings ±1% accuracy and left/right balance to Shimano 1x mountain bikes, replacing the direct mount chainring with a 104 BCD spider.
Highlights
- Spider power meter for Shimano MTB direct mount 1x cranksets
- 104 BCD; Boost and standard chainline setups
- ±1% accuracy; L/R balance and pedal smoothness
- Rechargeable, up to 150 hours per charge
- ANT+ and Bluetooth
- 126g
Rechargeable and precise
The NG measures at the spider with ±1% accuracy and adds left/right balance and pedal smoothness to power and cadence. Active temperature compensation and automatic zero-point adjustment mean no manual calibration, and the rechargeable battery runs up to 150 hours per charge.
Compatibility & fit
For Shimano MTB direct mount cranksets with a removable spider in a 1x setup; compatible cranksets include M9100, MT900, M8100, M7100 and M6100. Works with Boost and standard chainline setups. Takes a 104 BCD chainring (not included); power2max recommends a Shimano 12-speed compatible chainring. Our workshop can fit the power meter to your crankset and pair it with your head unit as a separate service, not included in the price.
power2max covers NG power meters with a 2-year manufacturer's warranty. For warranty support, return the product to Tune Cycles and we'll manage the claim with power2max's Australian distributor.
- Spider power meter for Shimano MTB direct mount 1x cranksets
- 104 BCD; Boost and standard chainline setups
- ±1% accuracy; L/R balance and pedal smoothness
- Rechargeable, up to 150 hours per charge
- ANT+ and Bluetooth
- 126g
| Discipline | MTB, 1x |
|---|---|
| Crankset | Shimano MTB direct mount with removable spider (e.g. M9100, MT900, M8100, M7100, M6100) |
| BCD | 104mm |
| Chainline | Boost or standard |
| Weight | 126g |
| Measurement | Total power from both legs (spider-based) |
| Accuracy | ±1% |
| Metrics | Power, cadence, left/right balance, pedal smoothness |
| Power range | 10–2999 W |
| Torque range | 0–250 Nm |
| Cadence range | 20–250 rpm |
| Battery | Rechargeable lithium-ion |
| Battery life | Up to 150 hours per charge |
| Connectivity | ANT+, Bluetooth Low Energy |
| Temperature compensation | Active |
| Calibration | Automatic zero-point adjustment |
| Water resistant | Yes |
| Fitment | Loctite 243 or similar threadlocker recommended |
| In the box | Power meter, silicone cover, USB charging cable, 2D decal, quick-start guide |
| SKU | FES-LM-NGM-SHIM0-001.0104 |
| Brand | Power2Max |
