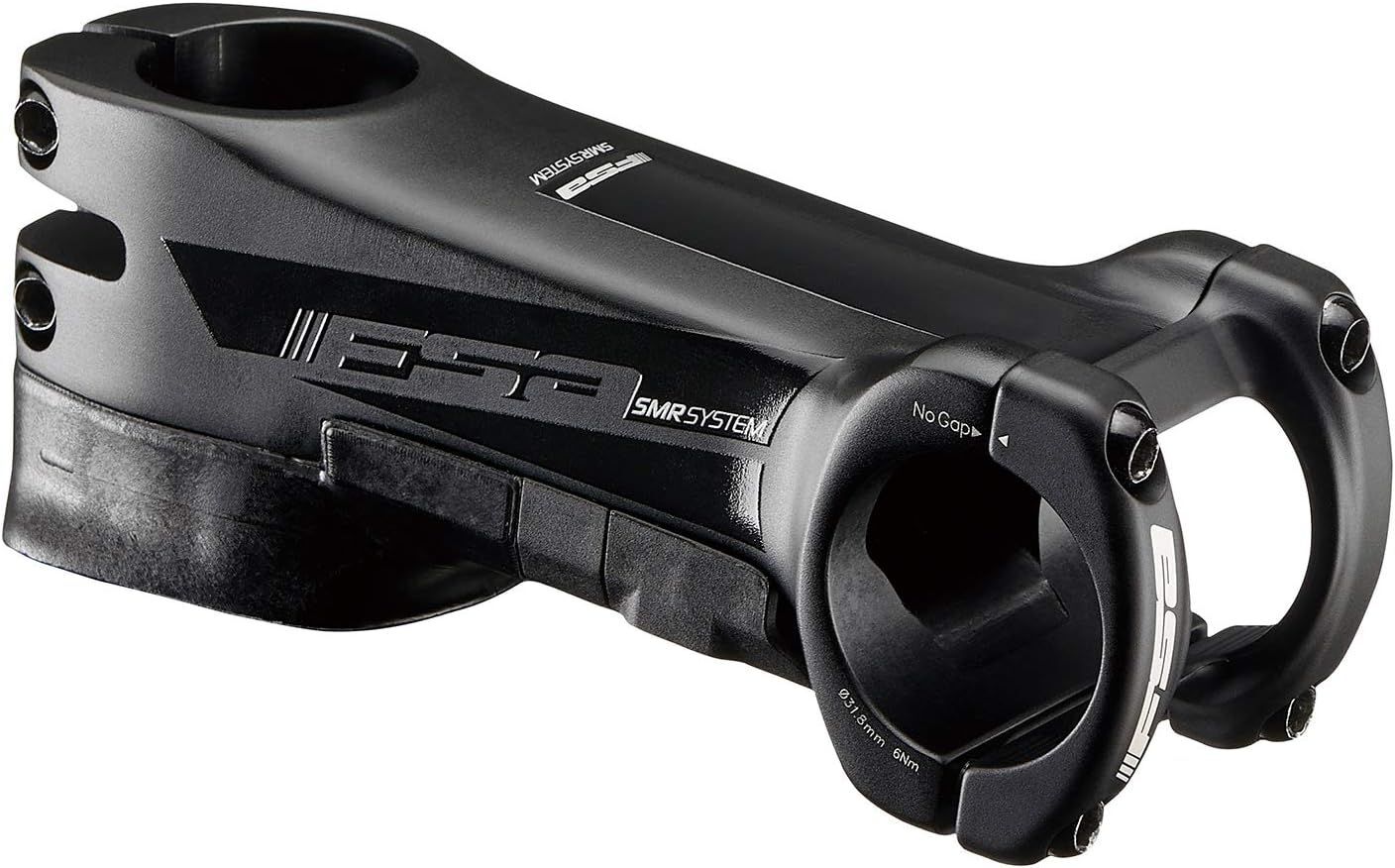

A road stem from FSA's NS SMR range: 130mm long at -6°, for 31.8mm handlebars.

Highlights

  • 130mm length
  • -6° angle
  • 31.8mm bar clamp
  • 33.5mm fork clamp stack height
  • 28.6mm (1-1/8in) steerer
  • SMR (with a compatible headset) routing

Details

The NS SMR stem is part of FSA's SMR (Smart Cable Routing) system, a stem and headset combination that allows integrated or semi-integrated routing. It's 3D forged and CNC machined AL6061 with an alloy faceplate and chromoly hardware.

Fit and compatibility

It clamps 31.8mm bars and takes 33.5mm of steerer. It fits a 28.6mm (1-1/8in) steerer. A 130mm length stretches the position out, which suits larger frames and a lower, longer fit.

Fitting

Tighten the faceplate bolts evenly in a cross pattern so the gaps top and bottom stay equal, and torque the faceplate and steerer bolts to the figures marked on the stem. Our workshop can fit it and set the headset preload for you.

If you're unsure about width, length or clamp size, tell us what's on the bike now and we'll help you pick the right one.

FSA warrants its products against defects in materials and workmanship for two years from the original purchase, for the original purchaser. Crash damage, over-tightened bolts and incorrect installation aren't covered.

For a warranty claim, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. FSA products come with guarantees that can't be excluded under the Australian Consumer Law, and this cover is in addition to those rights.

  • Length: 130mm
  • Angle: -6°
  • Bar clamp: 31.8mm
  • Fork clamp stack height: 33.5mm
  • Steerer: 28.6mm (1-1/8in)
  • Routing: SMR (with a compatible headset)
  • Weight: 235g (100mm)
Length130mm
Angle-6°
Bar clamp31.8mm
Fork clamp stack height33.5mm
Steerer28.6mm (1-1/8in)
RoutingSMR (with a compatible headset)
Weight235g (100mm)
SKU BPW-FSA-0308
Model # FSA-0308
Barcode # 4710243888803
Brand FSA
