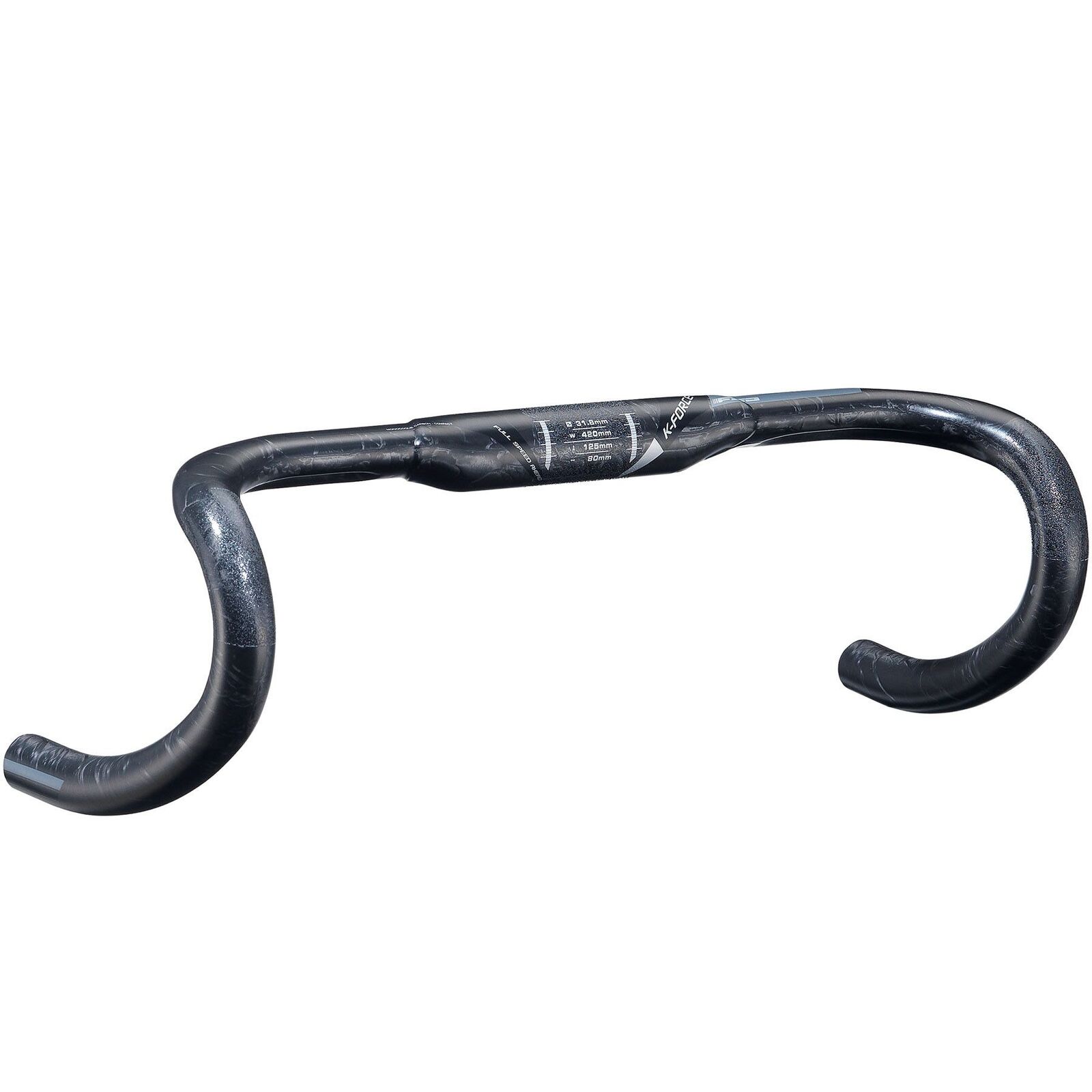

A carbon road handlebar from FSA's K-Force Compact range, 400mm wide with a 31.8mm stem clamp.

Highlights

  • Width: 400mm (c-c)
  • Clamp diameter: 31.8mm
  • Drop: 125mm
  • Reach: 80mm
  • Routing: ACR, SCR and Di2 compatible

Details

K-Force is FSA's top carbon range. The K-Force Compact bar is continuous UD carbon with a shallow drop, short reach and a slight outward flare, reinforced and textured clamp areas, and routing for ACR, SCR and Di2.

Fit and compatibility

It needs a stem with a 31.8mm bar clamp. With a 125mm drop and 80mm reach, it's a shallow shape that keeps the drops within easy reach. It's carbon, so fit it with a torque wrench at the torque marked on the bar, stem and levers, and use carbon assembly paste. 400mm suits riders with narrower shoulders and is a common size on small and medium road bikes.

Fitting

Swapping a bar means moving the levers, tape and any computer mount across, so it's a good time to check brake hose and cable lengths too. Our workshop can fit and wrap it for you.

If you're unsure about width, length or clamp size, tell us what's on the bike now and we'll help you pick the right one.

FSA warrants its products against defects in materials and workmanship for two years from the original purchase, for the original purchaser. Bent bars and damage from bar ends or accessories with metal clamps aren't covered. FSA carbon products aren't covered if they were installed without following FSA's recommended fastener torque.

For a warranty claim, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. FSA products come with guarantees that can't be excluded under the Australian Consumer Law, and this cover is in addition to those rights.

  • Clamp diameter: 31.8mm
  • Width: 400mm (c-c)
  • Drop: 125mm
  • Reach: 80mm
  • Outward bend: 4°
  • Material: UD carbon
  • Routing: ACR, SCR and Di2 compatible
Clamp diameter31.8mm
Width400mm (c-c)
Drop125mm
Reach80mm
Outward bend4°
MaterialUD carbon
RoutingACR, SCR and Di2 compatible
SKU BPW-FSA-0115
Model # FSA-0115
Barcode # B5F0390331
Brand FSA
