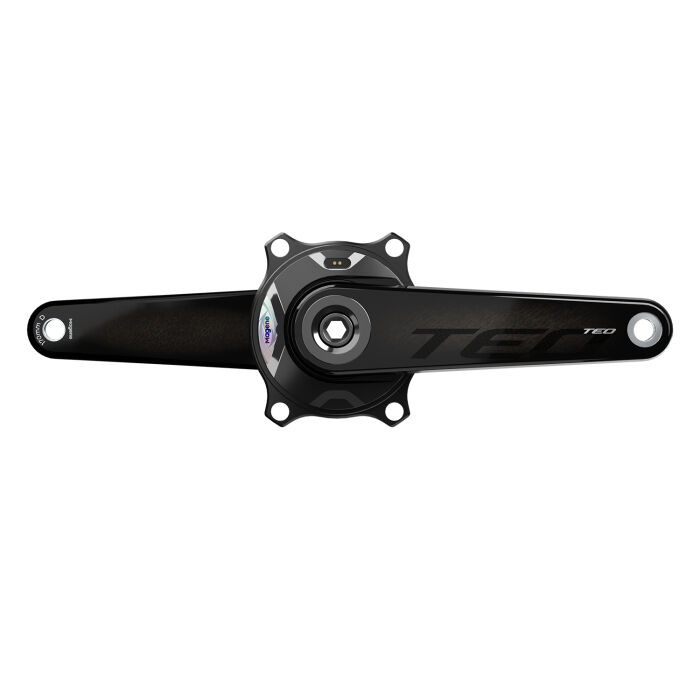

Magene TEO P515 Carbon Power Meter Crankset – 160mm
SKU code: FES-TEO-P515-160
Sold Out
A race-weight carbon crankset with power built in. The TEO P515 pairs Magene's P515 spider power meter with HI-MOD carbon crank arms, so you get ±1% power data and a 425g crankset in one compatible package.
Highlights
- HI-MOD carbon TEO crank arms; 425g total (170mm)
- P515 spider-based power meter, ±1% accuracy
- Power, cadence, left/right balance and pedalling smoothness
- ANT+ and Bluetooth; magnetic charging
- 29mm spindle, 4-bolt 110BCD spider (chainrings not included)
- Five crank lengths: 160mm to 175mm
Light, stiff carbon arms
The TEO arms are made from HI-MOD carbon fibre using a dual-channel high-pressure forming process. Magene tests them at 1500N per side for minimal deflection, so your effort goes into the drivetrain.
Power you can trust
High-precision strain gauges and acceleration sensors with temperature compensation give ±1% accuracy across a 0-2500W range and 20-240rpm cadence. Calibrate automatically, by backpedalling or manually.
Long battery life
Magene quotes up to 380 hours per charge in lab testing (real-world life varies with temperature and use). The unit is IPX7 rated and recharges with the included magnetic cable.
Options
| Crank length | Notes |
|---|---|
| 160mm | Same crankset and power meter |
| 165mm | Same crankset and power meter |
| 170mm | Quoted weight 425g ±10g is for this length |
| 172.5mm | Same crankset and power meter |
| 175mm | Same crankset and power meter |
Compatibility & fit
Uses a 29mm spindle. Magene lists it as compatible with large-diameter bottom brackets including T47 and BB386 (BB external diameter up to 57mm). The bottom bracket is not included; check your frame's BB standard with us before ordering. Takes 4-bolt 110BCD chainrings (not included). Chainline 44.25mm, Q-factor 148mm. Installation is available from our workshop as a separate service, not included in the price.
Magene covers power meters and EXAR wheelsets with a 2-year warranty against manufacturing defects, from the date of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Magene's Australian distributor.
- HI-MOD carbon crank arms, 425g (170mm)
- Spider-based power, ±1% accuracy
- ANT+ and Bluetooth
- IPX7, magnetic charging
- 29mm spindle, 110BCD 4-bolt
- Automatic, backpedal and manual calibration
| Measurement | Spider-based (P515) |
|---|---|
| Accuracy | ±1% |
| Power range | 0-2500W |
| Cadence range | 20-240rpm |
| Data | Power, cadence, left/right balance, pedalling smoothness |
| Crank material | HI-MOD carbon fibre |
| Spindle | 29mm, 7075 aluminium |
| Chainring standard | 4-bolt 110BCD (chainrings not included) |
| Chainline | 44.25mm |
| Q-factor | 148mm |
| Crank lengths | 160, 165, 170, 172.5, 175mm |
| Weight | 425g ±10g (170mm, incl. spider); crank arms 325g |
| Battery life | Up to 380 hours (Magene lab figure) |
| Charging | Magnetic |
| Connectivity | ANT+, Bluetooth |
| Water resistance | IPX7 |
| Operating temperature | -20°C to 50°C |
| Calibration | Automatic, backpedal, manual |
| In the box | P515 spider, TEO carbon crank, magnetic charging cable, stickers, quick start guide, lock ring for conversion kit |
| SKU | FES-P-29226 |
| Brand | Magene Cycling |
