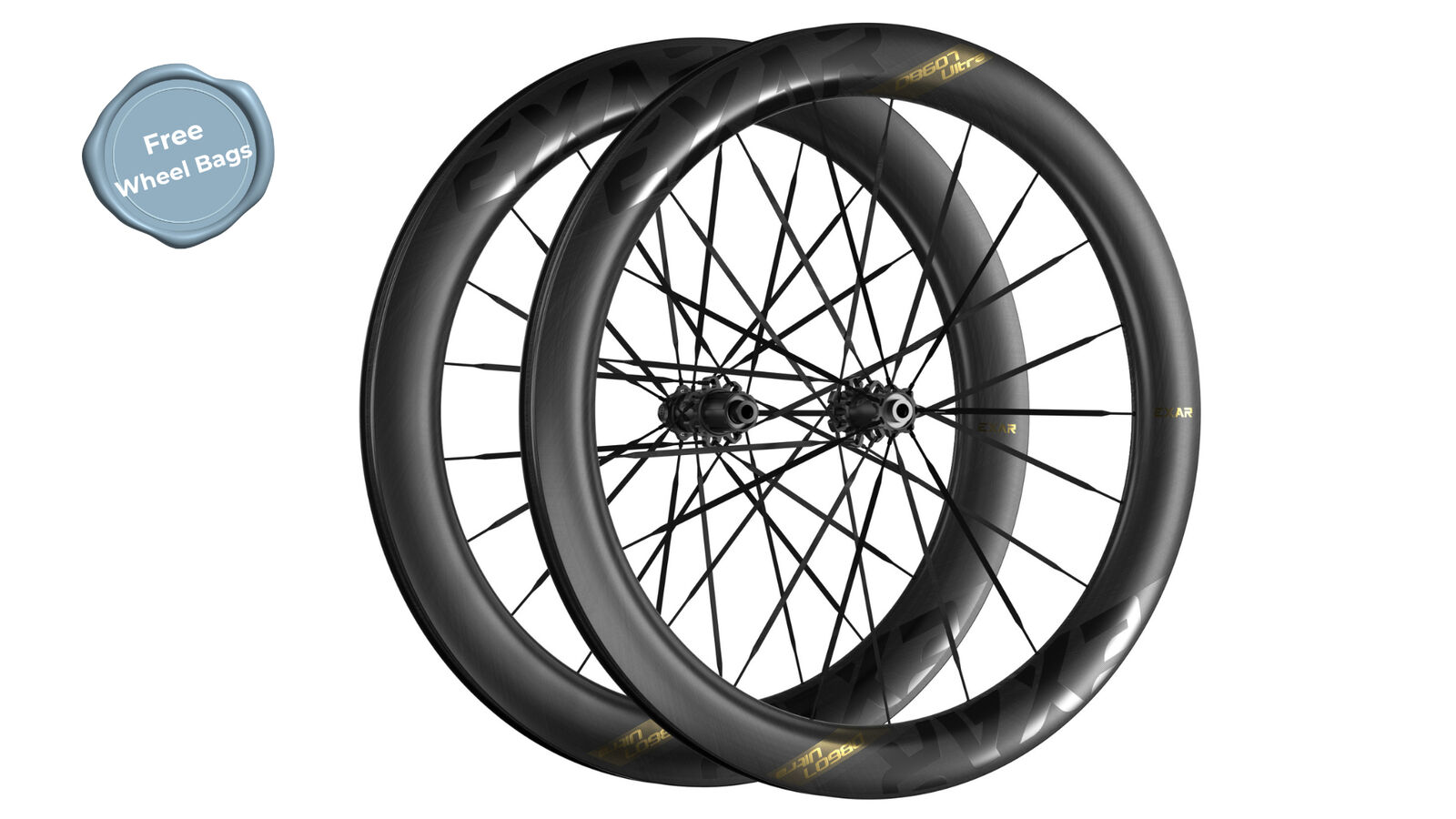

The EXAR DB607 Ultra is Magene's deepest disc-brake race wheelset: a 60mm front and 67mm rear rim, HI-MOD carbon spokes and ceramic bearings for riders who want aero speed without a heavy wheelset.

Highlights

  • 60mm front / 67mm rear HI-MOD T800 carbon rims
  • HI-MOD carbon fibre spokes, 2.8g each
  • Ceramic bearings and a 36T flat ratchet (54T available separately)
  • 1460g per pair (±3%)
  • 23mm internal width, tubeless or clincher, 28-32c recommended
  • Passed UCI impact testing

Lower front, higher rear

Magene pairs a shallower front rim with a deeper rear. The rear carries the aero and inertia benefit, while the lower front keeps steering calm in crosswinds.

Carbon spokes and ceramic bearings

Each wheel uses HI-MOD carbon spokes in a 2:1 balanced lacing pattern, with rear tension of 130kgf ±10% drive side and 110kgf ±10% non-drive side. Ceramic bearings and a 36-tooth flat ratchet round out the hubs; the ratchet can be swapped for Magene's 54T ratchet.

Rim shape for modern tyres

A 23mm internal width is built around 28-32c tyres, giving a flatter tyre-to-rim profile for aerodynamics and comfort. Magene lists maximum pressures of 90psi clincher and 80psi tubeless with a 32c tyre.

Compatibility & fit

Disc brake only, for 100mm front and 142mm rear thru-axles. Supplied with a Shimano HG 11-speed freehub; Campagnolo N3W and SRAM XDR freehub bodies are sold separately. Compatible with tubeless and clincher tyres; tubeless rim tape, rim plugs and tubeless valves are included per Magene. Maximum system weight (rider plus bike) is 110kg. Wheel set-up, tyre fitting and tubeless set-up are available from our workshop as a separate service, not included in the price.

Magene covers power meters and EXAR wheelsets with a 2-year warranty against manufacturing defects, from the date of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Magene's Australian distributor.

  • 60mm front / 67mm rear HI-MOD carbon rims
  • HI-MOD carbon fibre spokes, 2:1 lacing
  • Ceramic bearings, 36T flat ratchet
  • 1460g per pair (±3%)
  • 23mm internal width, tubeless or clincher
  • Shimano HG 11-speed freehub fitted
Brake Disc
Rim depth 60mm front, 67mm rear
External width 32mm front, 30mm rear (Magene)
Internal width 23mm
Rim material HI-MOD T800 carbon fibre
Spokes HI-MOD carbon fibre, 21H front and rear, 2:1 lacing
Bearings Ceramic
Ratchet 36T (54T available separately)
Axle 100mm front, 142mm rear thru-axle
Freehub Shimano HG 11-speed fitted; Campagnolo N3W and SRAM XDR sold separately
Tyres Tubeless or clincher, 28-32c recommended
Max tyre pressure 90psi clincher / 80psi tubeless (32c)
Weight 1460g ±3% (without skewers and rim tape)
Max system weight 110kg rider plus bike
SKU FES-DB607-ULTRA-25
Brand Magene Cycling
