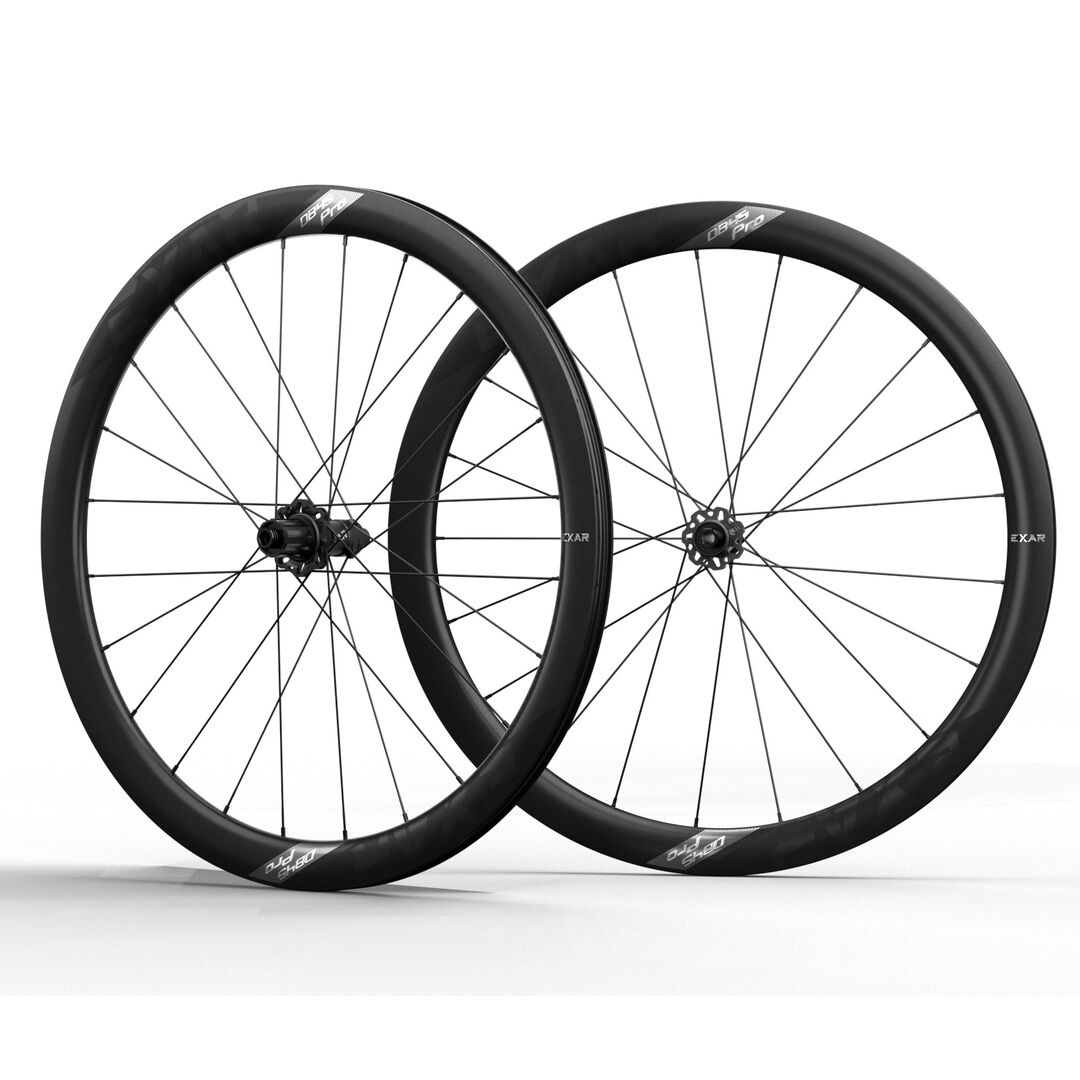

A light, all-round 45mm carbon disc wheelset that suits everything from fast group rides to hilly days out, with dependable steel spokes and a 36T ratchet hub.

Highlights

  • 45mm HI-MOD carbon rims, 27mm external width
  • Pillar Wing21 flat spokes with self-locking nipples
  • Centre Lock disc hubs, 100/142mm thru-axle
  • 1410g per pair
  • 36T flat ratchet (54T available separately)
  • Passed UCI impact testing

All-round depth

At 45mm deep, the Pro rim balances aero gains with low weight and manageable crosswind behaviour. The 27mm external width is shaped for 25c and 28c tyres to sit flush with the rim.

Hubs and spokes

Pillar Wing21 flat spokes and self-locking nipples keep the build stiff and in true. The disc hubs use 2:1 balanced lacing, and a 36-tooth flat ratchet gives quick, durable engagement.

Compatibility & fit

Disc brake (Centre Lock rotors), for 100mm front and 142mm rear thru-axles. Supplied with a Shimano HG 11-speed freehub; Campagnolo N3W and SRAM XDR freehub bodies are sold separately. Compatible with tyres from 25c, 28-32c suggested; Magene lists maximum pressures of 120psi clincher and 110psi tubeless with a 25c tyre. Wheel set-up, tyre fitting and tubeless set-up are available from our workshop as a separate service, not included in the price.

Magene covers power meters and EXAR wheelsets with a 2-year warranty against manufacturing defects, from the date of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Magene's Australian distributor.

  • 45mm HI-MOD carbon rims
  • 27mm external / 20mm internal width
  • Pillar Wing21 flat spokes
  • Centre Lock disc hubs
  • 1410g per pair
  • Shimano HG 11-speed freehub fitted
Brake Disc, Centre Lock
Rim depth 45mm
External width 27mm
Internal width 20mm
Rim material HI-MOD carbon fibre
Spokes Pillar Wing21 flat; 21H front, 24H rear, 2:1 lacing
Ratchet 36T (54T available separately)
Axle 100mm front, 142mm rear thru-axle
Freehub Shimano HG 11-speed fitted; Campagnolo N3W and SRAM XDR sold separately
Tyres 25c and above, 28-32c suggested
Max tyre pressure 120psi clincher / 110psi tubeless (25c)
Weight 1410g
SKU FES-DB45-PRO
Brand Magene Cycling
