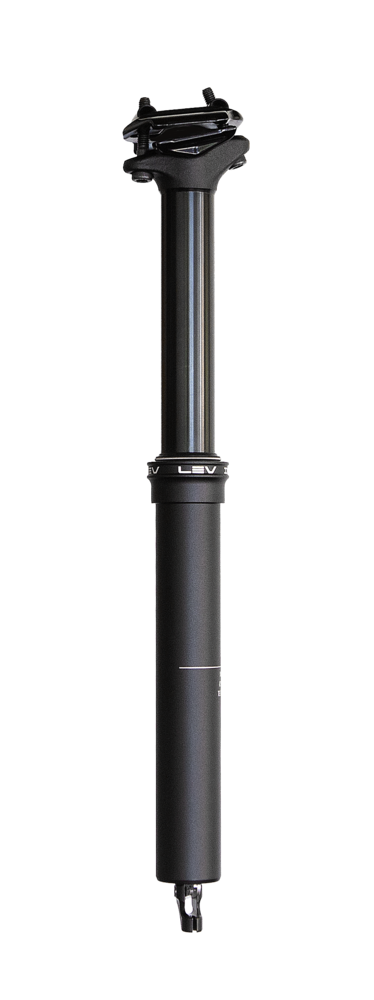

LEV Integra is KS's internally routed dropper post, built with a short insertion-length-to-travel ratio so it suits frames with limited seat tube room.

Highlights

  • Designed for internal frame routing
  • Actuator rotates 360° to align with the cable exit from inside the frame
  • Adjustable air pressure (return speed), top valve
  • 7000-series alloy stanchion, alloy mast
  • Short insertion length to travel ratio
  • Compatible with all KS remotes (sold separately)

Internal routing, short insertion

Cylindrical upper clamp nuts and a steeper head clamp bolt angle simplify installation and increase clamping force, while a lighter, rotating bottom actuator reduces actuation effort. The short insertion-length-to-travel ratio makes LEV Integra a good fit for frames that don't have much room in the seat tube.

Compatibility & fit

No remote is included; the post is compatible with all KS remotes, sold separately. Our workshop can fit the post and run the internal cable routing.

Sizes & options

DiameterTravelLengthInsertWeight
27.2mm65mm375mm255mm378g
27.2mm100mm410mm255mm481g
27.2mm120mm460mm285mm523g
30.9mm65mm295mm180mm364g
30.9mm100mm330mm180mm397g
30.9mm125mm380mm205mm478g
30.9mm150mm430mm230mm519g
30.9mm175mm490mm250mm559g
30.9mm200mm530mm280mm590g
31.6mm65mm295mm180mm375g
31.6mm100mm330mm180mm399g
31.6mm125mm380mm205mm496g
31.6mm150mm430mm230mm540g
31.6mm175mm490mm250mm582g
31.6mm200mm530mm280mm612g
34.9mm125mm383mm210mm558g
34.9mm150mm433mm235mm615g
34.9mm175mm483mm260mm657g
34.9mm200mm533mm285mm712g
KS warrants this product for two years from the original purchase date, covering repair or replacement of defective parts for the original owner. Normal wear and tear, routine maintenance, improper installation or use, and any modification are excluded. For warranty support, return the product to Tune Cycles and we'll manage the claim with Link Sports, KS's Australian distributor.
  • Internal frame routing
  • 360-degree rotating actuator for cable alignment
  • Adjustable air pressure, top valve
  • 7000-series alloy stanchion
  • Short insertion length to travel ratio
  • Remote sold separately
Diameters available27.2mm, 30.9mm, 31.6mm, 34.9mm
Travel options65mm to 200mm, depending on diameter
Cable routingInternal
ActuatorAir-sprung hydraulic cartridge, rotates 360°, top valve air adjustment
Stanchion7000-series alloy
RemoteSold separately; compatible with all KS remotes
SKU LNK-P-KS-LEV-INTEGRA
Brand KS
Shipping Weight 0.7000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.500m
