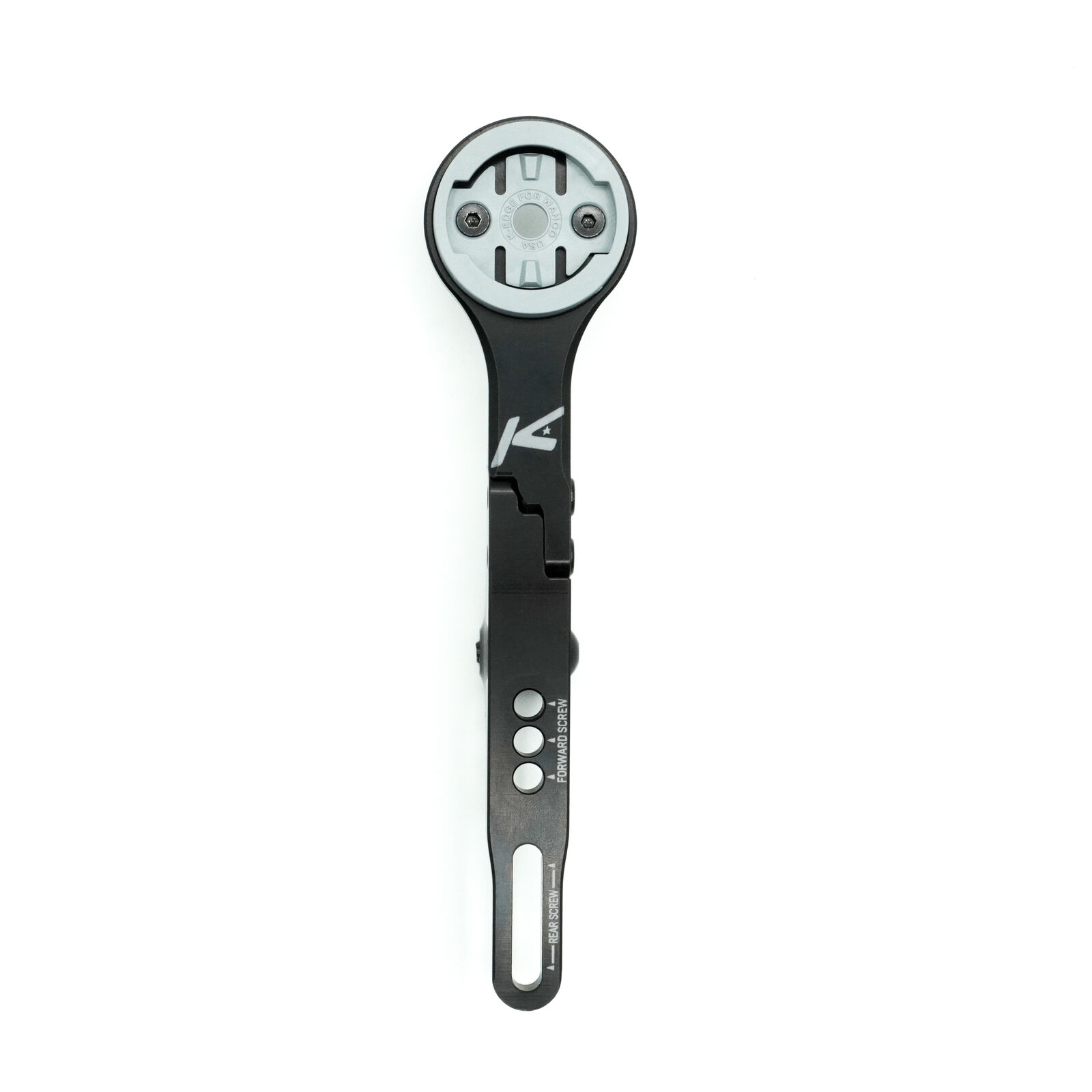

K-EDGE IHS XXL Integrated Handlebar Mount for Wahoo Combo
SKU code: FES-K13-2605IC-BLK
Integrated one-piece cockpits deserve a mount that matches. The IHS XXL bolts to your bar/stem's in-line mounting points and places your Wahoo on-centre and out front, with a light or camera tucked underneath. It is a longer, stronger version of K-EDGE's IHS mount, built for the Wahoo ELEMNT ACE and other large computers.
Highlights
- For one-piece integrated bar/stems with in-line, two-bolt mounting
- Longer, stronger XXL arm for large, heavy computers
- GoPro-style Combo interface underneath, 243 g max accessory load
- −7° articulation for computer positioning
- CNC-machined aluminium, anodised black
- M5 hardware included
Installation matters
Fit one bolt in the rear slot and the other in one of the mounting holes. Never fit both bolts in the rear slot. If your cockpit needs a smaller bolt, use an 8.4 mm OD washer for a secure fit. Incorrect IHS installation is not covered by K-EDGE's warranty.
Compatibility & fit
All Wahoo cycling computers, including the Wahoo ELEMNT ACE (ACE only on bars with a flat leading edge).
Fits integrated (one-piece) handlebar/stems with in-line, two-bolt mounting, including most Canyon integrated cockpits. Canyon cockpits need M4 × 20 mm (0.7 pitch) hardware, not included; the K-EDGE Canyon fit kit is sold separately. K-EDGE lists it as not compatible with Canyon H36, H11 and CP0039/CP0047/CP0048 bar/stems, Gear Groove interfaces, Cervelo Wishbone, Ventum, Colnago R41, Vision Metron 5D, Black Inc., BMC ICS and Scott Syncros cockpits, among others. Check your cockpit before ordering.
Tune Cycles can fit this as a separate workshop service; fitting is not included in the price.
K-EDGE guarantees its products to be free of manufacturing defects for the lifetime of the product, for the original purchaser. Normal wear, incorrect installation or over-torquing, modification, crash damage and use with incompatible devices or over-limit accessory payloads are not covered. This sits alongside your rights under the Australian Consumer Law.
For warranty support, return the product to Tune Cycles and we'll manage the claim with K-EDGE's Australian distributor.
- For one-piece integrated bar/stems with in-line, two-bolt mounting
- Longer, stronger XXL arm for large, heavy computers
- GoPro-style Combo interface underneath, 243 g max accessory load
- −7° articulation for computer positioning
- CNC-machined aluminium, anodised black
- M5 hardware included
| Mounting | Integrated bar/stem, in-line two-bolt |
|---|---|
| Hardware | M5 bolts included (Canyon M4 kit sold separately) |
| Computer interface | Wahoo, replaceable insert |
| Accessory payload | 243 g max (light/camera) |
| Articulation | −7° |
| Material | CNC-machined aluminium, anodised black |
| Weight | 67.4 g |
| Warranty | Lifetime (K-EDGE) |
| SKU | FES-K13-2605IC-BLK |
| Brand | K-EDGE |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.100m |
| Shipping Length | 0.800m |
