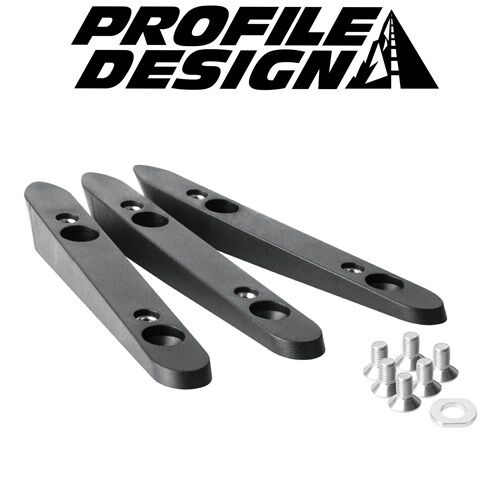

Tilted aerobars tip a between-the-arms bottle forward. The HSF BTA Wedge Set levels it again, so the bottle fills fully and the straw system works as it should.

Highlights

  • Three 5° wedges, up to 15° total
  • Fits a standard BTA mount with a standard cage mount
  • 64 mm bolt spacing
  • 39 g

Don't use an extender

Profile Design says the wedges aren't compatible with bottle cage extenders or extension brackets. An extender adds leverage and load and could loosen or break the mounting hardware, so fit the wedges directly to a compatible mounting point.

Compatibility & fit

Profile Design pairs the wedges with the HSA 800 EVO, Aero HC and HSF BTA Garmin Mount systems, and lists compatibility as the HSF Aero HC 800 or a BTA mount with a standard cage mount. Mounting bolts 1 Nm.

Fitting is a separate workshop service and isn't included in the price. Our workshop can mount it as part of an aerobar fitting and position set-up.

Profile Design warrants this product to the original retail purchaser against defects in materials and workmanship for two years from the date of original retail purchase. The warranty does not cover products that have been modified, misused, involved in a crash or impact, or damaged by improper assembly or by failing to follow the installation instructions.

This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.

For warranty support, return the product to Tune Cycles and we'll manage the claim with Profile Design's Australian distributor.

  • Three 5° wedges for up to 15° of tilt
  • Levels a straw-based front hydration system
  • Pairs with HSA 800 EVO, Aero HC and HSF BTA Garmin Mount
  • 64 mm bolt spacing
  • Not for use with cage extenders
ConstructionInjected nylon/glass fibre
Tilt3 x 5° (15° total)
Bolt spacing64 mm
CompatibilityHSF Aero HC 800 or BTA mount with a standard cage mount
Mounting bolt torque1 Nm
ColourMatte black
Weight (brand-listed)39 g
SKU BCP-ACHSFTS1
Model # ACHSFTS1
Barcode # 0723660010607
Brand Profile Design
Shipping Weight 0.0790kg
Shipping Width 0.120m
Shipping Height 0.100m
Shipping Length 0.800m
