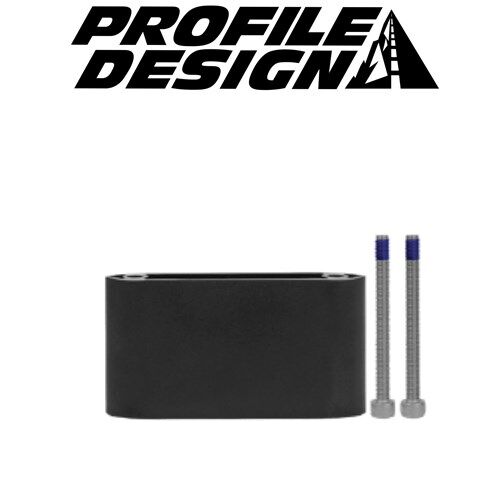

The HSA Riser works with Profile Design's aerobar-mounted bottle brackets to lift the bottle by 45 mm, so you can put it where it's easiest to reach.

Highlights

  • Raises the bottle 45 mm
  • Stack two for 90 mm
  • Fits any 65 mm spaced BTA cage mount
  • Pair with Profile Design BTA wedges to fine-tune bottle placement

Compatibility & fit

Profile Design lists the riser for the HSA Mini BTA mount, HSF BTA, Aerodrink BTA tilt bracket, HC systems, and BTA mounts with a standard 65 mm cage mount. Bolts for the 45 mm height are included; the 90 mm kit (a separate listing) has two risers and bolts for both heights. Tighten the mounting bolts to 1 Nm.

Profile Design warrants this product to the original retail purchaser against defects in materials and workmanship for two years from the date of original retail purchase. The warranty does not cover products that have been modified, misused, involved in a crash or impact, or damaged by improper assembly or by failing to follow the installation instructions.

This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.

For warranty support, return the product to Tune Cycles and we'll manage the claim with Profile Design's Australian distributor.

  • 45 mm rise
  • 65 mm bolt spacing
  • 83.5 mm long
  • Injected nylon/glass fibre, matte black
  • 18.3 g (brand-listed)
Height45 mm (stackable to 90 mm)
Bolt spacing65 mm
Length83.5 mm
ConstructionInjected nylon/glass fibre
CompatibilityHSA Mini BTA mount, HSF BTA, Aerodrink BTA tilt bracket, HC systems, BTA mounts with a standard cage mount
Includes1 × 45 mm riser, bolts
Mounting bolt torque1 Nm
ColourMatte black
Weight (brand-listed)18.3 g
SKU BCP-ACHSA45RISKT1
Model # ACHSA45RISKT1
Barcode # 0723660012397
Brand Profile Design
Shipping Weight 0.2000kg
Shipping Width 0.120m
Shipping Height 0.100m
Shipping Length 0.800m
