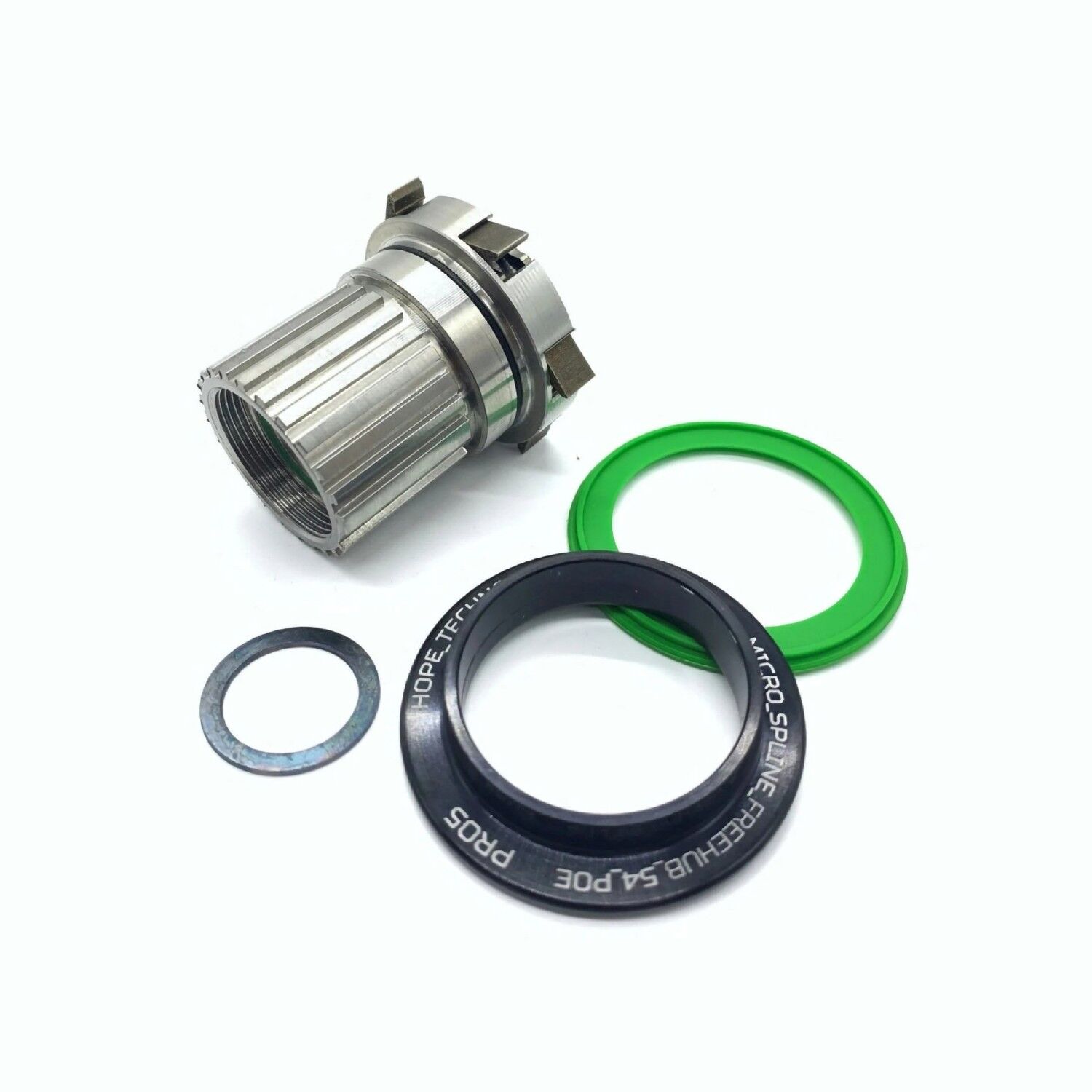

Built for the extra torque of an eBike motor. This Hope Pro 5 freehub assembly pairs a steel body with Hope's 4-pawl, 54-engagement eBike mechanism – the same setup Hope specifies for its Pro 5 E-Bike rear hub.

Highlights

  • Steel body built for eBike durability
  • 54 points of engagement, 4 wire-cut steel pawls
  • Heavy-duty pawl springs for eBike loads
  • Shimano HG (11-speed), Shimano Microspline (12-speed) or SRAM XD
  • Supplied without a drive-side end cap, or with the X12 end cap on the Micro Spline body

How it works

Steel body with Hope's updated 4-pawl design and heavy-duty pawl springs, giving 54 points of engagement for durability under motor load. The assembly comes ready to slide onto the hub axle, with its bearings and seal already fitted, so a standard swap is quick on the workbench.

End cap

Choose No End Cap to keep the drive-side cap from your current freehub, or X12 End Cap on the Micro Spline body for a 12mm thru-axle frame. Micro Spline uses its own drive-side caps, so if you are changing to or from Micro Spline, choose the X12 version.

Options

Freehub BodyPart number
Shimano HGHUB556
Shimano MicrosplineHUB558
SRAM XDHUB557

Compatibility & fit

For Hope Pro 5 rear hubs only – not Pro 4 or earlier. Hope lists these steel bodies as the freehub for its Pro 5 E rear hub and doesn't publish them as an option for the standard Pro 5, so ask us before fitting one there. Choose the body for your cassette and check your axle standard and end cap before ordering. The body swaps over without special tools (see our Pro 5 hub service guide), or book it in and we fit it at the workshop.

Covered by the manufacturer's warranty against defects in materials and workmanship. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
  • Steel freehub body
  • 54 points of engagement
  • 4 pawls with heavy-duty springs
  • Wire-cut high-strength steel pawls
  • Bearings and seal fitted
  • No end cap included
  • Made in Barnoldswick, UK
BrandHope
HubPro 5 rear (E-Bike specification)
Body materialSteel
Engagement54 points
Pawls4
End capNot included
OptionsFreehub Body: Shimano HG, Shimano Microspline, SRAM XD
SKU BSP-HOP-P-PRO52
Brand Hope
Shipping Weight 0.2000kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
