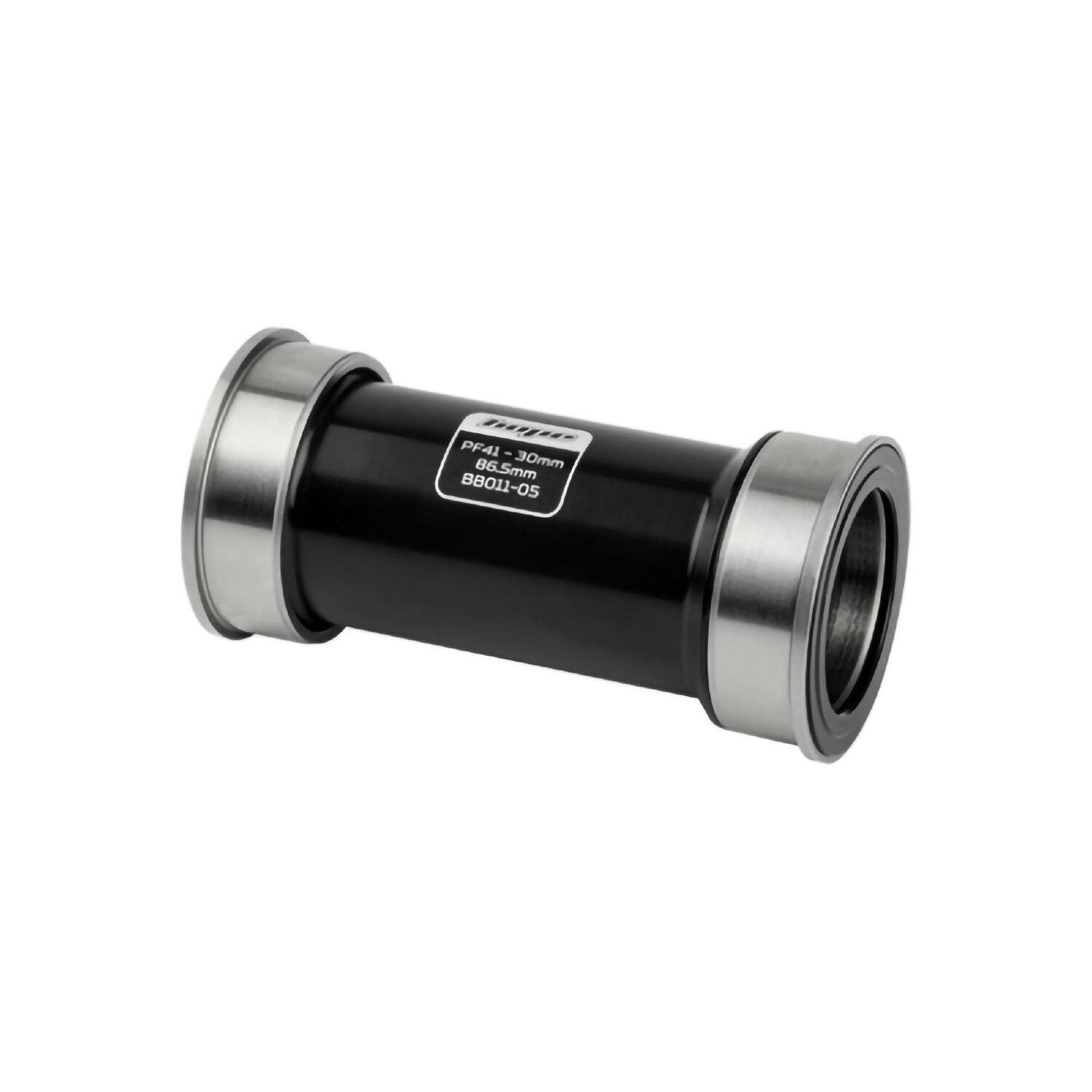

Press fit creaking and short-lived bearings are a common gripe. Hope's PF41 answers it with bearing cups that thread into a centre tube, locking the assembly together in the frame for a secure, quiet fit.

Highlights

  • Cups thread into a sealed centre tube for a secure fit
  • For 41mm press fit shells with 30mm crank axles
  • Custom-designed, Swiss-made stainless bearings (2024 update)
  • External bearing shields
  • Convertors included for 29mm crank axles
  • Easy to service with replaceable parts

Updated for 2024

Hope's 30mm PF41 now uses a custom-designed, Swiss-made stainless bearing, allowing a full assembly with a fully sealed internal centre tube and external bearing shields. Hope quotes 77g.

Fitting

A specific Hope fitting tool is required (sold separately). Bottom bracket installation is a separate Tune Cycles workshop service – book a workshop service.

Options

Shell WidthHope part number
86.5mmBBPF418630SSN
92mmBBPF419230SSN
107mmBBPF4110730SSN
121mmBBPF4112130SSN

Compatibility & fit

For frames with a 41mm press fit shell and 30mm crank axles; convertors for 29mm axles (such as SRAM DUB) are included. Choose the shell width that matches your frame – check it before ordering.

Hope Technology covers its components for two years from the original date of purchase against manufacturer defects in material and workmanship. Proof of purchase is required, and damage caused by misuse or by not following Hope's instructions is not covered. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
  • PF41 press fit, threaded centre tube
  • 86.5mm, 92mm, 107mm or 121mm shell width
  • 30mm crank axle
  • Swiss-made stainless bearings
  • External bearing shields
  • 29mm axle convertors included
StandardPF41 (41mm press fit shell)
Crank axle30mm (29mm convertors included)
BearingsCustom Swiss-made stainless
Weight77g (Hope figure, 30mm)
Fitting toolRequired, sold separately
OptionsShell Width: 86.5mm, 92mm, 107mm, 121mm
SKU BSP-HOP-P-PF41
Brand Hope
