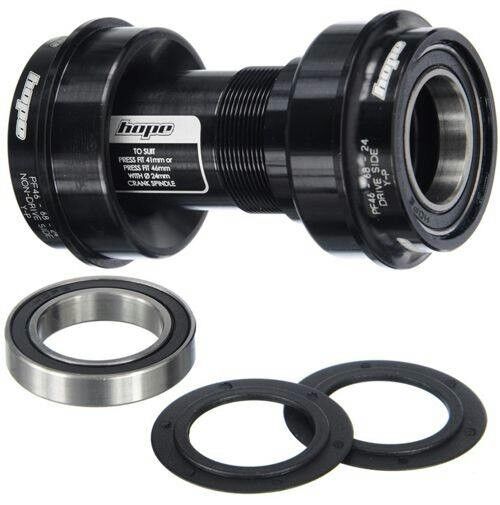

Hope's PF46 bottom bracket takes the guesswork out of 46mm press fit shells. The bearing cups are pressed in and held by a screw-in centre tube, preventing slipping and play for a quiet, secure fit.

Highlights

  • Cups held by a screw-in centre tube to prevent slipping and play
  • Replaceable stainless steel cartridge bearings
  • For 24mm or 30mm crank axles
  • Suits 68, 73 and 83mm PF46 shells
  • Short versions for cranks with shorter axles
  • Weight from 112g (Hope figure)

Choosing a version

Pick your frame's shell width, then your crank axle diameter. The 30mm "Short" 83mm version assembles to 83mm wide (versus 111mm for the standard 83mm/30mm unit) — Hope's compatibility chart shows which suits your crankset.

Fitting

A specific Hope fitting tool (HTTPFA) is required and sold separately. Installation is a separate Tune Cycles workshop service — book a workshop service.

Options

Shell widthCrank axleColour
68mm24mm or 30mmBlack
73mm24mm or 30mmBlack
83mm30mm, or 30mm ShortBlack

Compatibility & fit

For 46mm press fit (PF46, often called PF30) shells. Truvativ GXP and 28.99mm (DUB) conversions are available separately for some versions. Check shell width and crank axle length before ordering.

Hope Technology covers its components for two years from the original date of purchase against manufacturer defects in material and workmanship. Proof of purchase is required, and damage caused by misuse or by not following Hope's instructions is not covered. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
  • PF46 press fit with threaded centre tube
  • Stainless steel cartridge bearings
  • 24mm and 30mm axle versions
  • 68, 73 and 83mm shell widths
  • Fitting tool HTTPFA required (sold separately)
  • Weight from 112g
StandardPF46 (46mm press fit shell)
BearingsStainless steel cartridge, replaceable
ColourBlack
WeightFrom 112g (Hope figure)
Fitting toolHTTPFA, sold separately
Options68mm/24mm, 68mm/30mm, 73mm/24mm, 73mm/30mm, 83mm/30mm, 83mm/30mm Short
SKU BSP-HOPBBPF46SB
Brand Hope
