HB-M8110-B

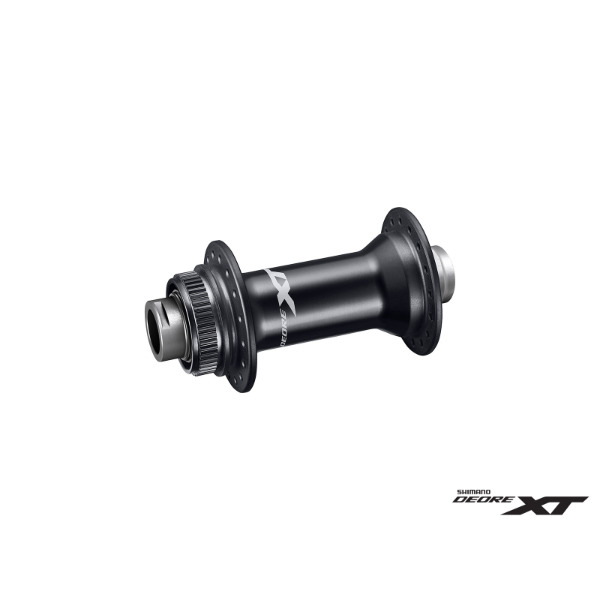

SHIMANO DEORE XT - Front Hub - CENTER LOCK - Disc Brake - 110x15 mm E-THRU Axle

With simple setup and reliable trail performance, the SHIMANO DEORE XT front hub is perfect for custom MTB wheel builds.

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • Simple setup and reliable trail performance
  • Easy disc brake rotor installation with spline mount and lock ring
  • CENTER LOCK
  • Toolless 15 mm skewer system optimizes rigidity and weight
  • E-THRU axle
  • Labyrinth & Contact Sealing
  • O.L.D.: 110 mm
  • MODEL NO: HB-M8110-B
  • DEORE XT M8000 Series
  • Series color
  • Average weight: 147
  • Brake type: CENTER LOCK disc brake
  • Axle Fixing method: 15 mm E-THRU
  • External serration disc brake rotor lock ring without
  • Flange distance: 70.2(mm)
  • Offset: 5.7(mm)
  • P.C.D. left / right: 44/44(mm)
  • Thru Axle (Length x Inner diameter ; mm) 100 x 15
  • Bearing Cone: CBN
  • Bearing Cup: Polish
  • Bearing Stainless ball
  • Disc mount Outer serration rotor lock ring without
  • Flange diameter: 52.8(mm)
  • Flange distance: 70.2(mm)
  • Internal grease sleeve
  • O.L.D: 110(mm)
  • Offset: 5.7
  • Spoke hole 28H
  • Spoke hole 32H
  • Spoke hole 36H
SKU SHM-EHBM8110BBX
Barcode # 4550170447724
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
