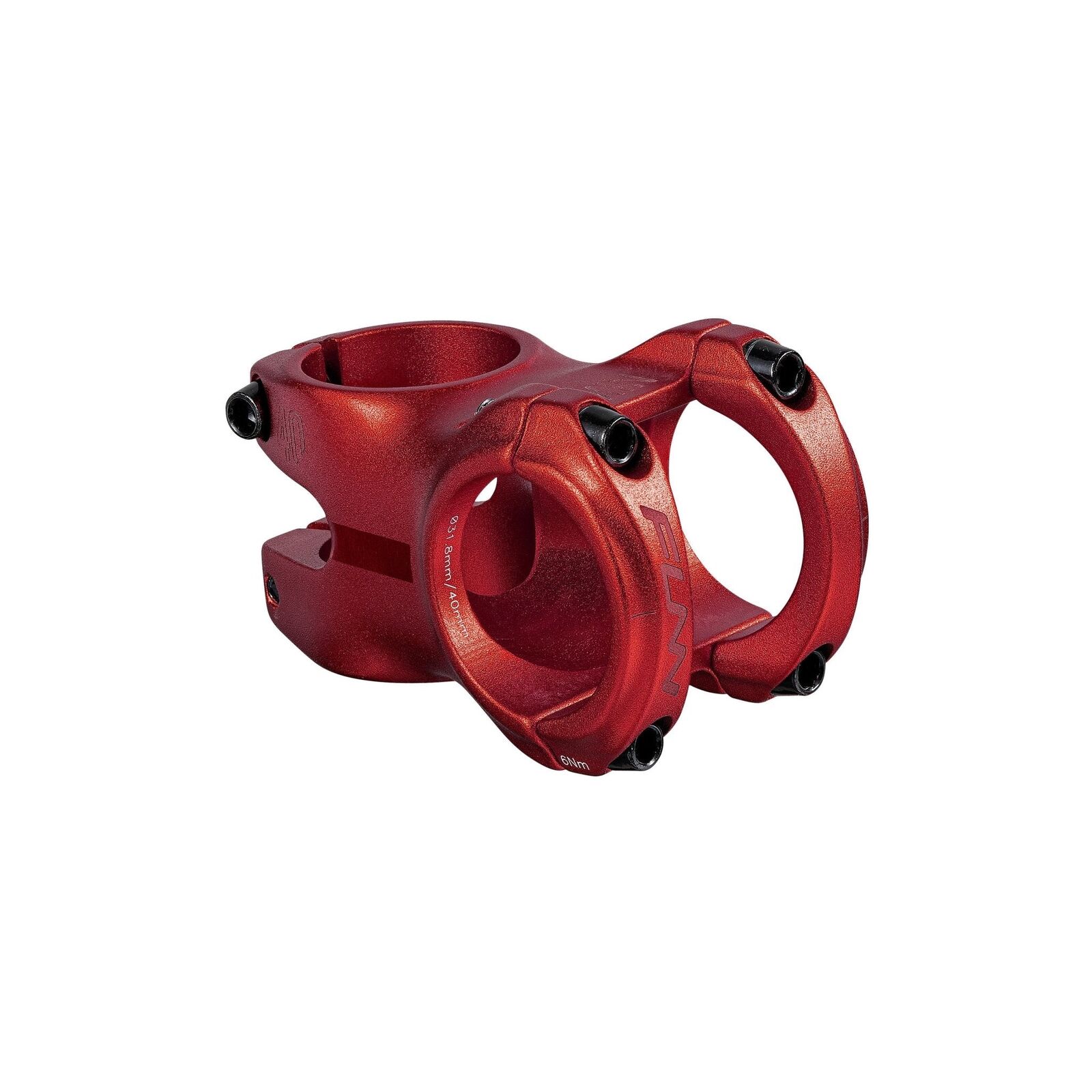

A budget-friendly stem that does not look or feel like one. 3D forging lets the wall thickness follow the loads, which keeps the Nixie at around 120g, and the sandblasted, mirror-contrast finish looks anything but entry level.

Highlights

  • 3D-forged AL6061
  • 40mm or 50mm length, both short for quick steering
  • 31.8mm handlebar clamp
  • Zero rise, 40mm stack height
  • 120g (40mm) or 122g (50mm)
  • Six colours

Short and quick

Both lengths are short by trail standards, so the steering stays quick and your weight stays off the front wheel on steep ground. Length also changes your reach, so moving 10mm is a fit change as well as a feel change. The Nixie is also part of FUNN's junior line-up alongside the Speedrun bar and Hilt JR grips.

Fitting

Keep the gaps between faceplate and stem body even top and bottom, and tighten the bolts in a cross pattern, building up gradually to 6Nm.

Compatibility & fit

  • Steerer: 1-1/8in
  • Handlebar clamp: 31.8mm only; there is no 35mm version
  • Needs at least a 50mm straight centre section on the handlebar

Our workshop can fit the stem and set your bar height as a separate service.

Sizes & options

LengthColourWeight
40mmBlack120g
40mmRed120g
40mmGrey120g
40mmBlue120g
40mmOrange120g
40mmGreen120g
50mmBlack122g
50mmRed122g
50mmGrey122g
50mmBlue122g
50mmOrange122g
50mmGreen122g
This FUNN product is covered against defects in materials and workmanship. Normal wear, crash or impact damage, and damage from incorrect fitting or misuse are not manufacturing defects, and your rights under Australian Consumer Law are not affected. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, FUNN's Australian distributor.
  • Short 3D-forged AL6061 stem
  • 31.8mm clamp, 0° rise
  • 40mm stack height
  • 40mm or 50mm length
  • Around 120g, six colours
Clamp diameter31.8mm
Lengths40mm, 50mm
Rise0°
Stack height40mm
Steerer clamp1-1/8in
MaterialAL6061, 3D forged
FinishSandblasted with mirror contrast
Weight120g (40mm) / 122g (50mm)
Bar straight section50mm minimum
Faceplate torque6Nm
