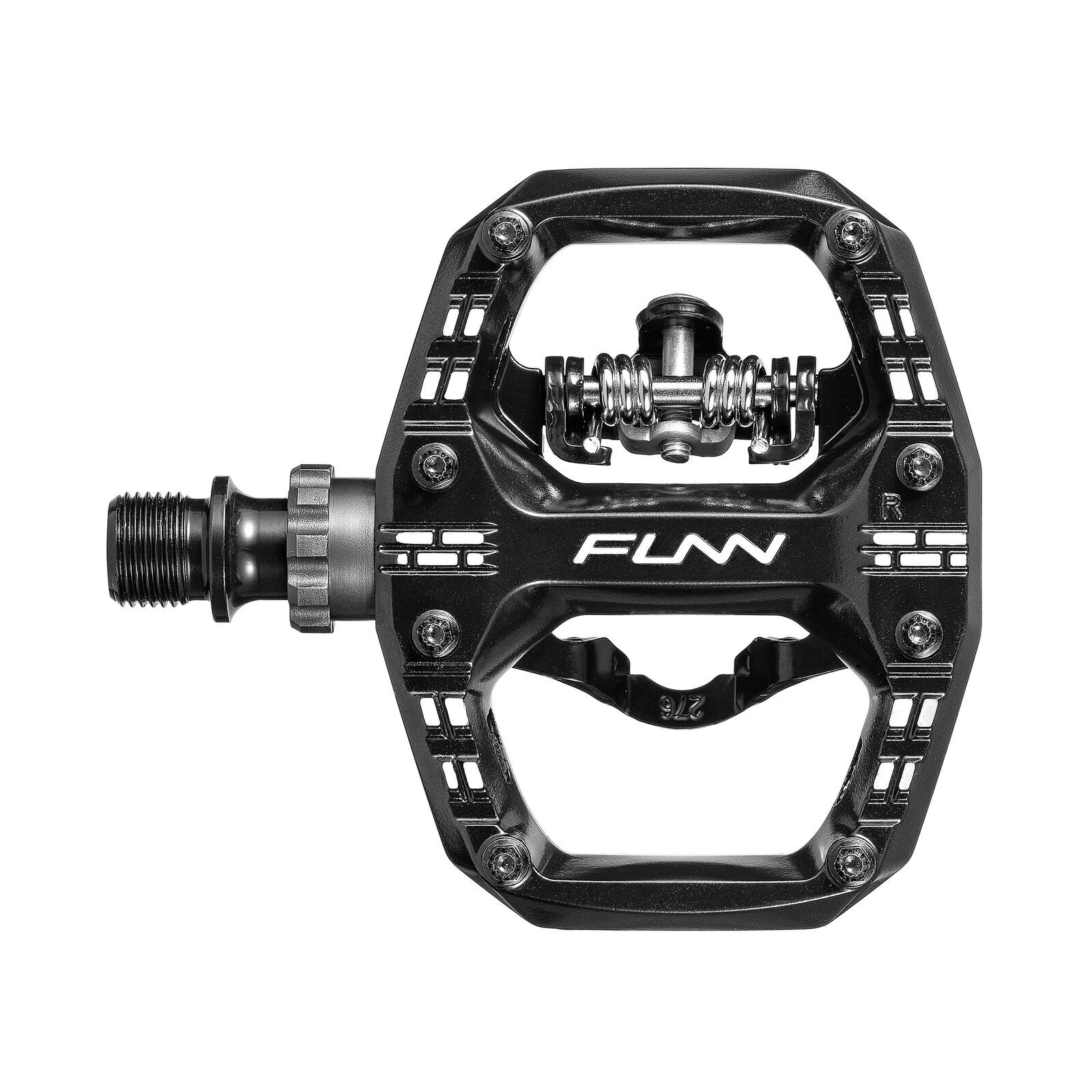

Clip in for the ride, then pedal to the shops in trainers. The Clast has an SPD-compatible mechanism on one face and a pinned flat platform on the other, so one pair of pedals covers trail rides, commuting and touring without a swap.

Highlights

  • SPD-compatible clip on one side, flat platform with eight pins on the other
  • 18° release and 5° float, cleats included
  • Adjustable binding tension
  • ADC10 die-cast aluminium body on a 9/16in CrMo axle
  • Cartridge bearing and full-length bushing
  • 385g a pair

Two pedals in one

Clip in when you want power and connection, or flip to the flat face and ride in ordinary shoes. Release is a predictable 18° with 5° of float, so your heel can move a little without unclipping, and the tension adjustment sets how firmly the cleat is held.

Built to be serviced

The cartridge axle makes axle replacement simple, the clip mechanism can be replaced if it ever wears out, and the pins are removable. FUNN sells clip mechanism and axle replacement kits, and its 4mm and 6mm Mamba / Ripper / Python / Clast pin kits fit. Our workshop can fit and service your pedals as a separate service.

Compatibility & fit

  • SPD-compatible cleats (supplied)
  • Standard 9/16in pedal thread
  • Replacement pins: FUNN 4mm or 6mm Mamba / Ripper / Python / Clast pin kits

Sizes & options

Colour
Black
Pilsner
Raw Silver
This FUNN product is covered against defects in materials and workmanship. Normal wear, crash or impact damage, and damage from incorrect fitting or misuse are not manufacturing defects, and your rights under Australian Consumer Law are not affected. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, FUNN's Australian distributor.
  • Single-sided SPD clip with flat pinned platform
  • ADC10 die-cast alloy body, CrMo axle
  • 18° release, 5° float, cleats included
  • 73 x 92mm platform, 54mm Q factor
  • 385g a pair
PlatformW73 x L92 x H21mm
Q factor54mm
BodyADC10 die-cast aluminium
Axle9/16in CrMo, cartridge bearing and full-length bushing
Weight385g per pair
CleatSPD-compatible, included
Release angle18°
Float5°
Pins8 on the flat side
SKU KWT-P-FN-CLAST
Brand FUNN
Shipping Weight 0.5650kg
Shipping Width 0.120m
Shipping Height 0.100m
Shipping Length 0.150m

More From This Category

$109.99
