FC-M4100-2

SHIMANO DEORE - MTB Crankset - 2-PIECE CRANKSET - 2-PIECE CRANKSET - Q-factor 178.5 mm - Chain Line 48.8 mm - 2x10-speed

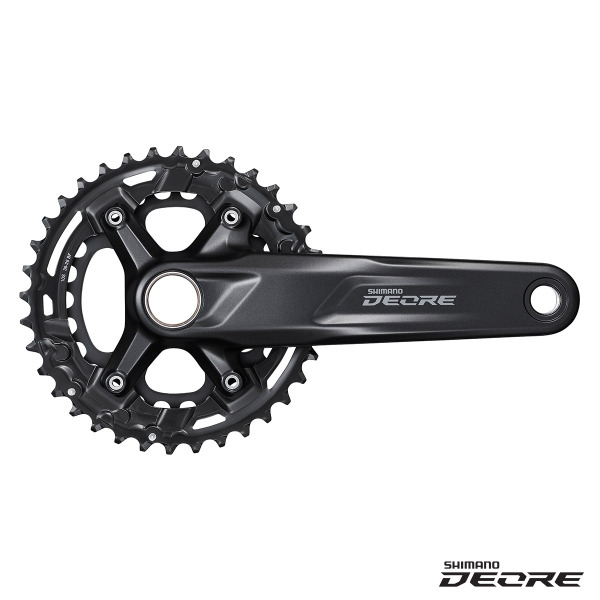

The SHIMANO DEORE FC-M4100-2 mountain bike crank delivers precise and reliable shifting for 2x10-speed drivetrains. This 2-piece crank offers a 36-26T gear combination and a 48.8 mm chainline.

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • 2-PIECE CRANKSET increases rigidity of crankset with less weight and transmits pedaling force efficiently
  • Extra wide range
  • MODEL NO: FC-M4100-2
  • DEORE M4100 Series
  • Series Color
  • 2-PIECE CRANKSET
  • Chain line: 48.8(mm)
  • Chainring combination: 36-26T
  • Compatible bottom bracket type Outboard
  • Compatible chain: HG-X 10-speed
  • Crank fixing bolt included
  • Crank arm length: 170(mm)
  • Crank arm length: 175(mm)
  • Spider/Gear arms: 4
  • Optional chain guard Without chain/bash guard
  • P.C.D: 96/64(mm)
  • Rear speeds: 10
  • Recommended bottom bracket Press-fit: BB-MT500-PA
  • Recommended bottom bracket Threaded (normal): SM-BB52
  • Threaded bottom bracket shell width (mm) 68
  • Threaded bottom bracket shell width (mm) 73
  • Q-factor: 178.5(mm)
  • Chain line: 48.8(mm)
  • Compatible chain: HG-X 10-speed
  • P.C.D: 96/64
  • Rear speeds: 10
  • O.L.D. QR/Nut: 135(mm)
  • O.L.D. QR/Nut: 142(mm)
SKU SHM-EFCM41002CX66
Barcode # 4550170621131
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
