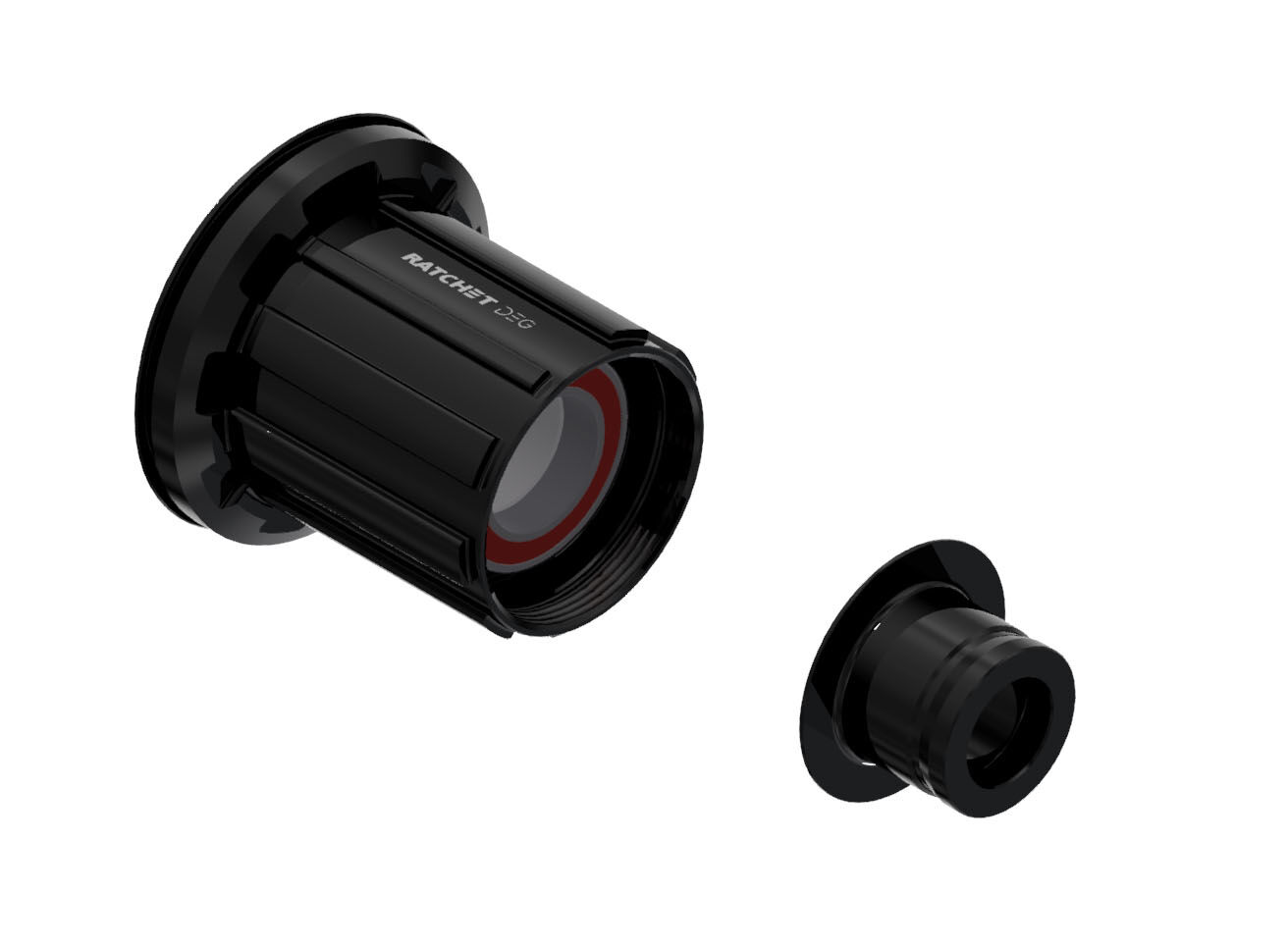

Run the cassette you want on your DT Swiss hub. This is the Shimano / SRAM HG freehub body for the Ratchet DEG system, supplied as a complete kit with the drive-side end cap so it drops straight onto a mountain bike hub.

Highlights

  • Shimano / SRAM HG driver — runs Shimano HG and SRAM road/MTB cassettes.
  • Ratchet DEG — matched to the newest DT Swiss 240 and 350 MTB (Boost) hubs.
  • Kit, not just the body — includes the 12×148 Boost drive-side end cap.
  • Aluminium body — the standard DT Swiss alloy freehub.

Will it fit?

Ratchet DEG (Degressive) uses two enlarged steel ratchets for the smallest engagement angle DT Swiss makes. Its freehub interface is a larger diameter, so a DEG body fits DEG hubs only — not older Ratchet or EXP hubs. Use this body with the newest DT Swiss 240 and 350 MTB (Boost) hubs. It is set up for 12×148 Boost spacing. Changing cassette standard also means matching the drive-side end cap, which is why DT Swiss sells these as kits. If you are not certain which ratchet system your hub uses, ask us before ordering.

Covered by DT Swiss's manufacturer warranty against defects in materials and workmanship. If you ever have a warranty concern, return the part to Tune Cycles and we'll handle it with the distributor on your behalf.

  • Ratchet DEG freehub body
  • Shimano / SRAM HG driver — fits Shimano HG and SRAM road/MTB cassettes
  • 12×148 Boost thru-axle, drive-side end cap included
  • Aluminium freehub body
  • Supplied as a complete kit (body + end cap)
  • Compatible with the newest DT Swiss 240 and 350 MTB (Boost) hubs
BrandDT Swiss
Ratchet systemRatchet DEG
Cassette / driverShimano / SRAM HG
Cassette speeds8–11-speed
Axle / spacing12×148 Boost
Body materialAluminium
Drive-side end capIncluded
Fits hubsthe newest DT Swiss 240 and 350 MTB (Boost) hubs
Manufacturer part no.HWYABL00S2786S
SKU APO-HWYABL00S2786S
Barcode # 7613052413754
Brand DT Swiss
