DT Swiss Star Ratchet Freehub Body — Shimano / SRAM HG, Road 12×142
SKU code: APO-HWYABL00S5708S

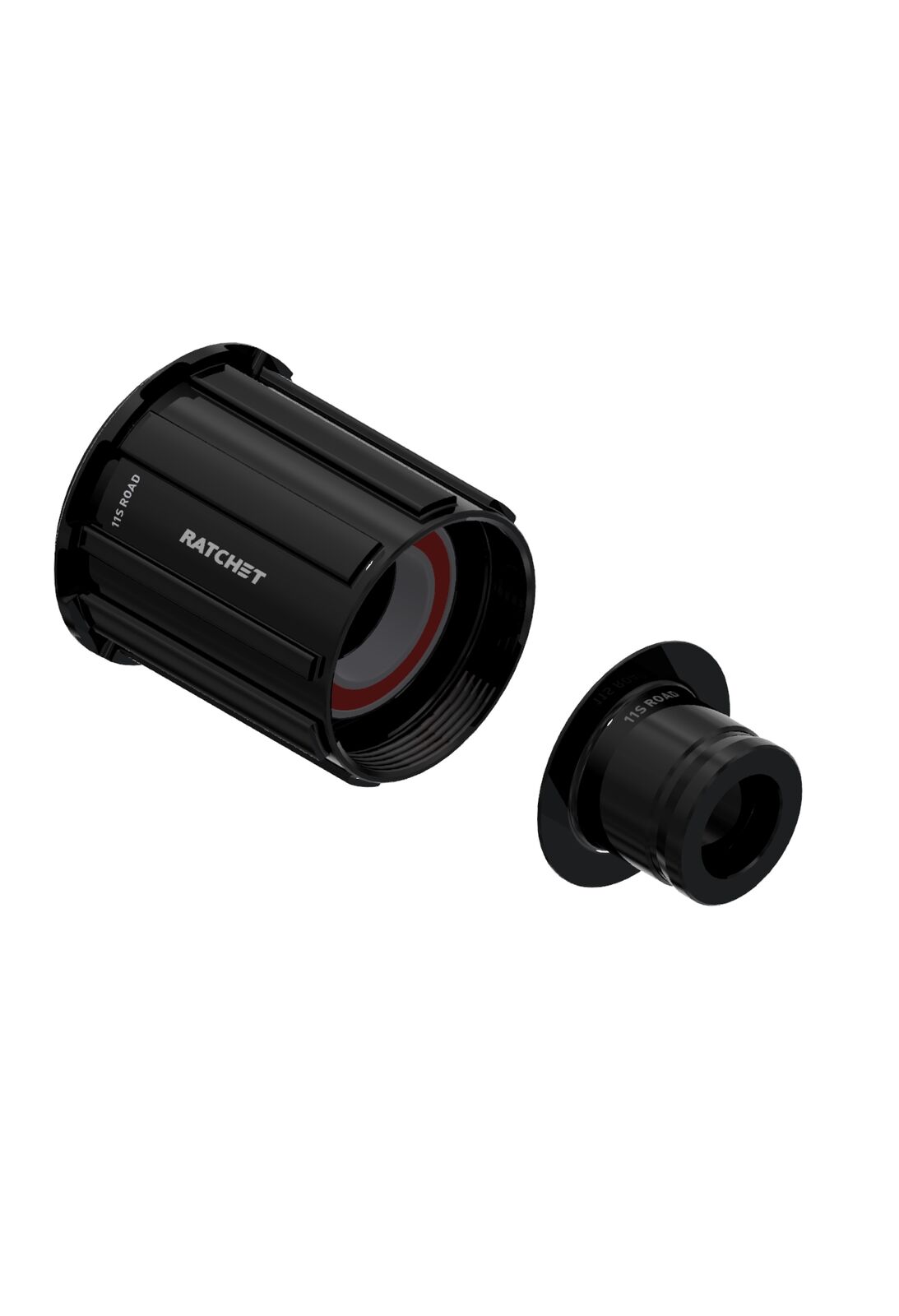

Run the cassette you want on your DT Swiss hub. This is the Shimano / SRAM HG freehub body for the Ratchet System (Star Ratchet) system, supplied as a complete kit with the drive-side end cap so it drops straight onto a road hub.
Highlights
- Shimano / SRAM HG driver — runs 11-speed Shimano and SRAM road cassettes.
- Ratchet System (Star Ratchet) — matched to DT Swiss 240, 350 and 440 Star Ratchet hubs.
- Kit, not just the body — includes the 12×142 drive-side end cap.
- Aluminium body — the standard DT Swiss alloy freehub.
Will it fit?
The classic two-piece Star Ratchet shares one freehub interface across the 240, 350 and 440 — engagement (18, 36 or 54 tooth) is set by the ratchet rings inside the hub, not by the body. Use this body with DT Swiss 240, 350 and 440 Star Ratchet hubs. It is set up for 12×142 spacing. Changing cassette standard also means matching the drive-side end cap, which is why DT Swiss sells these as kits. If you are not certain which ratchet system your hub uses, ask us before ordering.
Covered by DT Swiss's manufacturer warranty against defects in materials and workmanship. If you ever have a warranty concern, return the part to Tune Cycles and we'll handle it with the distributor on your behalf.
- Ratchet System (Star Ratchet) freehub body
- Shimano / SRAM HG driver — fits 11-speed Shimano and SRAM road cassettes
- 12×142 thru-axle, drive-side end cap included
- Aluminium freehub body
- Supplied as a complete kit (body + end cap)
- Compatible with DT Swiss 240, 350 and 440 Star Ratchet hubs
| Brand | DT Swiss |
| Ratchet system | Ratchet System (Star Ratchet) |
| Cassette / driver | Shimano / SRAM HG |
| Cassette speeds | 11-speed road |
| Axle / spacing | 12×142 |
| Body material | Aluminium |
| Drive-side end cap | Included |
| Fits hubs | DT Swiss 240, 350 and 440 Star Ratchet hubs |
| Manufacturer part no. | HWYABL00S5708S |
| Fits these DT Swiss hubs |
|---|
| DT Swiss 350 Rear Hub 12/142 Centrelock Shimano HG 11sp 24H |
| DT Swiss 350 Rear Hub 12/142 Centrelock Shimano HG 11sp Road 24H |
| DT Swiss 350 Rear Hub 24H J-Bend |
Per DT Swiss's spare-parts list for each hub.
| SKU | APO-HWYABL00S5708S |
| Barcode # | 7613052392196 |
| Brand | DT Swiss |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.060m |
| Shipping Length | 0.220m |
