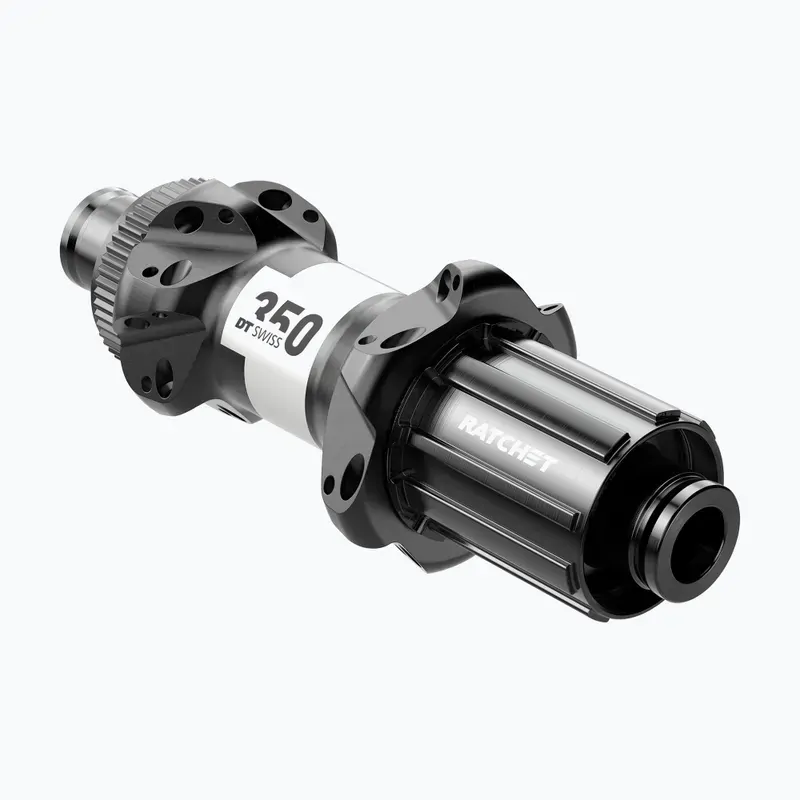

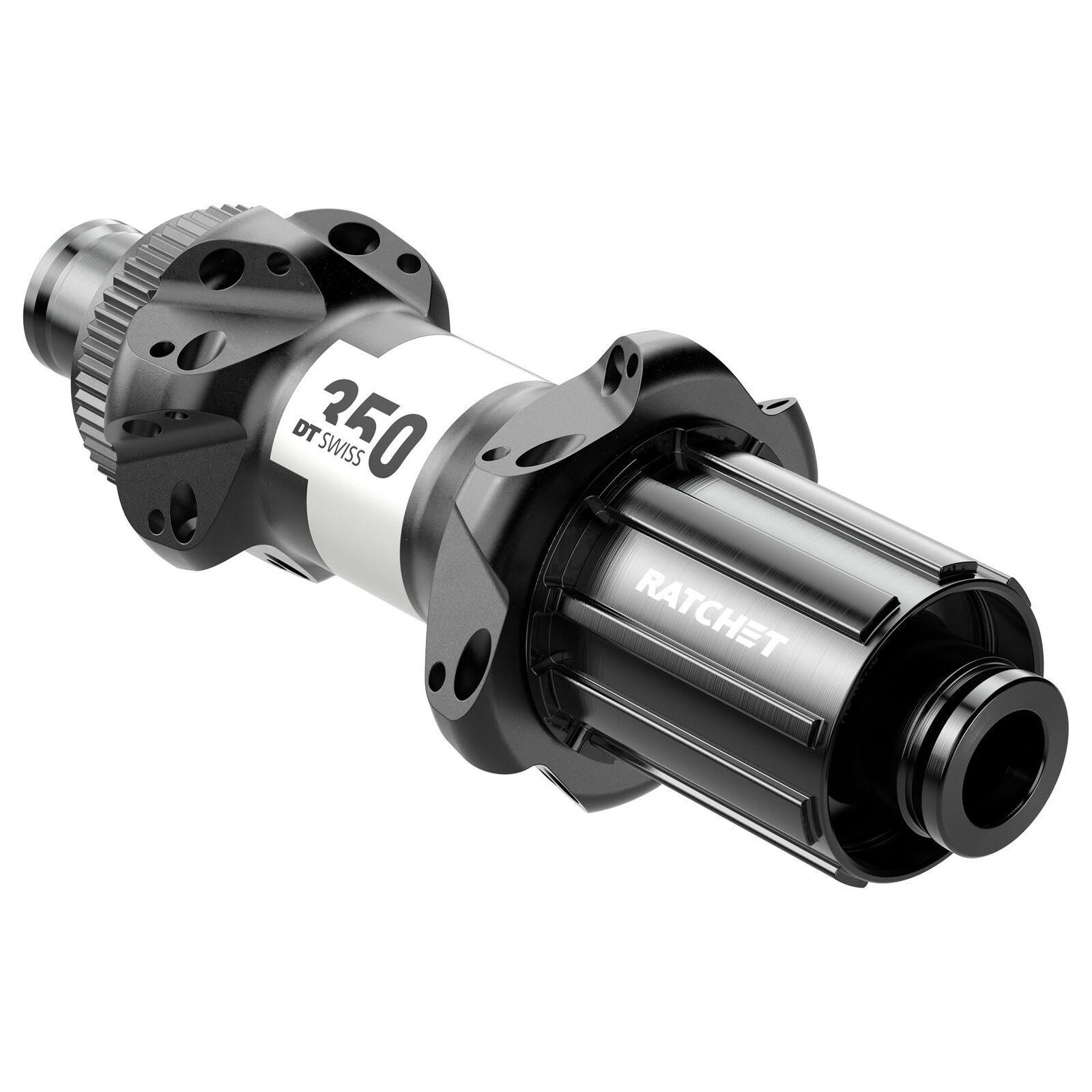

DT Swiss 350 Road Rear Hub - 142/12mm, 24H, Center Lock, Shimano 11-Speed
SKU code: APO-DTH350-028
The DT Swiss 350 is the mid-range workhorse rear hub, delivering dependable engagement and easy serviceability for everyday road riding. This version runs a 142/12mm thru-axle with a Shimano 11-speed road freehub and Center Lock rotor mount.
Highlights
- Proven 350 mid-range workhorse platform
- Ratchet System with 36t (10°) engagement
- Upgradeable to a 54t ratchet for faster pickup
- Steel bearings for reliable, low-maintenance service
- 142/12mm road thru-axle spacing
- Center Lock rotor mount
Ratchet System
The 350 uses the DT Swiss Ratchet System with a 36-tooth ring for 10° engagement. Both ratchets engage fully under load for reliable power transfer, and the system can be upgraded to a 54-tooth ratchet for quicker engagement.
Compatibility & fit
Rear position, 142/12mm thru-axle, 24 spoke holes, Center Lock rotor mount, Shimano freehub for 11-speed road cassettes.
DT Swiss spare parts for this hub
The parts DT Swiss lists for this hub, with DT part numbers. Parts marked ask us are special order.
Bearing service kit: DT Swiss Hub Bearing Kit 2× 6902 (15×28×7 mm) + Seal & Grease — the hub bearings for this hub in DT's quantities.
| Part | DT part no. | Qty in hub |
|---|---|---|
| RW adapter KIT 142/ Ø12mm | HWGXXX0003525S | 1 |
| Conversion kit — freehub body | HWYABL00S5708S | 1 |
| Service Kit Rear Hub with Ratchet System 36T SL | HWTXXX00NSK36S | 1 |
| DT Swiss special grease 20 gr | HXT10032508S | 1 |
| Spacer Ø15/18x15.4mm | HCDXXX00S1077S | 1 |
| Seal hub/rotor (Ø30x36x2.5mm) | HSOXXX00N1031S | 1 |
| Ring nut, steel M34x1mm | HXDXXX00N1131S | 1 |
| Shim ring DIN 988 Ø28/20x0.5mm | HCDXXX00S1083S | 1 |
| Ball bearing Ø 15/28x7mm 6902 | HSBXXX00N2336S | 2 |
| axle aluminium 130/135mm, Ø15mm / 42.1mm | HCCXXX00S2216S | 1 |
Conversion kits
| Convert to | Parts needed (DT part no.) |
|---|---|
| Campagnolo N3W 12/142 mm | Freehub body Conversion kit (HWYABL00S2992S) |
| Shimano Micro Spline Road 12/142 mm | Freehub body Conversion kit (HWYABL00S1961S) |
| SRAM XDR 05/135 mm | Freehub body Conversion kit (HWYABX00S8883S) |
| SRAM XDR 12/142 mm | Freehub body Conversion kit (HWYAAX00S8888S) |
Exploded view, manuals and service videos: DT Swiss support page for this hub.
DT Swiss covers this hub with a 24-month warranty against material and manufacturing defects from the date of purchase. Normal wear items, including bearings and freehub bodies, are not covered. The DT Swiss crash-replacement (Fair Share) programme applies to carbon rims only and does not apply to this product.
For any warranty support, please return the item to Tune Cycles and our team will handle the claim on your behalf.
- Position: rear
- Discipline: road
- Ratchet System, 36t (10°), upgradeable to 54t
- Steel bearings
- 142/12mm thru-axle
- 24H spoke count
- Center Lock rotor mount
- Shimano freehub (11-speed road)
| Brand | DT Swiss |
| Model | 350 |
| Position | Rear |
| Discipline | Road |
| Brake interface | Center Lock |
| Axle | 142/12mm |
| Hole count | 24H |
| Freehub body | Shimano 11-speed road |
| Engagement | Ratchet System 36t (10°), upgradeable to 54t |
| Bearings | Steel |
| Colour | Black |
| SKU | APO-DTH350-028 |
| Barcode # | 7613052322018 |
| Brand | DT Swiss |
| Shipping Weight | 0.3500kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.060m |
| Shipping Length | 0.220m |
