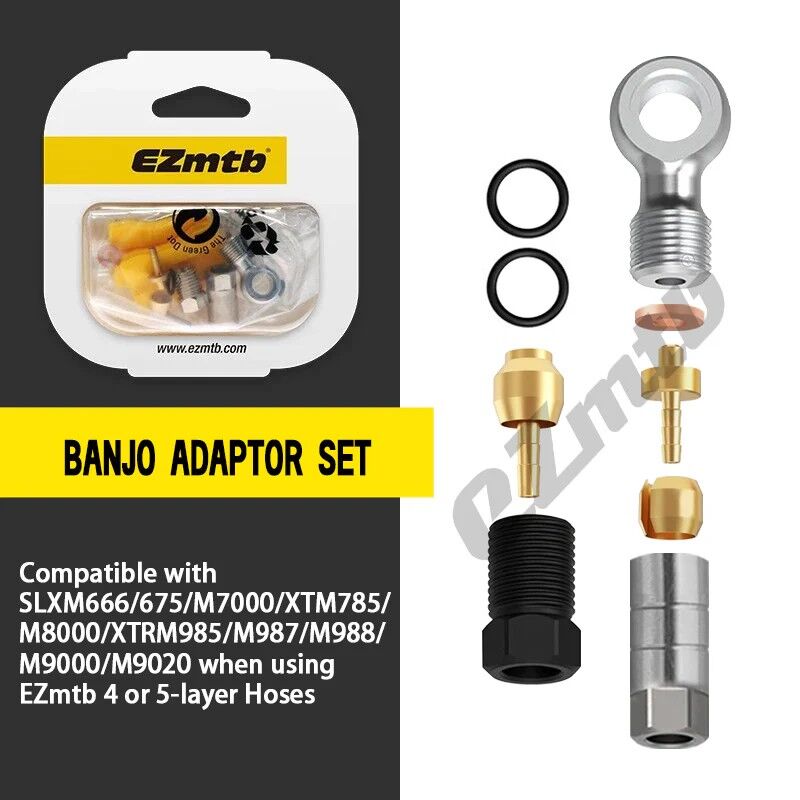

The BH90 banjo kit made for EZmtb's braided 4- and 5-layer hose, sealed to stop oil escaping into the stainless steel braiding.

Highlights

  • Brake hose end kit for EZmtb 4- or 5-layer hose
  • Shimano BH90 banjo style: one straight end, one banjo end
  • Higher sealing performance stops oil leaking into the braiding layer
  • Barbed inserts suit 2.1mm ID hose
  • Plastic hose clamp block included

Why a dedicated kit

EZmtb's 5-layer hose has a stainless steel braid under its outer casing. This kit's higher sealing performance stops oil from leaking into that braiding layer, which a standard fitting may not do.

Compatibility & fit

For EZmtb 4- or 5-layer hydraulic hose run as a Shimano BH90 setup with one straight end and one banjo end. Our workshop can install braided hose and bleed your brakes as a separate service.

Covered against manufacturing defects under EZmtb's standard warranty terms. For warranty support, return the product to Tune Cycles and we'll manage the claim with KWT Imports, EZmtb's Australian distributor.
  • Brake hose end kit for EZmtb 4- or 5-layer hose
  • Shimano BH90 banjo style: one straight end, one banjo end
  • Higher sealing performance stops oil leaking into the braiding layer
  • Barbed inserts suit 2.1mm ID hose
  • Plastic hose clamp block included
Hose typeEZmtb 4-layer or 5-layer hydraulic hose
StyleShimano BH90: one straight end, one banjo end
Hose ID2.1mm
IncludesBarbed inserts, plastic hose clamp block
SKU KWT-EZMTB-BA1029
Brand EZMTB
Shipping Weight 0.1500kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
