ENVE SES 4.5 Disc Road Carbon 24H Rimset 700C
SKU code: GSP-NV-SES45-700C-RIMS

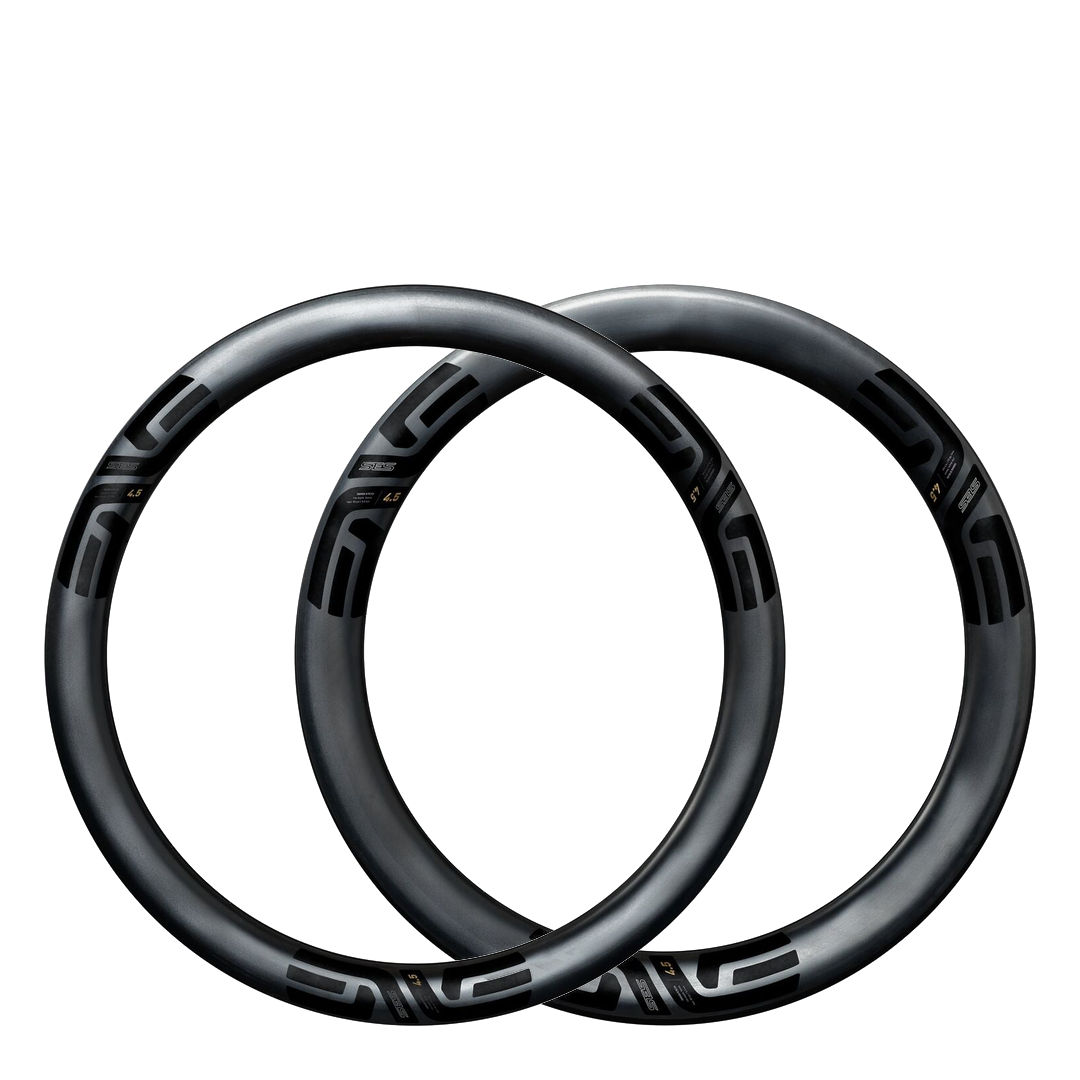

ENVE SES 4.5 rim set, 24H, 700C
An ENVE SES 4.5 front rim (50 mm deep) and rear rim (56 mm deep) packed as one set: the rim pair inside our hand-built ENVE road wheelsets, and the same pair on its own for your own build. For fast road riding on any surface — the SES 4.5 was first drawn up for the cobbles and crosswinds of Paris-Roubaix.
Special order: ENVE rims come from ENVE's Australian distributor, usually in about 7 days; we confirm the dispatch date by email when you order.
What is in the box
- ENVE SES 4.5 front rim, 50 mm, 24H
- ENVE SES 4.5 rear rim, 56 mm, 24H
- Rims only: ENVE sells the rim without nipples, tape or valves. For your own build you need ENVE's brass internal nipples (one 24-pack per rim; ENVE's moulded nipple seat takes nothing else) and ENVE valves (66 mm front / 72 mm rear).
The rim
- 25 mm internal, 32 mm external, 50 mm front / 56 mm rear deep
- Hookless carbon, tubeless only: ENVE aero-optimises the SES 4.5 for 27–28 mm tyres; the minimum labelled tyre is 27 mm; max 80 psi (5.5 bar) at the 27 mm minimum tyre
- 24 spoke holes, ERD 558 mm front / 547 mm rear; weight 411 g front / 415 g rear (ENVE's figures)
- Tape: 29 mm tubeless tape; valves 66 mm front / 72 mm rear (ENVE's recommendation)
- ENVE's spoke chart: 120 kgf (about 1,180 N) on the front disc side and the rear drive side
Warranty
ENVE rims carry ENVE's lifetime warranty against manufacturing defects for the original owner (5 years for a second owner), plus ENVE's crash replacement programme for accidental damage. ENVE requires its own nipples for the rim warranty. Any claim comes back to Tune Cycles: bring the rim to Marrickville or contact us with your order number.
ENVE rims carry ENVE's lifetime warranty against manufacturing defects for the original owner (5 years for a second owner), plus ENVE's crash replacement programme for accidental damage. ENVE requires its own nipples for the warranty. Any claim comes back to Tune Cycles: bring the rim to Marrickville or contact us with your order number and we handle it with ENVE. Wear, corrosion and incorrect fitting are not covered.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
- ENVE SES 4.5 front + rear rim, 24H, 700C
- 25 mm internal, 50 mm front / 56 mm rear deep, hookless carbon
- Tubeless only: ENVE aero-optimises the SES 4.5 for 27–28 mm tyres; the minimum labelled tyre is 27 mm
- ERD 558 mm front / 547 mm rear; 411 g front / 415 g rear
- Rims only: ENVE internal nipples and 66 mm front / 72 mm rear valves listed separately
- The rim pair in our hand-built ENVE road wheelsets; sold here on its own too
- ENVE lifetime warranty (original owner) + crash replacement
| Specification | Value |
|---|---|
| Rims | ENVE SES 4.5 front + rear |
| Diameter | 700C |
| Spoke holes | 24H |
| Material | Carbon |
| Internal / external width | 25 mm / 32 mm |
| Rim depth | 50 mm front / 56 mm rear |
| ERD | 558 mm front / 547 mm rear |
| Weight | 411 g front / 415 g rear |
| Tyre interface | hookless, tubeless-ready tyres only |
| Tyres | ENVE aero-optimises the SES 4.5 for 27–28 mm tyres; the minimum labelled tyre is 27 mm; max 80 psi (5.5 bar) at the 27 mm minimum tyre |
| Tape | 29 mm |
| Valves | 66 mm front / 72 mm rear (ENVE) |
| Nipples | ENVE brass internal, sold separately (24-pack per rim) |
| Spoke tension | 120 kgf (ENVE spoke chart) |
| In the box | Rims only |
| Warranty | ENVE lifetime (original owner) + crash replacement, claims via Tune Cycles |
| SKU | GSP-NV-SES45-RIMSET |
| Brand | ENVE |
| Shipping Weight | 0.7000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.080m |
| Shipping Length | 0.700m |
