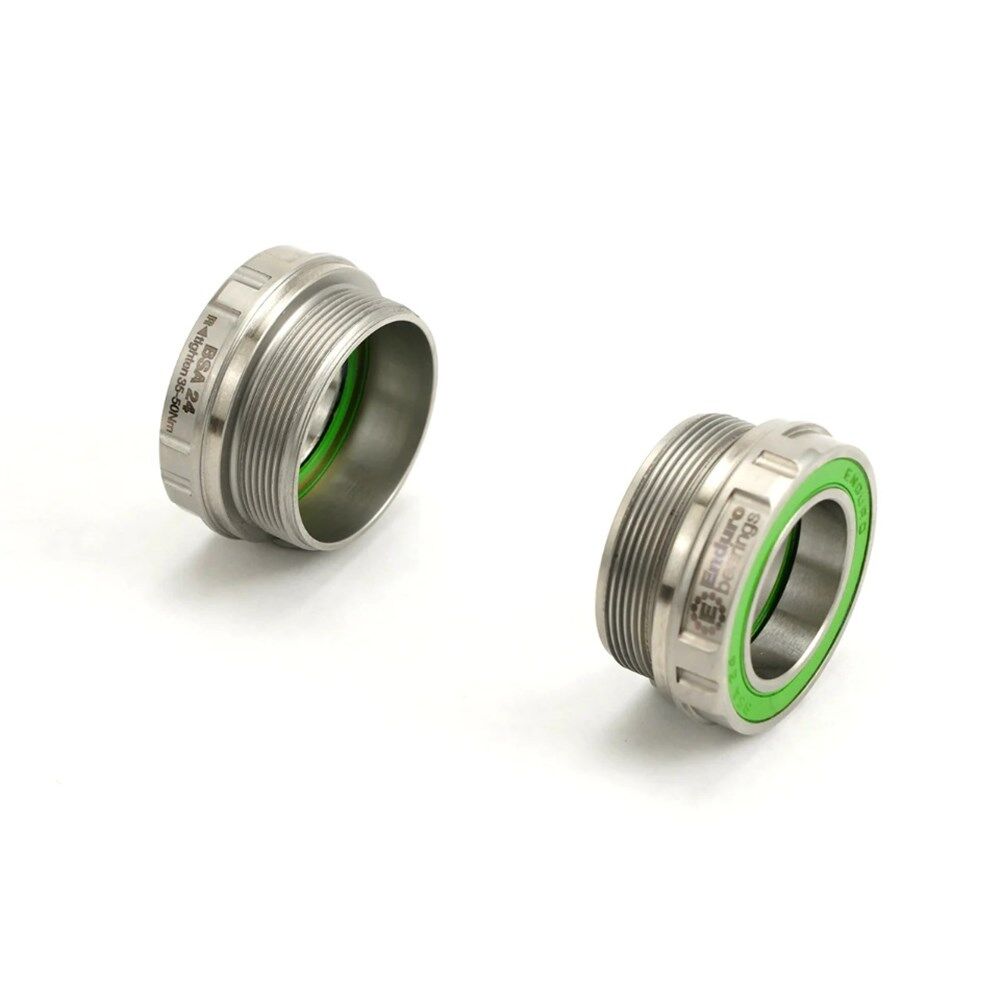

Enduro's Maxhit makes the bearing the bottom bracket. The 440C stainless steel bearings thread straight into your BSA threaded shell with no aluminium cups to carry them, freeing up room for much larger balls and, by Enduro's figures, more than double the load capacity of aluminium-cup bottom brackets.

Highlights

  • Patented Maxhit design: the bearing threads directly into the frame
  • No aluminium cups, so fewer mating parts to creak
  • Much larger balls for more than double the load capacity of aluminium-cup bottom brackets (Enduro's figure)
  • Machined and ground entirely from 440C stainless steel
  • Proprietary double-lip groove seals and Enduro's extra high-pressure grease
  • Full selection of seals and spacers for any BSA threaded bike
  • Limited Lifetime Warranty, kept valid by an annual service

Why Maxhit is different

Maxhit is Enduro's patented design in which the bearing is a single component that threads directly into the bike's bottom bracket shell. Doing away with the aluminium cups that normally carry the bearings removes the mating parts that can creak, and the space saved goes into much larger balls. The bearings are machined and ground entirely from 440C stainless steel, and the kit includes a full selection of seals and spacers so it installs properly in any BSA threaded bike.

Servicing & rebuilds

Maxhit bottom brackets must be cleaned and re-greased periodically to keep the warranty, and Enduro's warranty terms call for a yearly service by a qualified mechanic using Enduro Speed Grease (GR-011). Our workshop can fit your Maxhit as a separate service and look after the annual service too.

Tools Enduro lists for installation: the BBT-41x16-24 Pro Cup socket (41mm × 16-spline, Shimano / 24mm cranks), the BBT-036 flat wrench, the BBT-001/B Shimano crank bolt tool and Enduro MAX grease (GR-009).

For servicing, Enduro sells the BRK-BKSM 24 rebuild kit for 24mm Maxhit bottom brackets.

Compatibility & fit

  • Frame: BSA threaded bottom bracket shell
  • Crankset: Shimano / 24mm spindle cranksets
  • Check your frame's shell standard and your crank's spindle before ordering, or ask our workshop to confirm the fit.
Enduro covers Maxhit bottom brackets with a Limited Lifetime Warranty against corrosion, wear and manufacturing defects throughout the product's expected service life, for the original owner with proof of purchase. Maxhit bottom brackets must be serviced every year by a qualified mechanic, cleaned and re-greased with Enduro Speed Grease (GR-011), or the warranty is void. Damage from improper installation, or from dirt intrusion and contamination, isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Lusty Industries, Enduro Bearings' Australian distributor.
  • Patented Maxhit cupless design
  • Bearings thread directly into the shell
  • Much larger balls, more than double the load capacity of aluminium-cup BBs
  • Machined and ground 440C stainless steel
  • Double-lip groove seals
  • Seals and spacers included
  • Limited Lifetime Warranty with annual servicing
Enduro part numberBKSM-8112
TypeMaxhit bottom bracket kit, bearings thread directly into the shell
Frame shellBSA threaded bottom bracket shell
Crank spindleShimano / 24mm
Bearings440C stainless steel, machined and ground
SealsProprietary double-lip groove seals
IncludedBearings, seals and spacers
SKU LUS-EBBBBKSM8112
Barcode # 195947000791
Brand Enduro Bearings
Shipping Weight 0.1200kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
