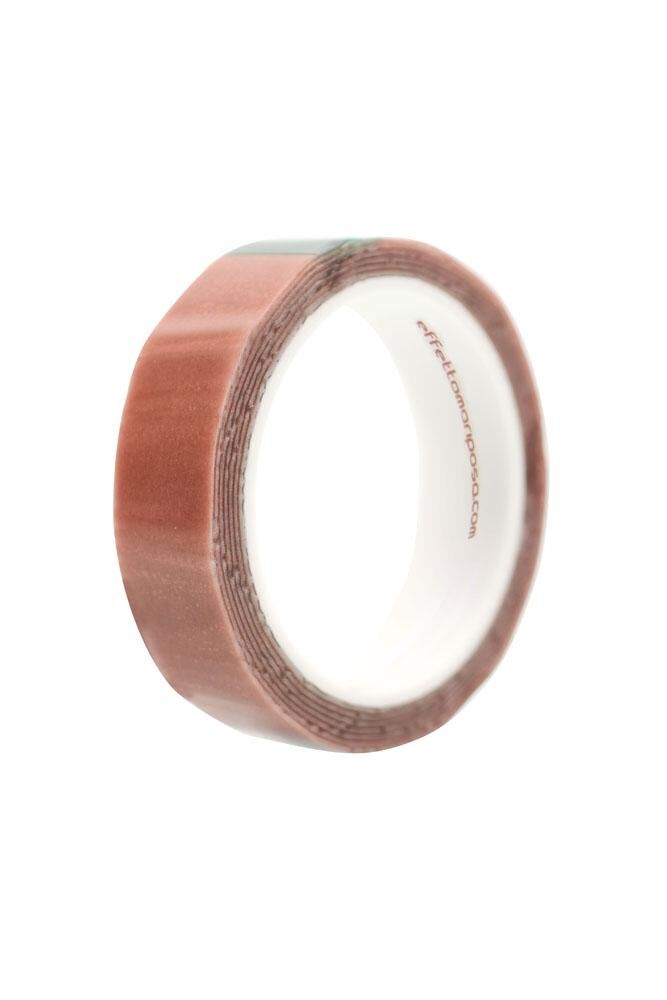

Carogna is a fast, clean and safe way to glue tubulars. Effetto Mariposa developed it to match the adhesion and heat resistance of the best mastics while keeping the convenience of a tape, and it works on road and off-road.
Highlights
- Mastic-level adhesion and heat resistance
- Five to ten minutes to glue a tubular, no drying between coats
- Works on aluminium and carbon rims and any tubular construction
- Removable acrylic glue on the rim side, permanent glue on the tubular side
- Holds at 150°C for hours; rides fine down to -40°C once set
- Four widths to match the rim's gluing channel
Two glues, one tape
On the rim side, an industrial-grade acrylic glue bonds reliably to aluminium and carbon but stays with the tape when the tubular is removed, leaving the rim ready for the next job. On the tubular side, a 1mm layer of high-viscosity permanent glue deforms to the base tape's shape as the tyre is inflated, for full contact across the base tape. It suits nylon, cotton and poly-cotton base tapes, raw, brushed or neoprene-coated.
Setting time and temperature
Glue in a workshop between 21°C and 38°C: adhesion reaches 80% after 8 hours and 99% after 24 hours, and won't develop properly below 10°C. Carogna is pressure-activated, so inflate road tubulars to maximum pressure while it sets; lower-pressure cyclocross tubulars can take longer. Effetto advises against sanding the rim, recommends cleaning with isopropyl alcohol or mineral spirits, and says to use the correct width, trimming any excess.
Compatibility & fit
Match the tape to the rim's gluing channel: S (16.5mm) for 15–18mm channels, SM (20mm) for 18–22mm, M (25mm) for 22–26mm and L (30mm) for 26–32mm. A 2m roll does one wheel; the 16m shop roll does eight. Suits road, cyclocross, gravel and MTB tubulars. Tubular gluing is a separate Tune Cycles workshop service and isn't included.
Options
| Option | Effetto size | Rim gluing channel | Covers |
|---|---|---|---|
| 16.5mm x 2m | S | 15–18mm | 1 wheel |
| 20mm x 2m | SM | 18–22mm | 1 wheel |
| 25mm x 2m | M | 22–26mm | 1 wheel |
| 30mm x 2m | L | 26–32mm | 1 wheel |
| 16.5mm x 16m | S | 15–18mm | 8 wheels (shop roll) |
| 20mm x 16m | SM | 18–22mm | 8 wheels (shop roll) |
| 25mm x 16m | M | 22–26mm | 8 wheels (shop roll) |
| 30mm x 16m | L | 26–32mm | 8 wheels (shop roll) |
- Double-sided tubular gluing tape
- Adhesion and heat resistance to rival mastic
- Clean, fast and odourless
- Aluminium and carbon rims
- Road and off-road, including cyclocross
- Made in Italy
| Type | Double-sided tubular gluing tape |
|---|---|
| Widths | 16.5mm (S), 20mm (SM), 25mm (M), 30mm (L) |
| Roll lengths | 2m (1 wheel), 16m (8 wheels) |
| Rim side | Removable acrylic adhesive |
| Tubular side | 1mm permanent high-viscosity adhesive |
| Application temperature | 21–38°C (no proper adhesion below 10°C) |
| Heat resistance | 150°C for extended periods |
| Made in | Italy |
| SKU | ECH-P-EM-CAROGNA |
| Brand | Effetto Mariposa |
