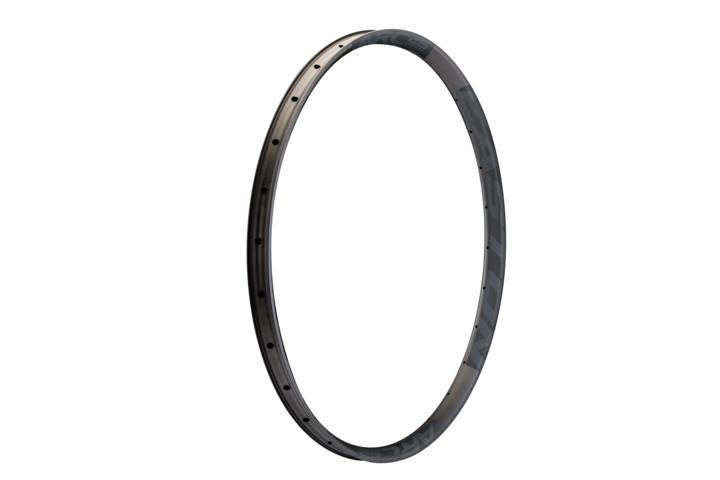

Easton redesigned the ARC Offset rim with an asymmetric profile to balance spoke tension, improving wheel durability and stiffness. A new 6069 alloy gives a better strength-to-weight ratio than the previous ARC and makes the rim noticeably tougher.

Highlights

  • Asymmetric profile with 4.5mm offset
  • 6069 high-strength alloy
  • Tubeless-ready bead
  • 25mm internal, 29mm external width
  • 20mm depth
  • 700c, 28 or 32 hole

Built to be built

The offset drilling evens out spoke tension between the two sides of the wheel, improving wheel durability and stiffness. Easton rates the rim to a maximum spoke tension of 122 kgf (1200 N).

Compatibility & fit

700c, with a 600mm ERD for spoke length calculation. Choose 28 or 32 holes to match your hubs. Wheel building is a separate workshop service at Tune Cycles.

Sizes & options

Spoke holesWheel size
28 hole700c
32 hole700c
Easton warrants this rim against defects in materials and workmanship for the original owner. Wear and tear, including dings or flat spots in aluminium rims, isn't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Ride Fox Australia, Easton's Australian distributor.
  • Asymmetric offset rim
  • 6069 high-strength alloy
  • Tubeless-ready
  • 25mm internal width
  • 700c, 28 or 32 hole
Wheel size700c
Material6069 high-strength alloy
FinishBrushed black anodised, vinyl decals
TypeTubeless-ready clincher
Depth20mm
Offset4.5mm
Internal width25mm
External width29mm
ERD600mm (700c)
Max spoke tension122 kgf / 1200 N
Weight445 g (700c, claimed)
