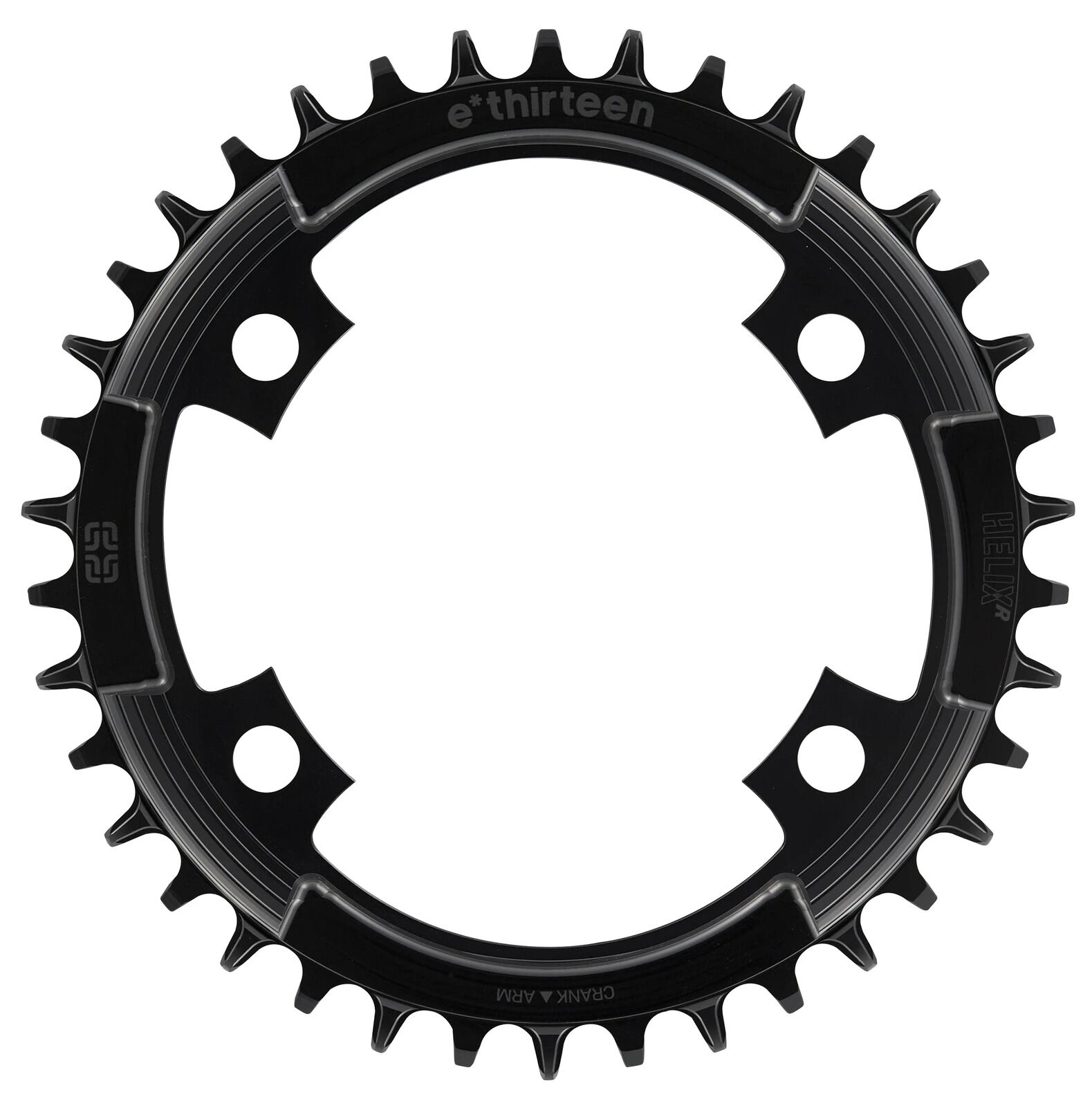

A 4-bolt 107 BCD chainring that bolts straight onto SRAM XPLR and Quarq (Force/Rival) gravel cranks and power meters, adding range without swapping the whole crank.

Highlights

  • 4-bolt, 107 BCD — fits SRAM XPLR cranks and Quarq Force/Rival power meter cranks
  • 7075-T6 aluminium
  • Cross-compatible with SRAM and Shimano 11- and 12-speed drivetrains
  • 45mm chainline on standard-width cranks, 47.5mm on wide cranks
  • 38T, 40T and 42T sizes; Black or Grey

Compatibility & fit

107 BCD, 4-bolt direct mount for SRAM XPLR cranks and Quarq Force/Rival power meter cranks — not for e*thirteen's own direct-mount Helix cranks, which use a different interface. Chainline is 45mm on a standard-width crank or 47.5mm on a wide crank.

Options

TeethColour
42TGrey
40TBlack
e*thirteen covers this product for 10 years against manufacturing and material defects from the date of purchase; crash, impact or misuse damage qualifies for a discounted replacement under e*thirteen's Infinite Ride crash-replacement programme. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with e*thirteen's Australian distributor.
  • 4-bolt 107 BCD for SRAM XPLR / Quarq Force-Rival
  • 7075-T6 aluminium
  • SRAM/Shimano 11/12-speed cross-compatible
  • 45mm or 47.5mm chainline (standard/wide crank)
BCD / bolt pattern107mm, 4-bolt
Material7075-T6 aluminium
DrivetrainSRAM/Shimano 11/12-speed
Chainline45mm (standard crank) or 47.5mm (wide crank)
FitsSRAM XPLR cranks, Quarq Force/Rival power meter cranks
Teeth / Colour42T Grey, 40T Black (see Options)
SKU DTW-ETG-CR4HRA-1-PAR2
Brand e*Thirteen
Shipping Weight 0.2500kg
