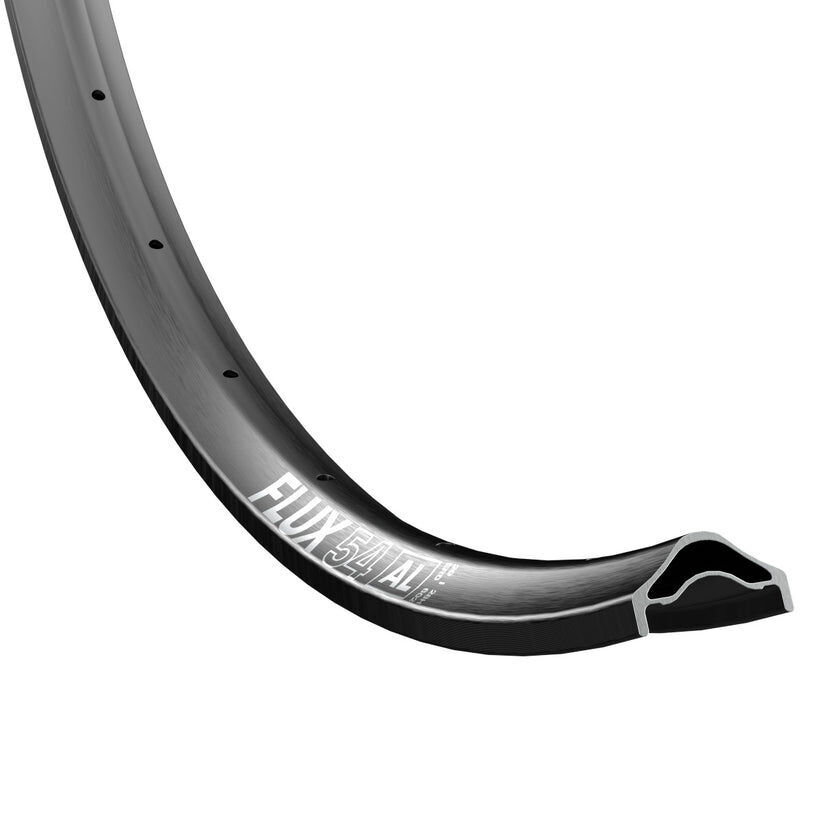

The Flux Pro 54 is e*thirteen's Pro-level all-mountain rim, built to take hits on the way down and still roll efficiently on the way back up.

Highlights

  • 30mm internal width for wide, square tyre support
  • Hookless profile with broad hookless flanges for secure tubeless setup
  • Welded AL-6069 aluminium, Pro-level construction
  • Low-profile (17mm) concave Flux design engineered for extra compliance
  • Rated for eMTB use
  • 28-hole drilling, 29in (ERD 602mm)

Flux compliance profile

Where a conventional rim bows outward, e*thirteen's Flux profile bows inward. e*thirteen rates the low-profile concave shape at up to 33% more angular compliance and 19% more vertical compliance than a best-in-class conventional rim, filtering trail chatter and impacts before they reach the rider's hands.

All-mountain, front or rear

e*thirteen lists the Flux Pro 54 as its primary all-mountain rim, and also as a front-wheel option for enduro builds.

Compatibility & fit

29in wheels only, 28-hole hub lacing, hookless tubeless tyres. e*thirteen's hookless flanges are built for tubeless setup without rim tape stretch; run a tubeless-ready tyre and sealant. The Tune workshop can lace this rim into a complete wheel on your hub of choice.

e*thirteen's Pro aluminium rims carry a lifetime warranty against severe damage such as dents, seam separation and cracked spoke holes, plus a discounted crash replacement policy. For warranty support, return the product to Tune Cycles and we'll manage the claim with e*thirteen's Australian distributor. This is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
  • 30mm internal width, hookless tubeless profile
  • Welded AL-6069 aluminium, Pro-level build
  • 17mm low-profile Flux compliance design
  • 29in, 28-hole
  • eMTB rated
Brande*thirteen
ModelFlux Pro 54
Wheel size29in
Hole count28H
Internal width30mm
Rim depth17mm
ERD602mm
MaterialAL-6069 aluminium, welded
Rim profileHookless
eMTB ratedYes
Weight570g (±5%)
ColourBlack
SKU DTW-ETG-RM5GAA-218
Barcode # 4711280347650
Brand e*Thirteen
Shipping Weight 0.7000kg
Shipping Width 0.700m
Shipping Height 0.080m
Shipping Length 0.700m
